Large Grate Array Panels
Explora Large Grate Array Panels
Our Explora pattern features a modular, industrial design motif that lends itself well to unique applications, such as grated walkways, large tree grate arrays and more.
Select Size:
Detailed Specifications:
- Name / Design
- Explora 36" x 36" PEDESTRIAN LOAD ONLY
- Product ID
- EXX36-36I99
- Dimensions
- 35.94" x 35.94" x 1.25"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 127
- Free Drain Area
- 8.98%
- Gallons Per Minute (GPM)
- 151.97
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 2-007-107
Photo Gallery:
Click image for high-res file and description

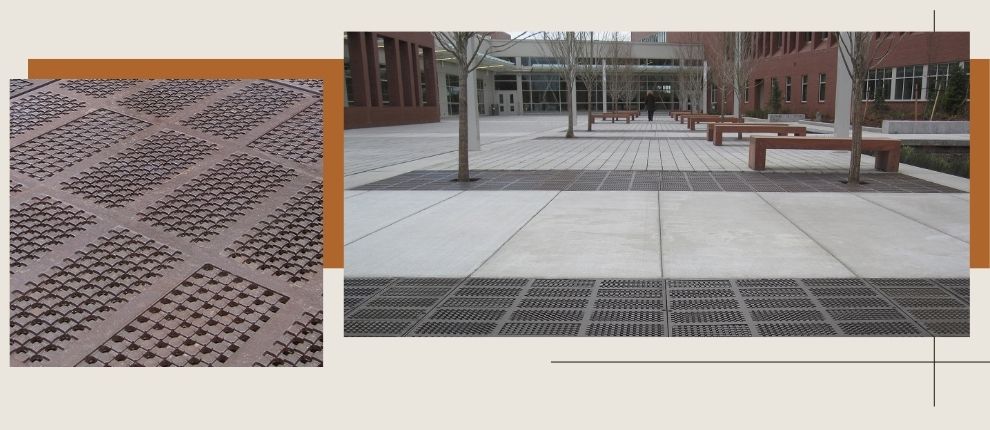

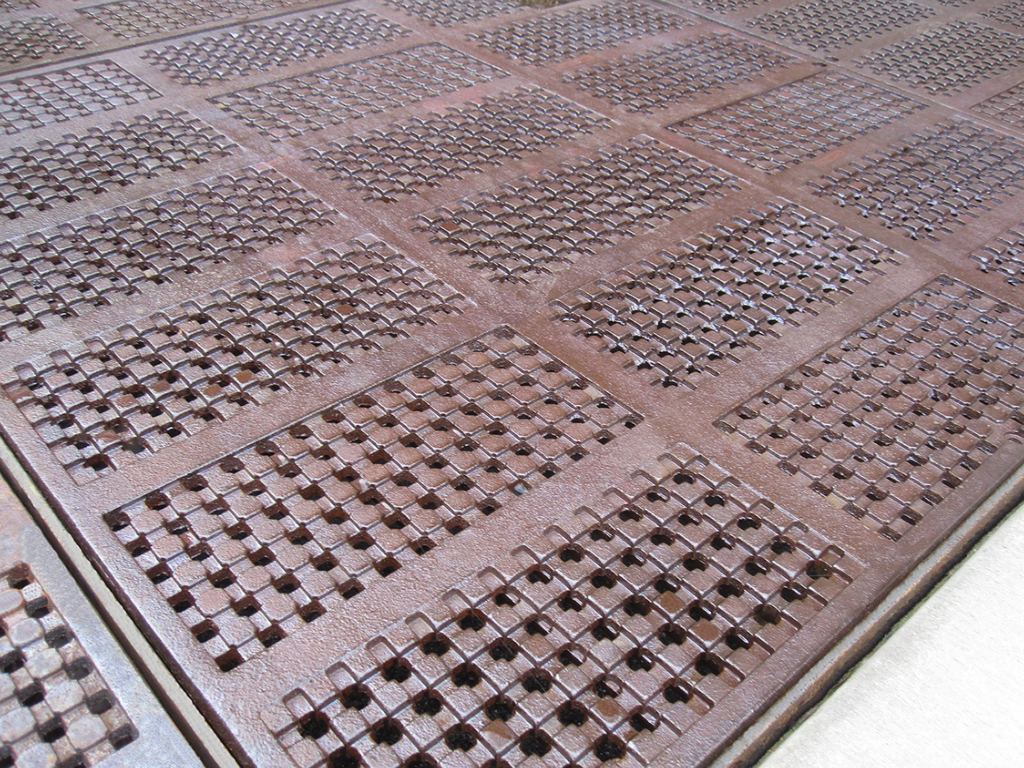

Explora 36″ x 36″ grate panels, cast iron with baked-on-oil finish. Panels were cut and arrayed to form large tree grates. PROJECT: Bellevue High School. LOCATION: Bellevue, WA.

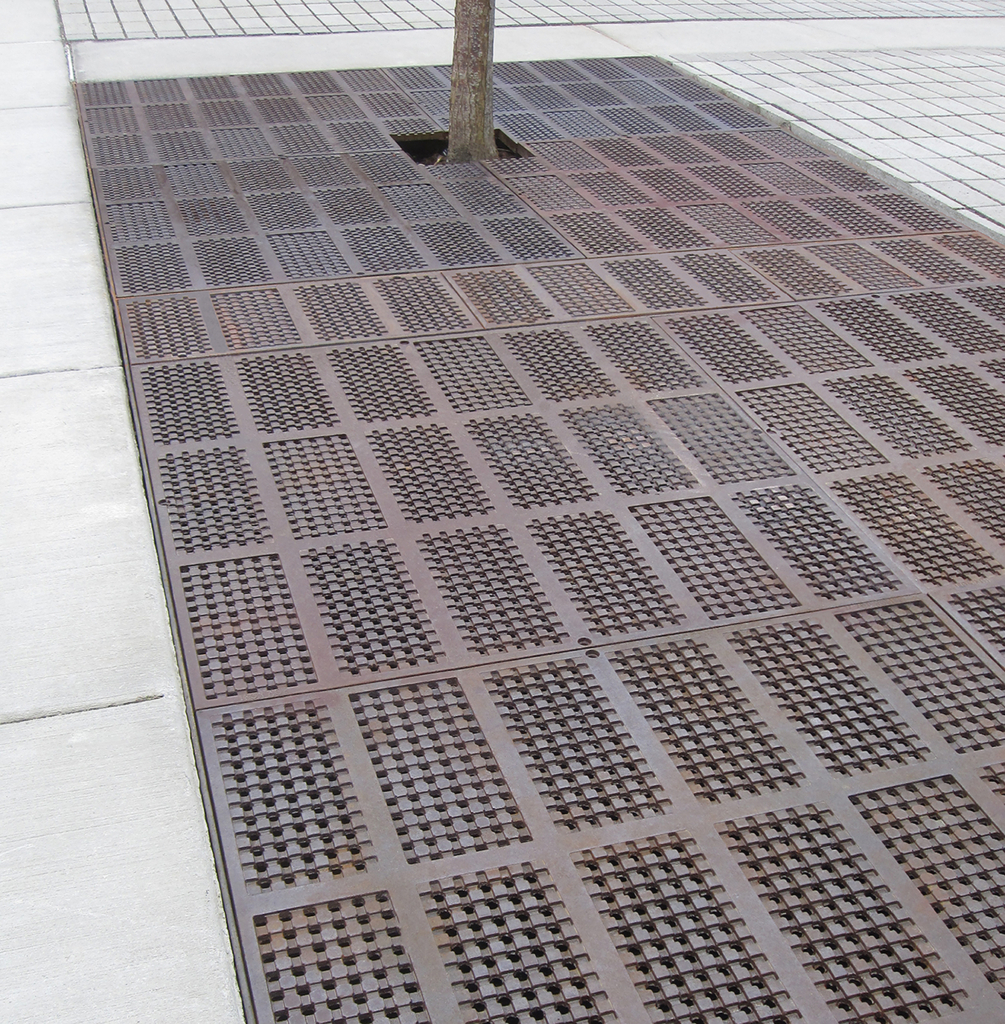

Explora 36″ x 36″ grate panels, cast iron with baked-on-oil finish. Panels were cut and arrayed to form large tree grates. PROJECT: Bellevue High School. LOCATION: Bellevue, WA.
Explora 36″ x 36″ grate panels, cast iron with baked-on-oil finish. Panels were cut and arrayed to form large tree grates. PROJECT: Bellevue High School. LOCATION: Bellevue, WA.
Explora 36″ x 36″ grate panels, cast iron with baked-on-oil finish. Panels were cut and arrayed to form large tree grates. PROJECT: Bellevue High School. LOCATION: Bellevue, WA.
Similar Products:

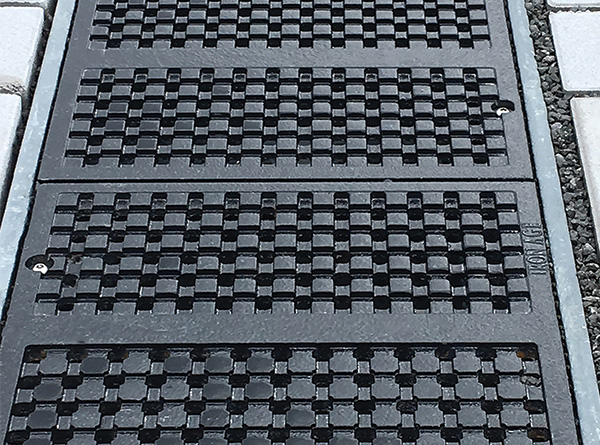

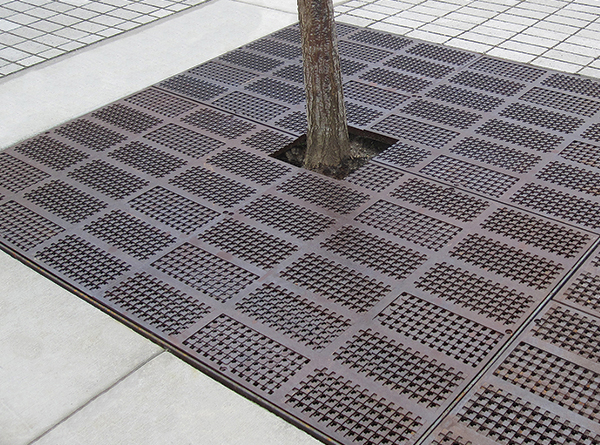

View additional products featuring the Explora design
