Catch Basin Grates
Explora Catch Basin Grates
Our Explora pattern features a modular, industrial design motif that lends itself well to unique applications, such as grated walkways, large tree grate arrays and more.
Select Size:
Detailed Specifications:
- Name / Design
- Explora 30" x 30"
- Product ID
- EXX30-30I99FW
- Dimensions
- 29.92" x 29.92" x .75"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 69.45
- Free Drain Area
- 17.13%
- Gallons Per Minute (GPM)
- 192.89
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
Photo Gallery:
Click image for high-res file and description

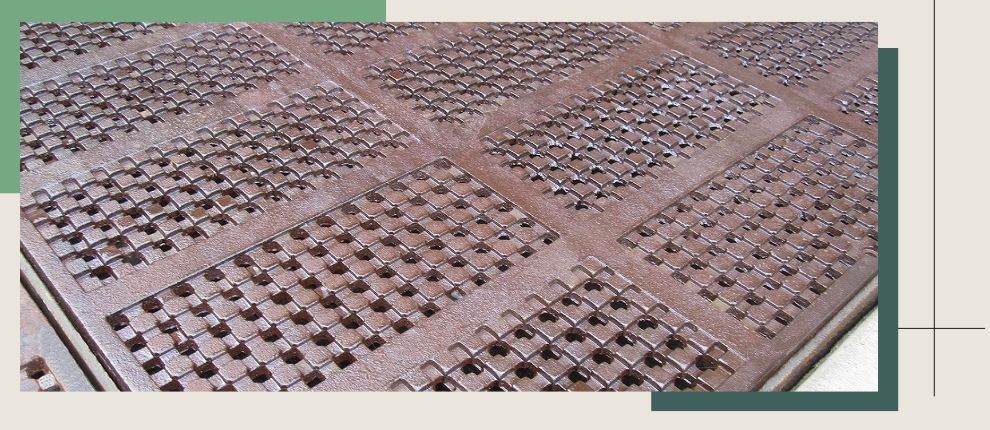

Explora 36″ x 36″ grate panels, cast iron with baked-on-oil finish. Panels were cut and arrayed to form large tree grates. PROJECT: Bellevue High School. LOCATION: Bellevue, WA.
Explora 36″ x 36″ grate panels, cast iron with baked-on-oil finish. Panels were cut and arrayed to form large tree grates. PROJECT: Bellevue High School. LOCATION: Bellevue, WA.
Explora 36″ x 36″ grate panels, cast iron with baked-on-oil finish. Panels were cut and arrayed to form large tree grates. PROJECT: Bellevue High School. LOCATION: Bellevue, WA.
Explora 36″ x 36″ grate panels, cast iron with baked-on-oil finish. Panels were cut and arrayed to form large tree grates. PROJECT: Bellevue High School. LOCATION: Bellevue, WA.
Similar Products:
View additional products featuring the Explora design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
