Trench Grates
River Rock Trench Grates
Reminiscent of smooth stones tumbling in a stream, our beautifully sculpted River Rock pattern adds a natural element to the hardscape environment.
Select Size:
Detailed Specifications:
- Name / Design
- River Rock 5" x 20"
- Product ID
- RRA5-20I21
- Dimensions
- 4.84" x 19.47" x .81"
- Drain Manufacturer
-
ABT®ACO™Anrin™MEA®
- Fits
-
ABT® PolyDrain®
ACO™ K100, K100S, KS100
Anrin™ KE-100 Series
MEA® 1000 Series
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 10
- Free Drain Area
- 11.66%
- Gallons Per Minute (GPM)
- 14.40
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 2-007-102
Photo Gallery:
Click image for high-res file and description

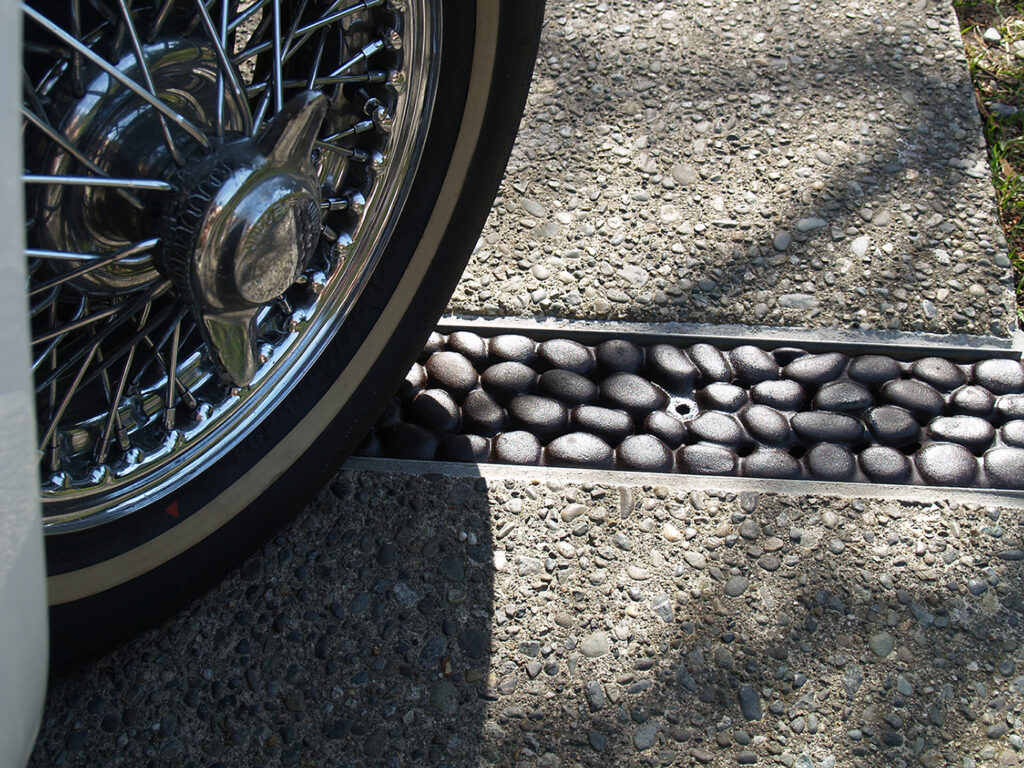

River Rock 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. PROJECT: Residential driveway. LOCATION: Los Gatos, CA. PHOTO CREDIT: Homeowner Virginia H.
River Rock 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. The catch basin array at the far end of the trench was made by cutting two River Rock 8” x 20” grates. PROJECT: Residential driveway. LOCATION: Los Gatos, CA. PHOTO CREDIT: Homeowner Virginia H.

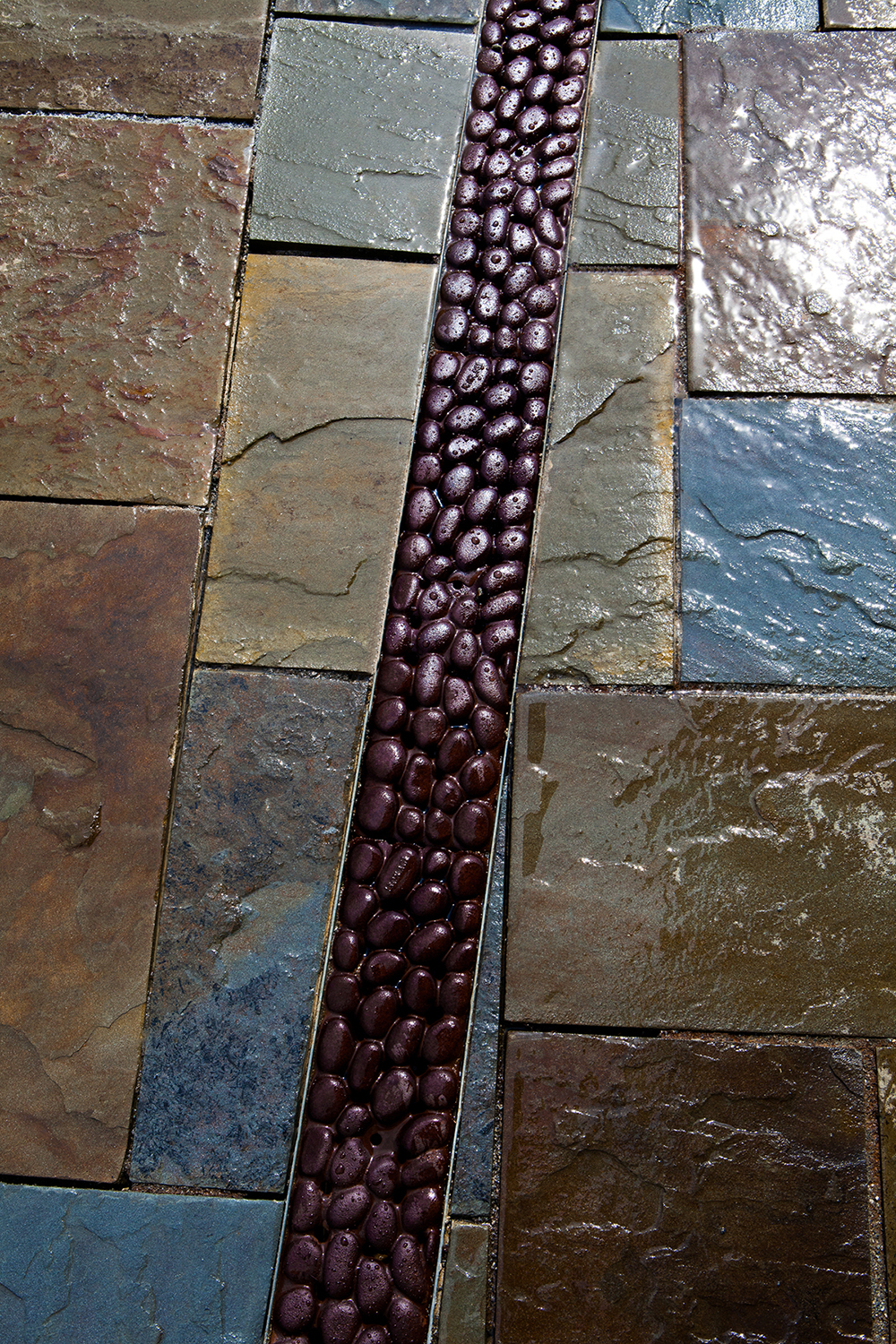

River Rock 5″ x 20″ trench grate, cast iron with baked-on-oil finish. DESIGN: Portico/MIG. PROJECT: KidsQuest Children’s Museum. LOCATION: Bellevue, WA.
River Rock 5″ x 20″ trench grate, cast iron with baked-on-oil finish. DESIGN: Portico/MIG. PROJECT: KidsQuest Children’s Museum. LOCATION: Bellevue, WA.

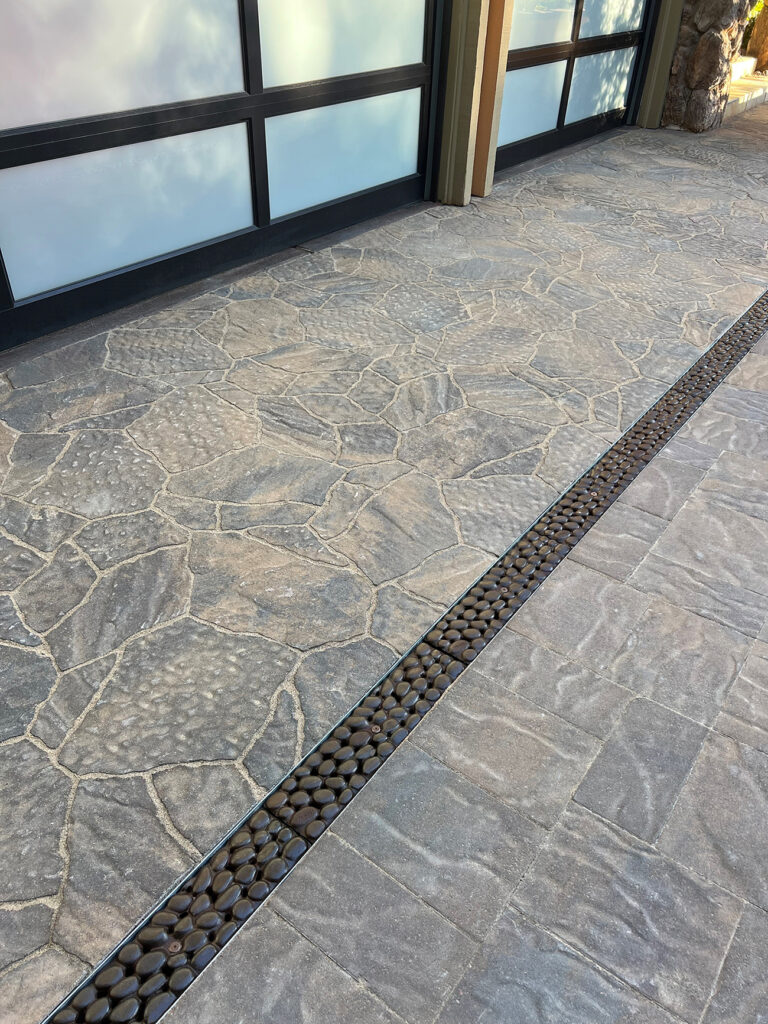

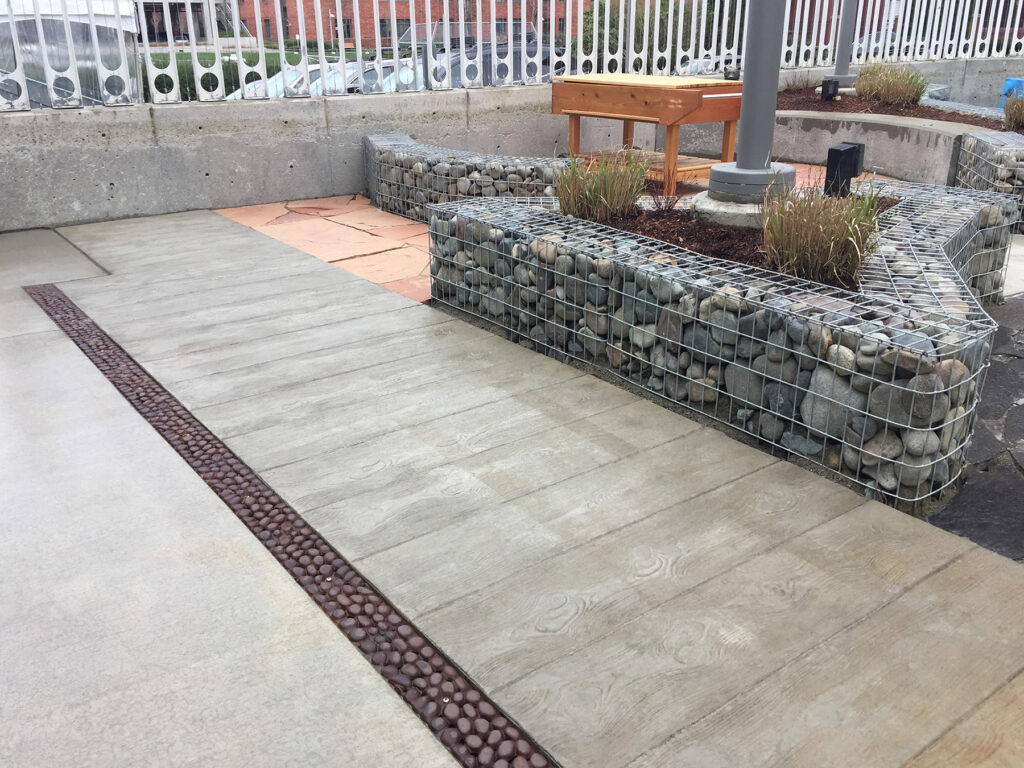

River Rock 5″ x 20″ trench grate, raw cast ductile iron shown newly installed. LOCATION: Seattle, WA.
River Rock 5″ x 20″ trench grate, raw cast ductile iron shown newly installed. LOCATION: Seattle, WA.

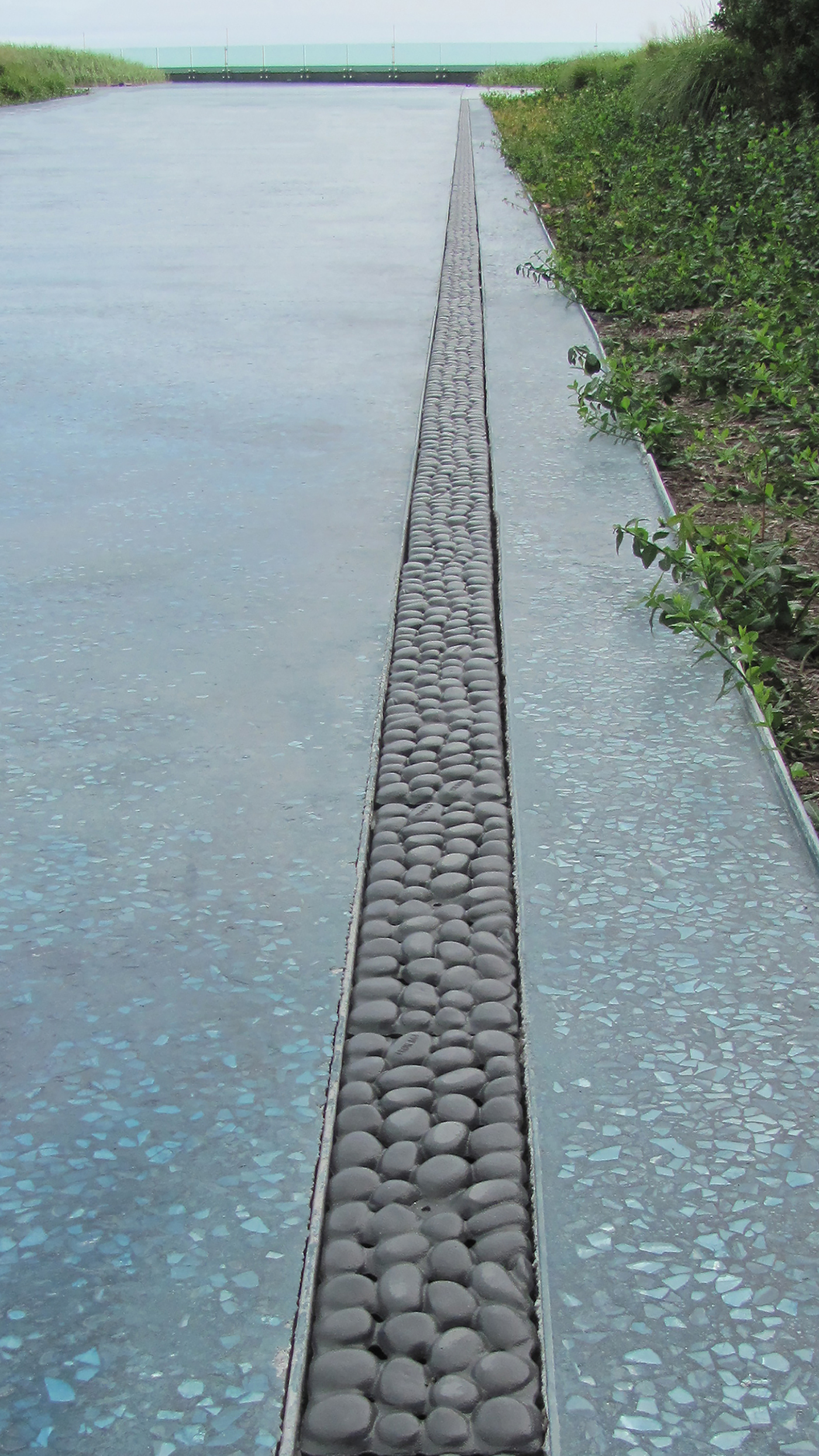

River Rock 5″ x 20″ trench grate. raw cast bronze. PROJECT: Revel Entertainment Casino. LOCATION: Atlantic City, NJ.

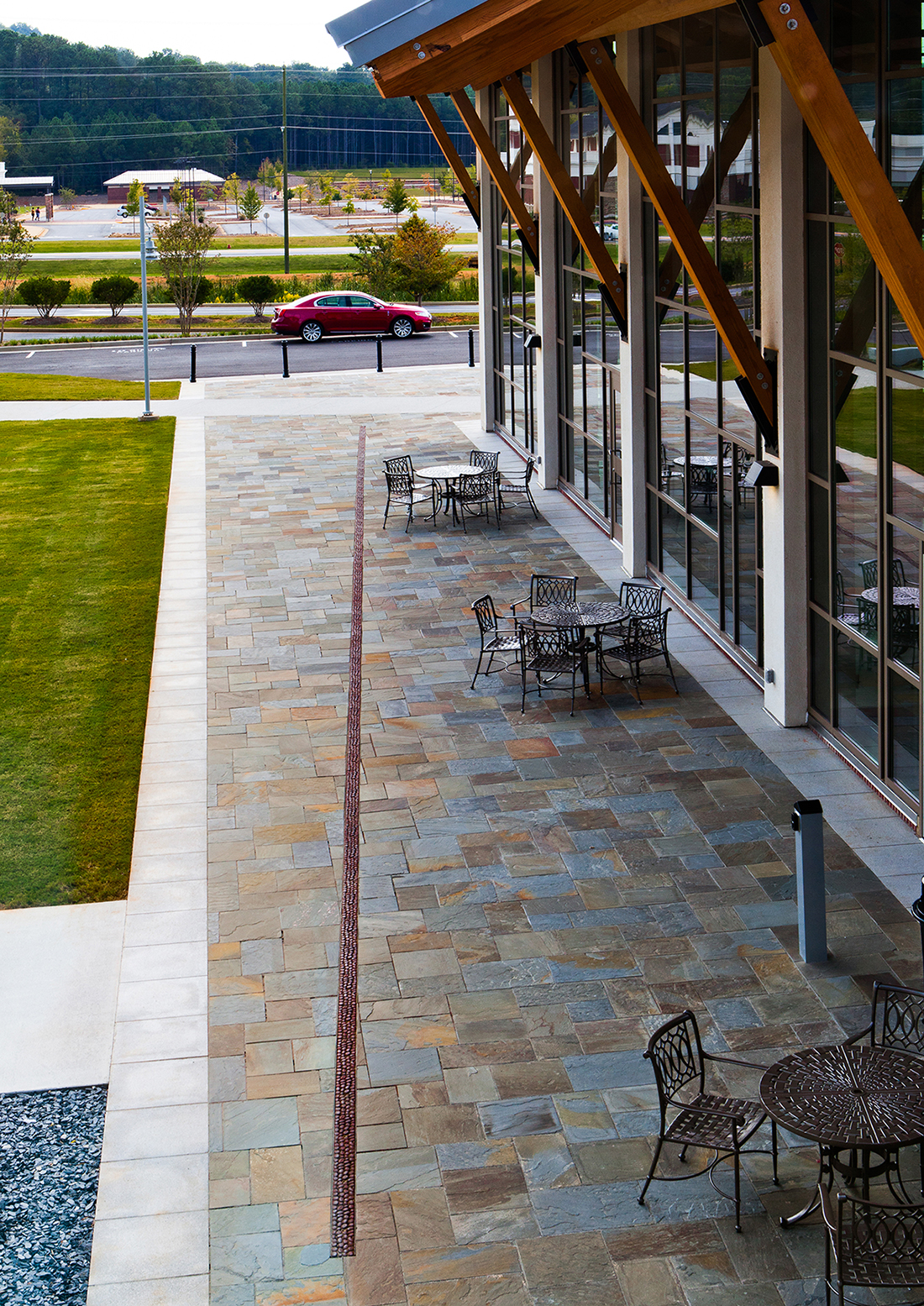

River Rock 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. DESIGN: Cooper Carry. PROJECT: Georgia Highlands College, Bartow Center. LOCATION: Rome, GA.

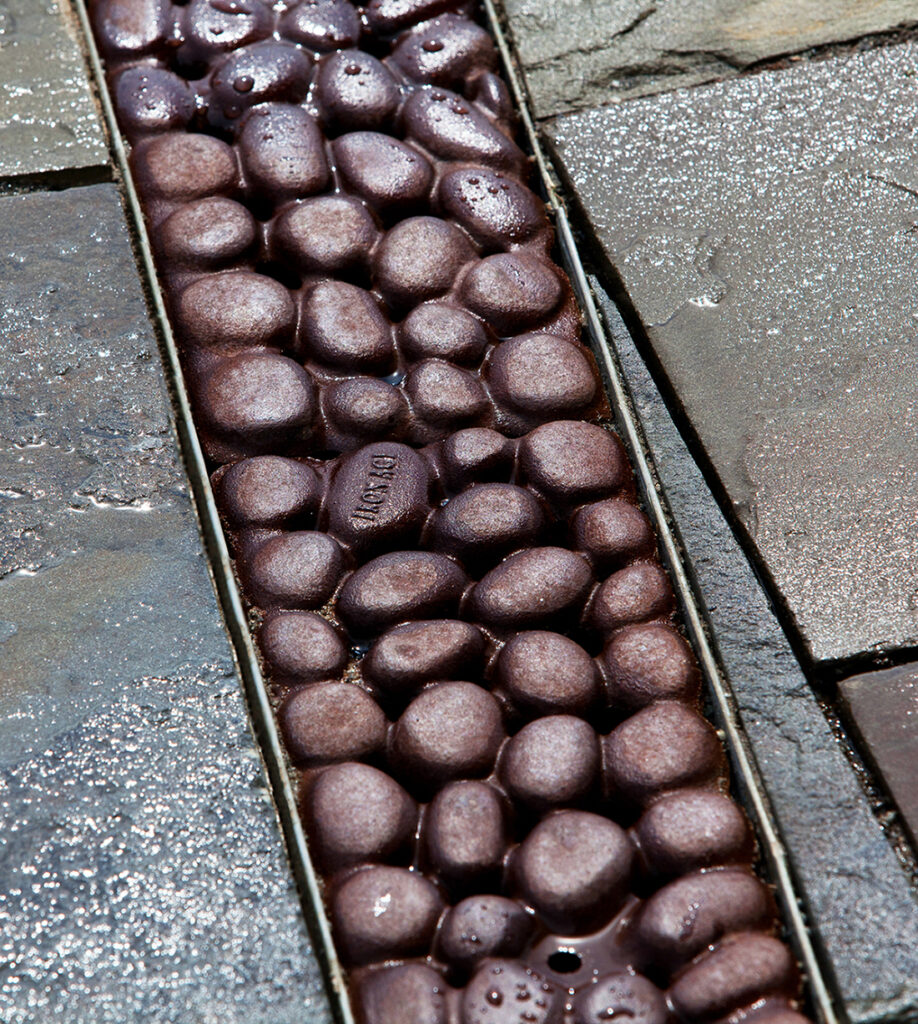

River Rock 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. DESIGN: Cooper Carry. PROJECT: Georgia Highlands College, Bartow Center. LOCATION: Rome, GA.

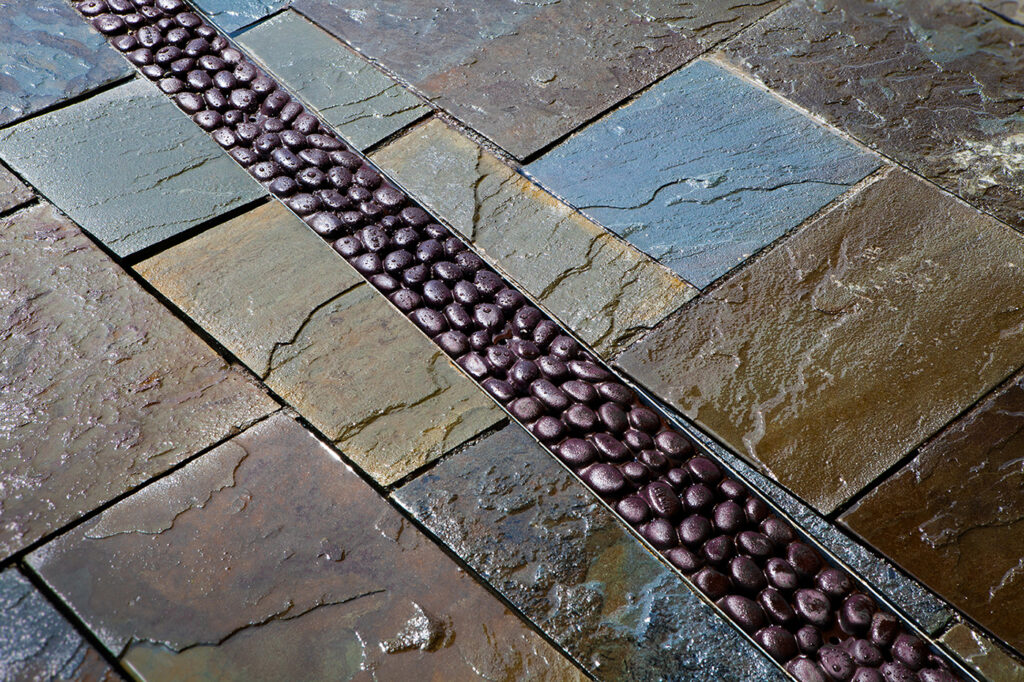

River Rock 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. DESIGN: Cooper Carry. PROJECT: Georgia Highlands College, Bartow Center. LOCATION: Rome, GA.
River Rock 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. DESIGN: Cooper Carry. PROJECT: Georgia Highlands College, Bartow Center. LOCATION: Rome, GA.
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
