Detailed Specifications:

		Download Spec Sheet

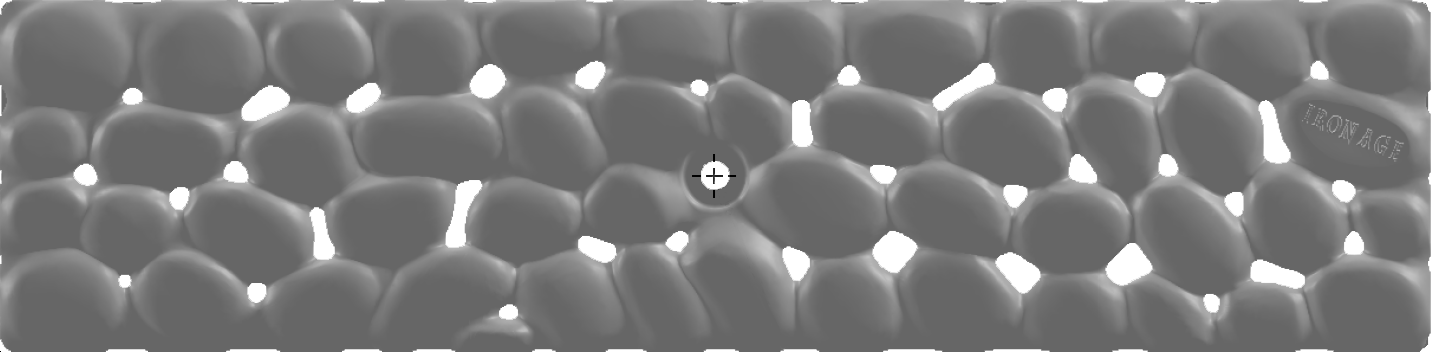

Name / Design	River Rock 5" x 20"
Product ID	RRA5-20I21
Dimensions	4.81" x 19.44" x .81"
Drain Manufacturer	ABT® ACO™ MEA®
Fits	ABT® PolyDrain® ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powdercoating
Weight	10
Free Drain Area	9%
Gallons Per Minute (GPM)	6.29
Recycled Content	5%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-007-102

	Download Spec Sheet
Name / Design	River Rock 8" x 20"
Product ID	RRN8-20I04
Dimensions	8"' x 19.87" x .75"
Drain Manufacturer	NDS®
Fits	NDS® 8" Pro Series
Material	Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powdercoating
Weight	18
Free Drain Area	5.8%
Gallons Per Minute (GPM)	12.15
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

Photo Gallery:

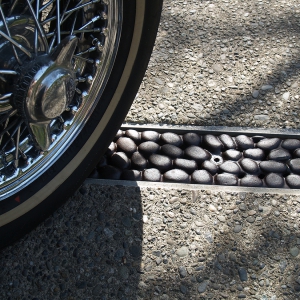

River Rock 5″ x 20″ trench grate, cast iron with baked-on-oil finish. Project: KidsQuest Children’s Museum, Bellevue, WA.

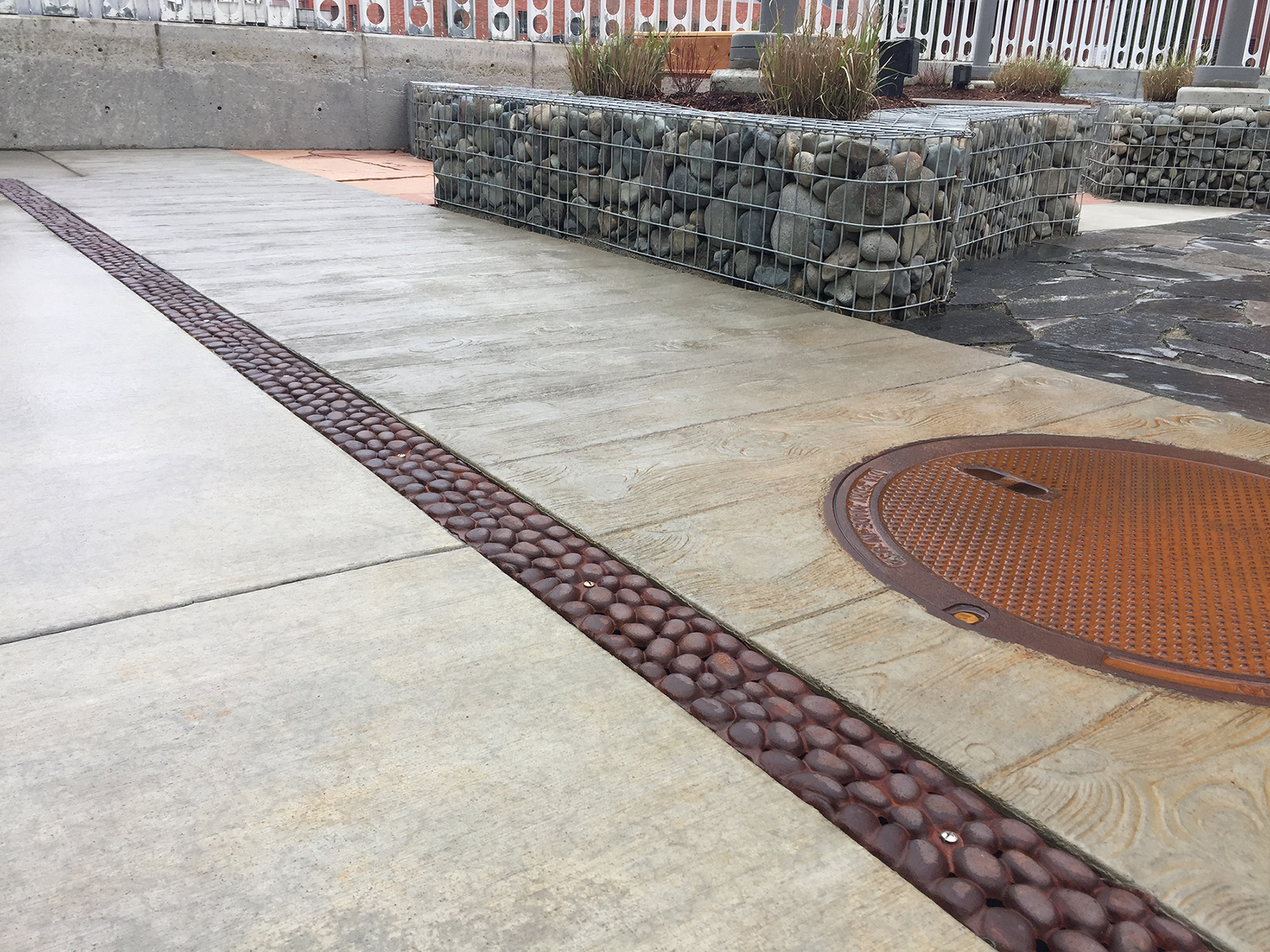

River Rock 5″ x 20″ trench grate, raw cast ductile iron. Project Location: Seattle, WA

River Rock 5″ x 20″ trench grate, raw cast ductile iron. Project Location: Seattle, WA

River Rock 5″ x 20″ trench grate, raw cast ductile iron. Project Location: Seattle, WA

River Rock 5″x20″ trench grate. raw cast bronze. Project: Revel Entertainment Casino, Atlantic City, NJ.
