Dynamo

Description:

The lively, interlocking gear design of our Dynamo Trench Grate adds an energizing element to any hardscape environment.

Size Options:

Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Dynamo 5" x 20"
Product ID	DYA5-20I21
Dimensions	4.81" x 19.56" x .81"
Drain Manufacturer	ABT® ACO™ MEA®
Fits	ABT® PolyDrain® ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	9.66
Free Drain Area	13.3%
Gallons Per Minute (GPM)	16.41
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 1-964-890

Photo Gallery:

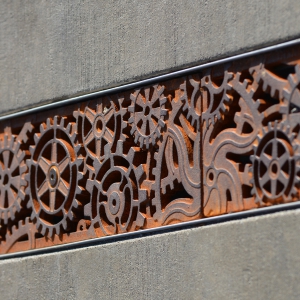

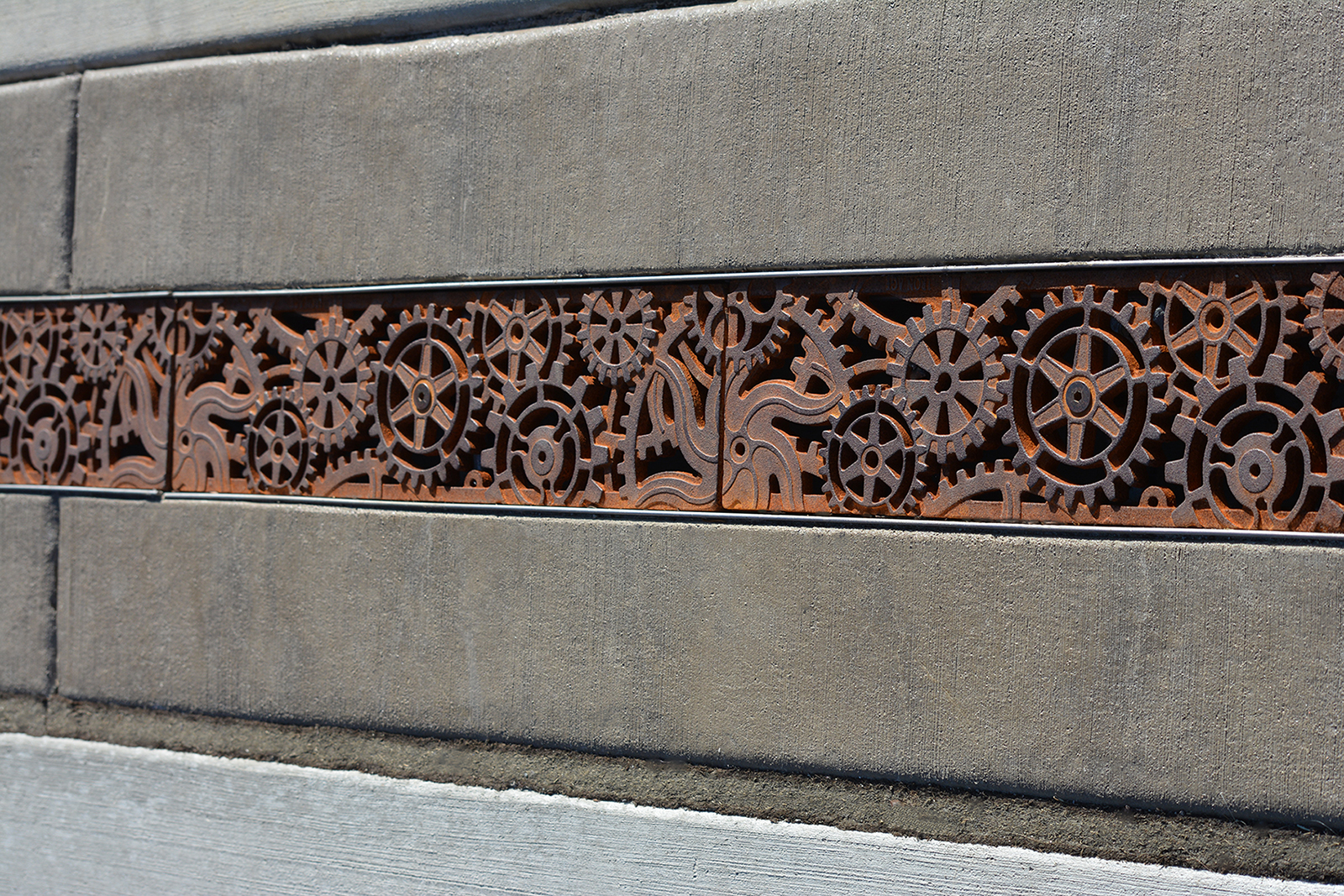

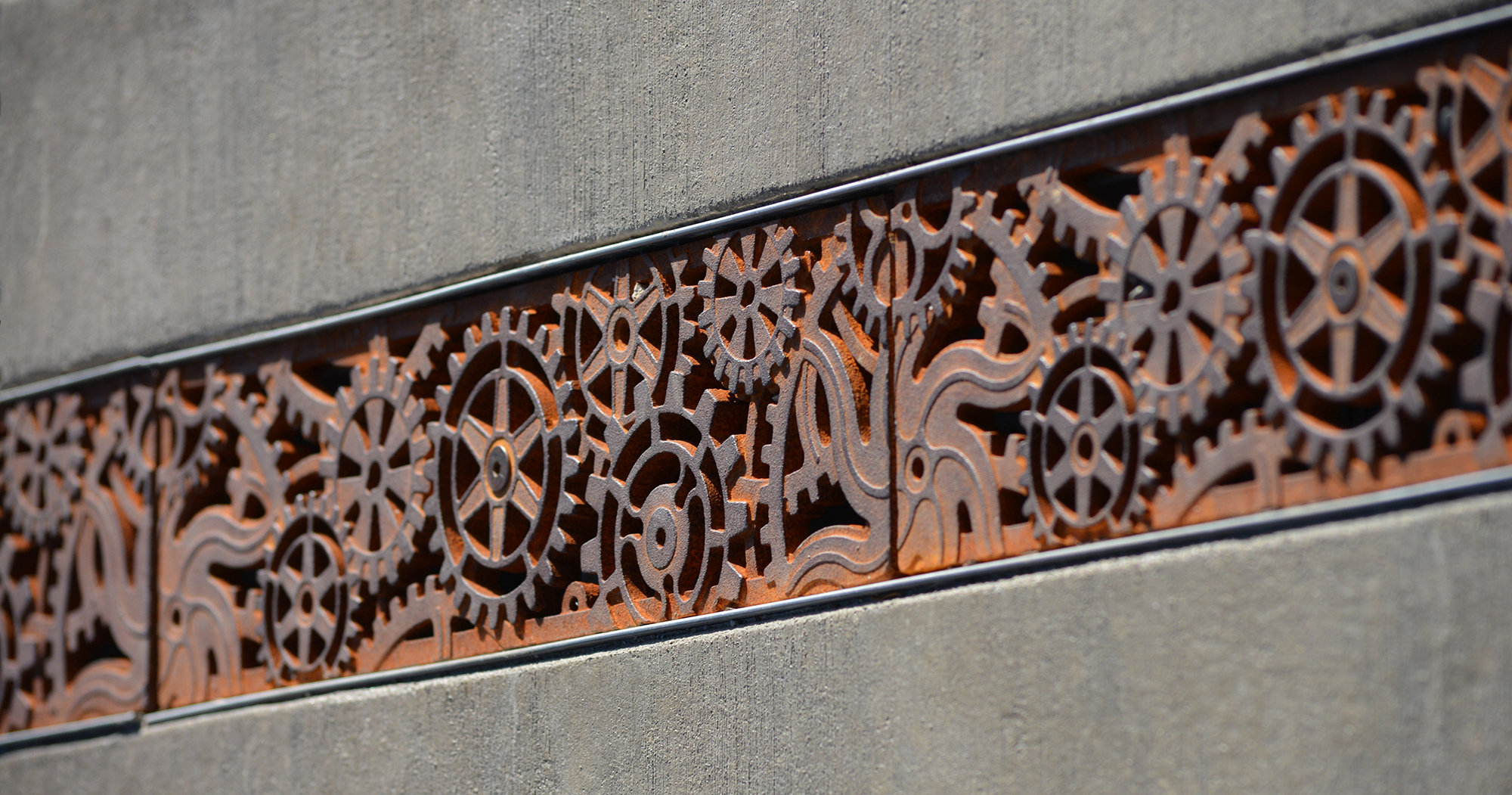

Dynamo 5″ x 20″ trench grate, cast ductile iron with Baked-On-Oil Finish. DESIGN: French & Parello Associates. PROJECT: Turtle Back Zoo Train Station. LOCATION: Orange, NJ.

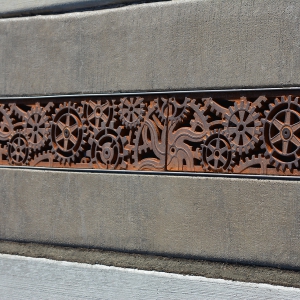

Dynamo 5″ x 20″ trench grate, cast ductile iron with Baked-On-Oil Finish. DESIGN: French & Parello Associates. PROJECT: Turtle Back Zoo Train Station. LOCATION: Orange, NJ.

dynamo-5-x-20-e-2

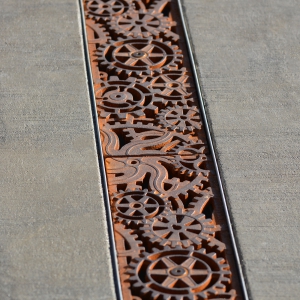

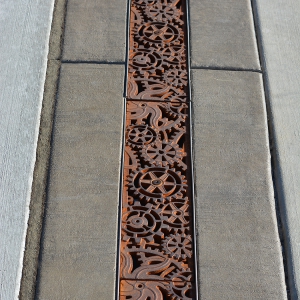

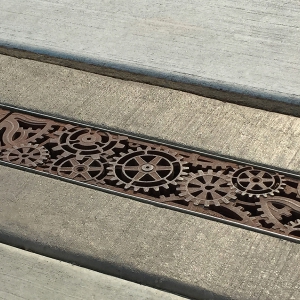

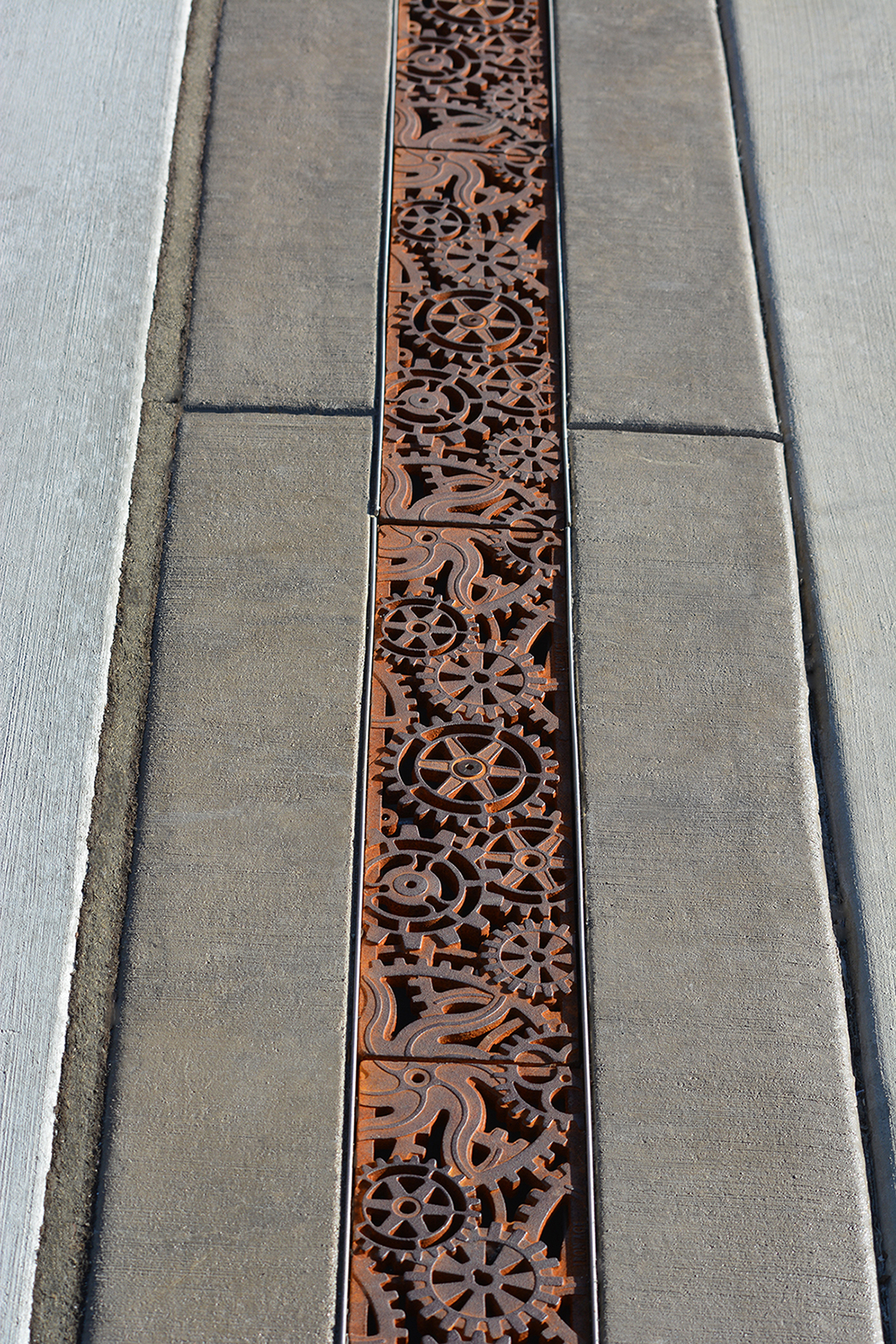

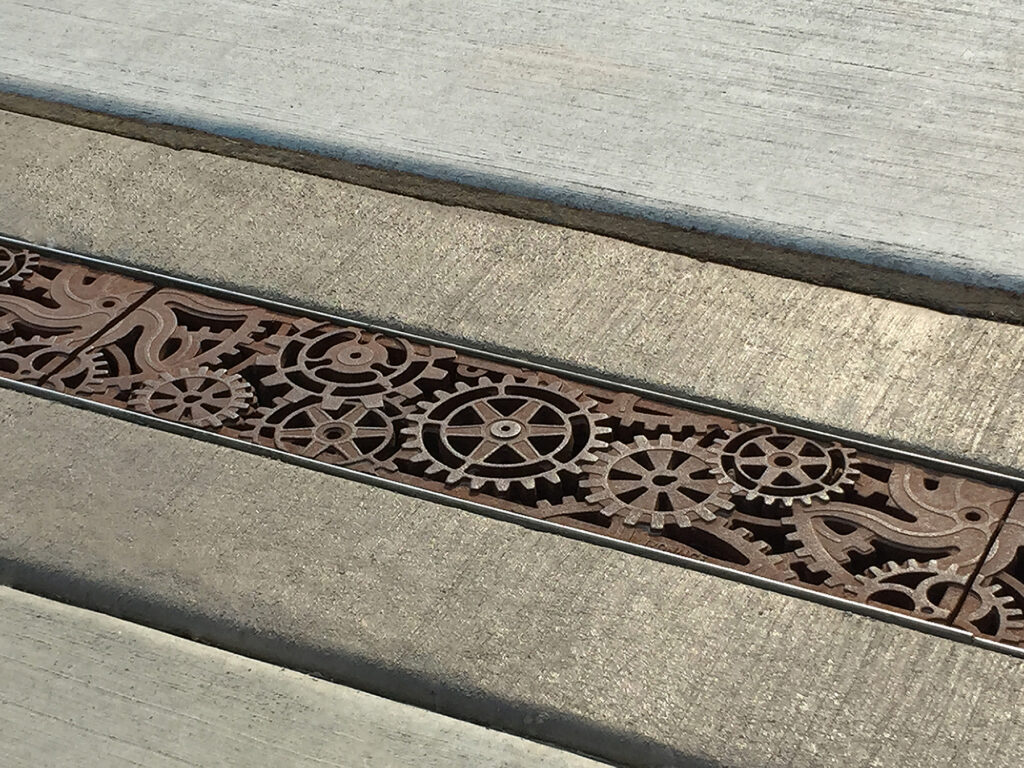

Dynamo 5″ x 20″ trench grate, raw cast ductile iron. Landscape Architect: Land Expressions. PROJECT: Huntington Park. LOCATION: Spokane, WA.

dynamo-5-x-20-e-3

Dynamo 5″ x 20″ trench grate, raw cast ductile iron. Landscape Architect: Land Expressions. PROJECT: Huntington Park. LOCATION: Spokane, WA.

dynamo-5-x-20-e-4

Dynamo 5″ x 20″ trench grate, raw cast ductile iron. Landscape Architect: Land Expressions. PROJECT: Huntington Park. LOCATION: Spokane, WA.

dynamo-5-x-20-e-5

Dynamo 5″ x 20″ trench grate, raw cast ductile iron. Landscape Architect: Land Expressions. PROJECT: Huntington Park. LOCATION: Spokane, WA.

dynamo-5-x-20-e

Dynamo 5″ x 20″ trench grate, raw cast ductile iron. Landscape Architect: Land Expressions. PROJECT: Huntington Park. LOCATION: Spokane, WA.

Decorative cast iron trench grates featuring interlocking gear pattern

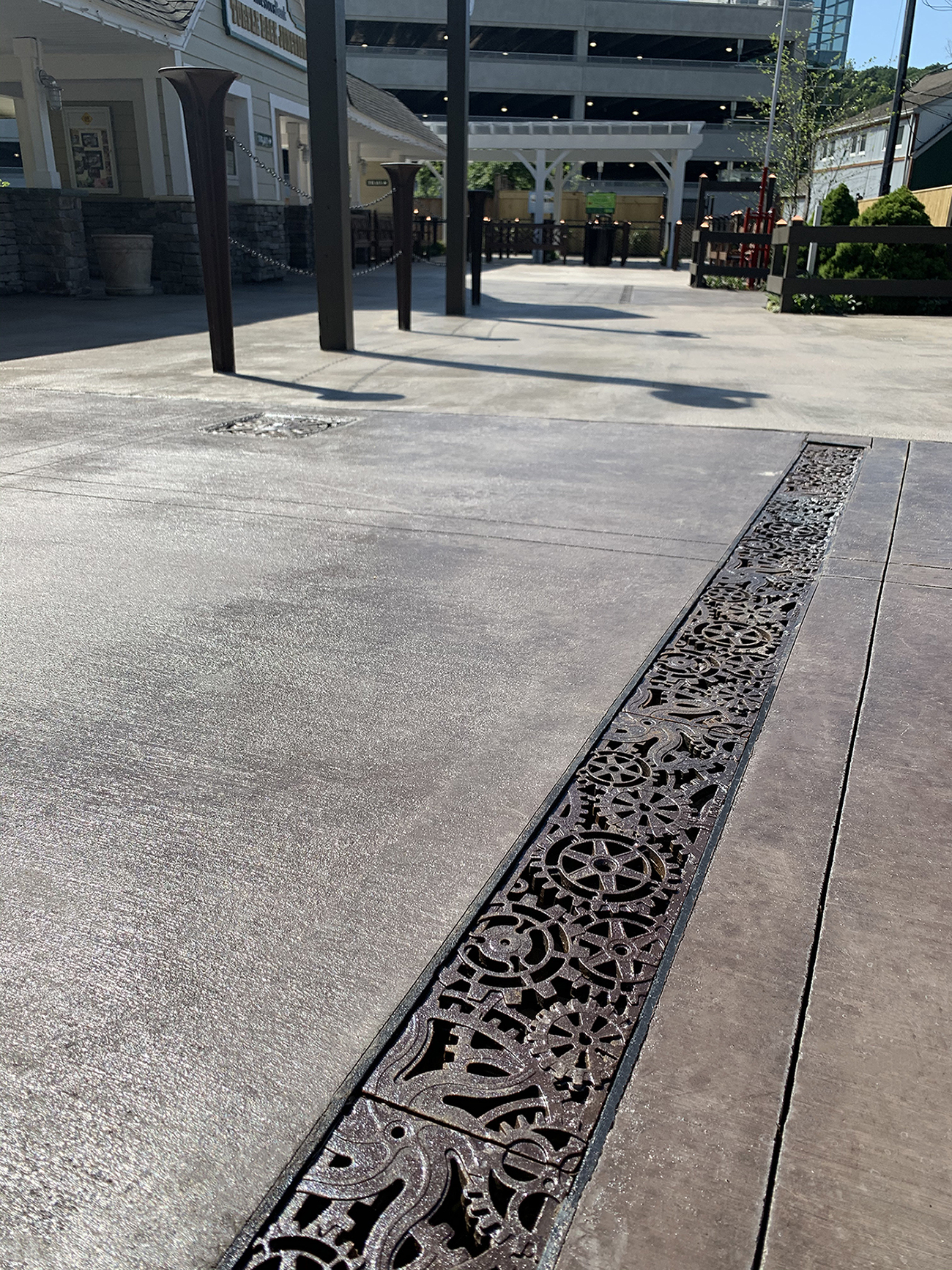

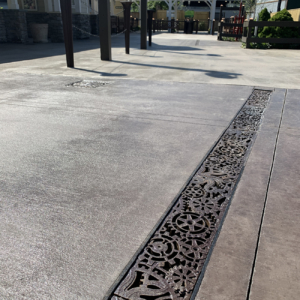

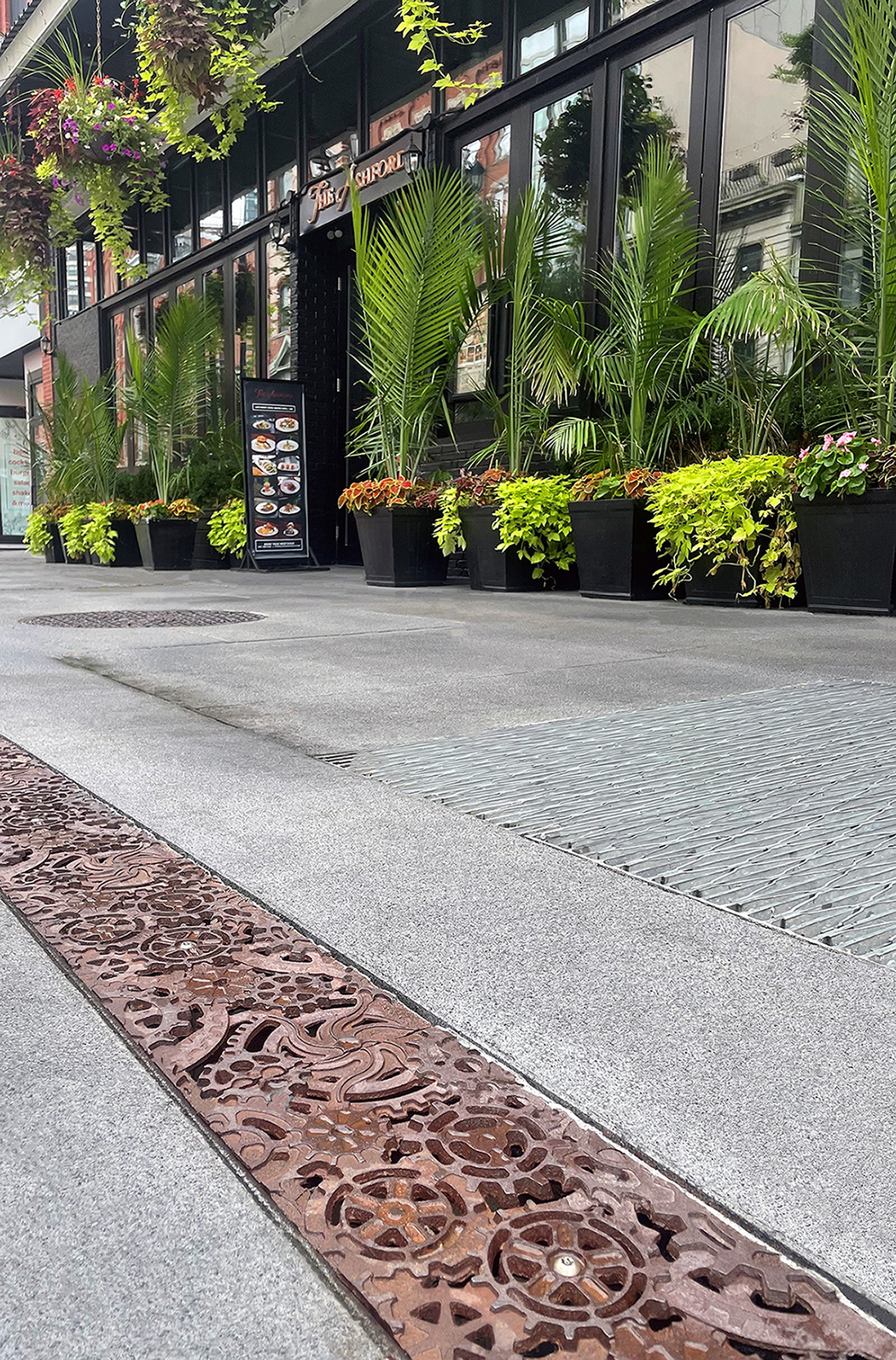

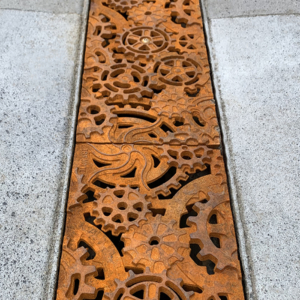

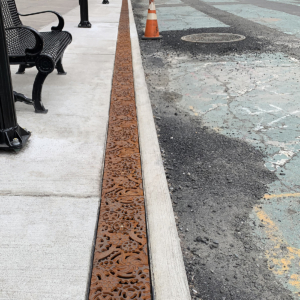

Dynamo 8″ x 20″ heavy-duty trench grates in raw cast ductile iron are installed next to a roadway being converted to a pedestrian plaza. The street was raised to match the level of the sidewalk and our decorative trench drains were installed along the length of the project. DESIGN: Colliers Engineering & Design. INSTALLER: JC Contracting, Inc. PROJECT: Newark Avenue Pedestrian Mall. LOCATION: Jersey City, NJ.

Decorative cast iron trench grates featuring interlocking gear pattern

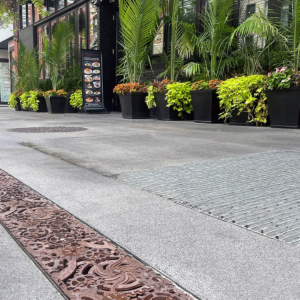

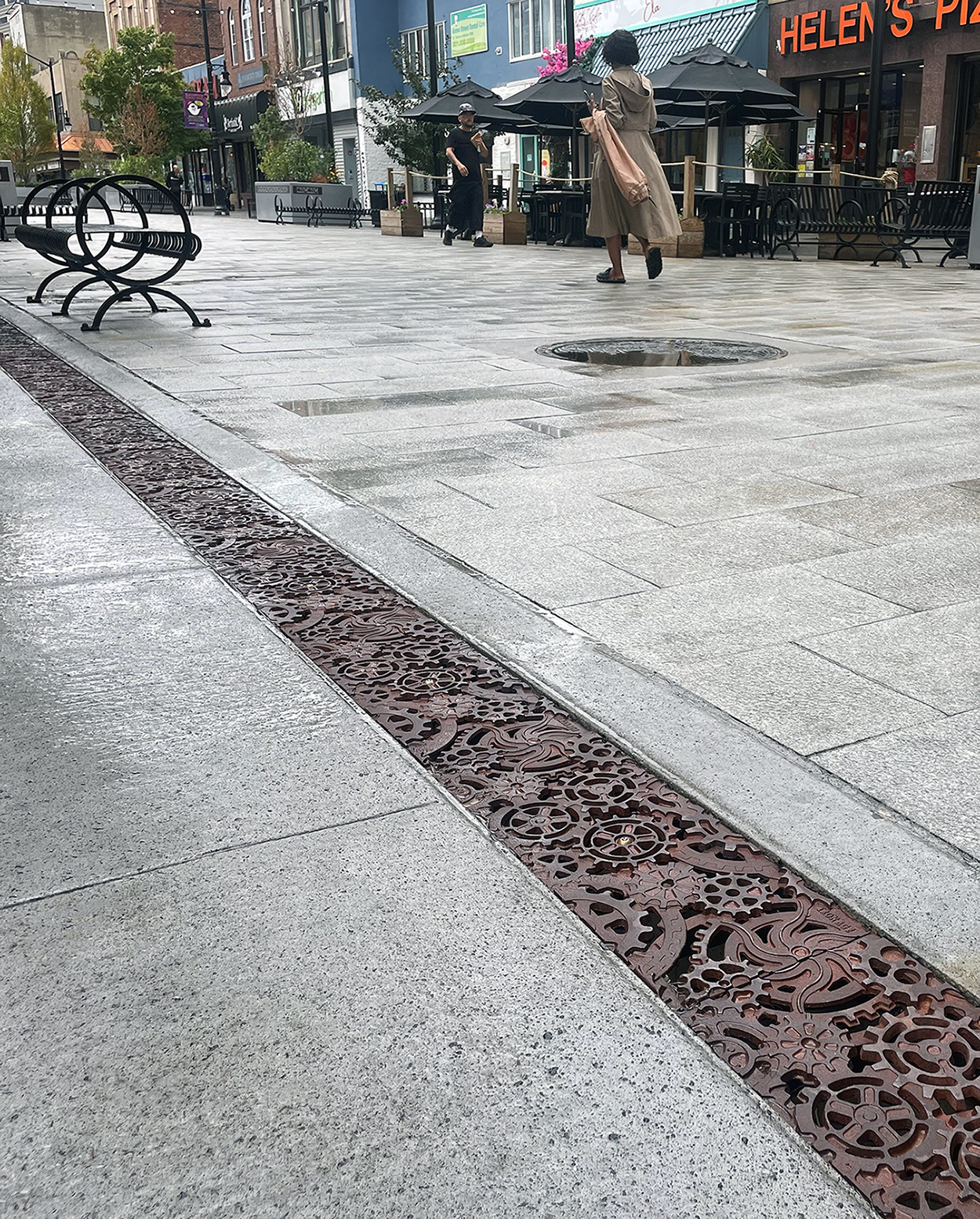

Dynamo 8″ x 20″ heavy-duty trench grates in raw cast ductile iron are installed next to a roadway being converted to a pedestrian plaza. DESIGN: Colliers Engineering & Design. INSTALLER: JC Contracting, Inc. PROJECT: Newark Avenue Pedestrian Mall. LOCATION: Jersey City, NJ.

Decorative cast iron trench grates featuring interlocking gear pattern

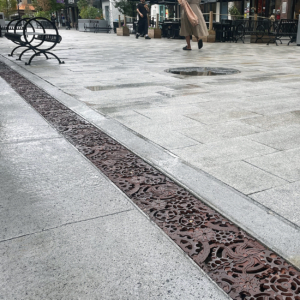

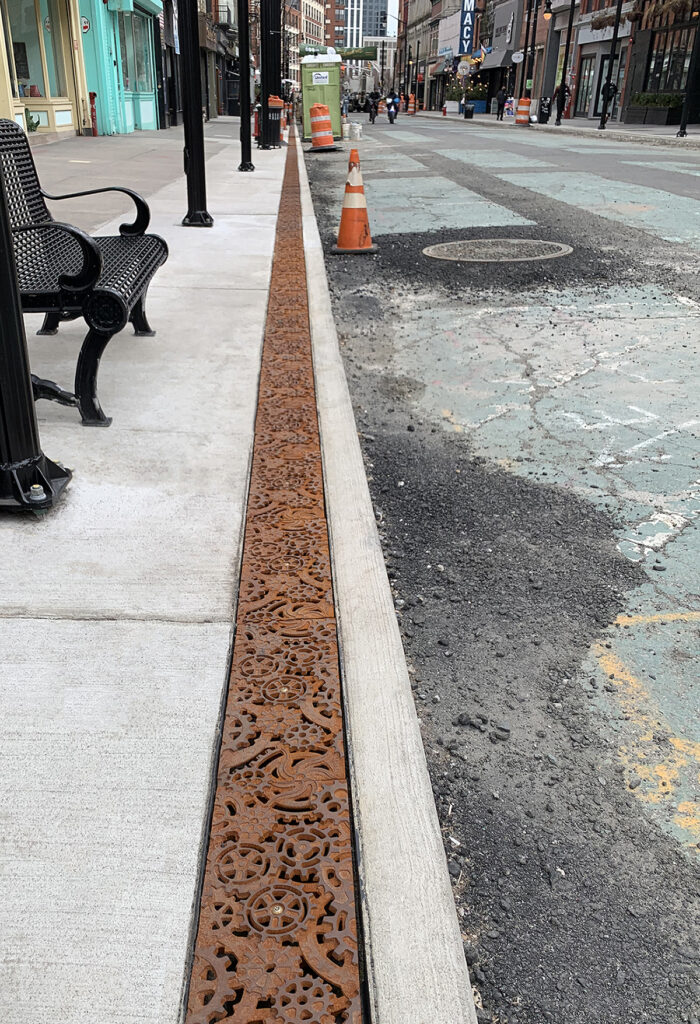

Dynamo 8″ x 20″ heavy-duty trench grates in raw cast ductile iron are installed next to a roadway converted to a pedestrian plaza. DESIGN: Colliers Engineering & Design. INSTALLER: JC Contracting, Inc. PROJECT: Newark Avenue Pedestrian Mall. LOCATION: Jersey City, NJ.

Decorative cast iron trench grates featuring interlocking gear pattern

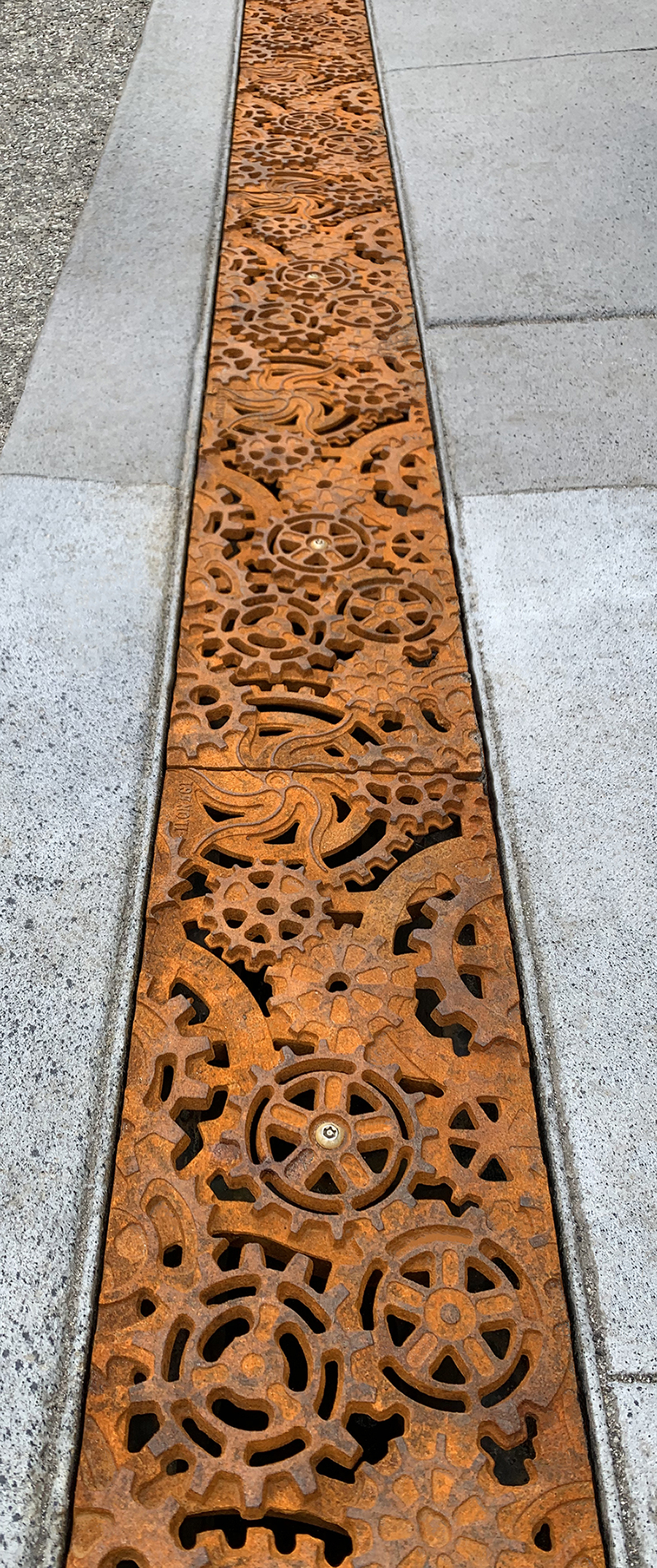

Dynamo 8″ x 20″ heavy-duty trench grates in raw cast ductile iron are installed next to a roadway converted to a pedestrian plaza. DESIGN: Colliers Engineering & Design. INSTALLER: JC Contracting, Inc. PROJECT: Newark Avenue Pedestrian Mall. LOCATION: Jersey City, NJ.

Decorative cast iron trench grates featuring interlocking gear pattern

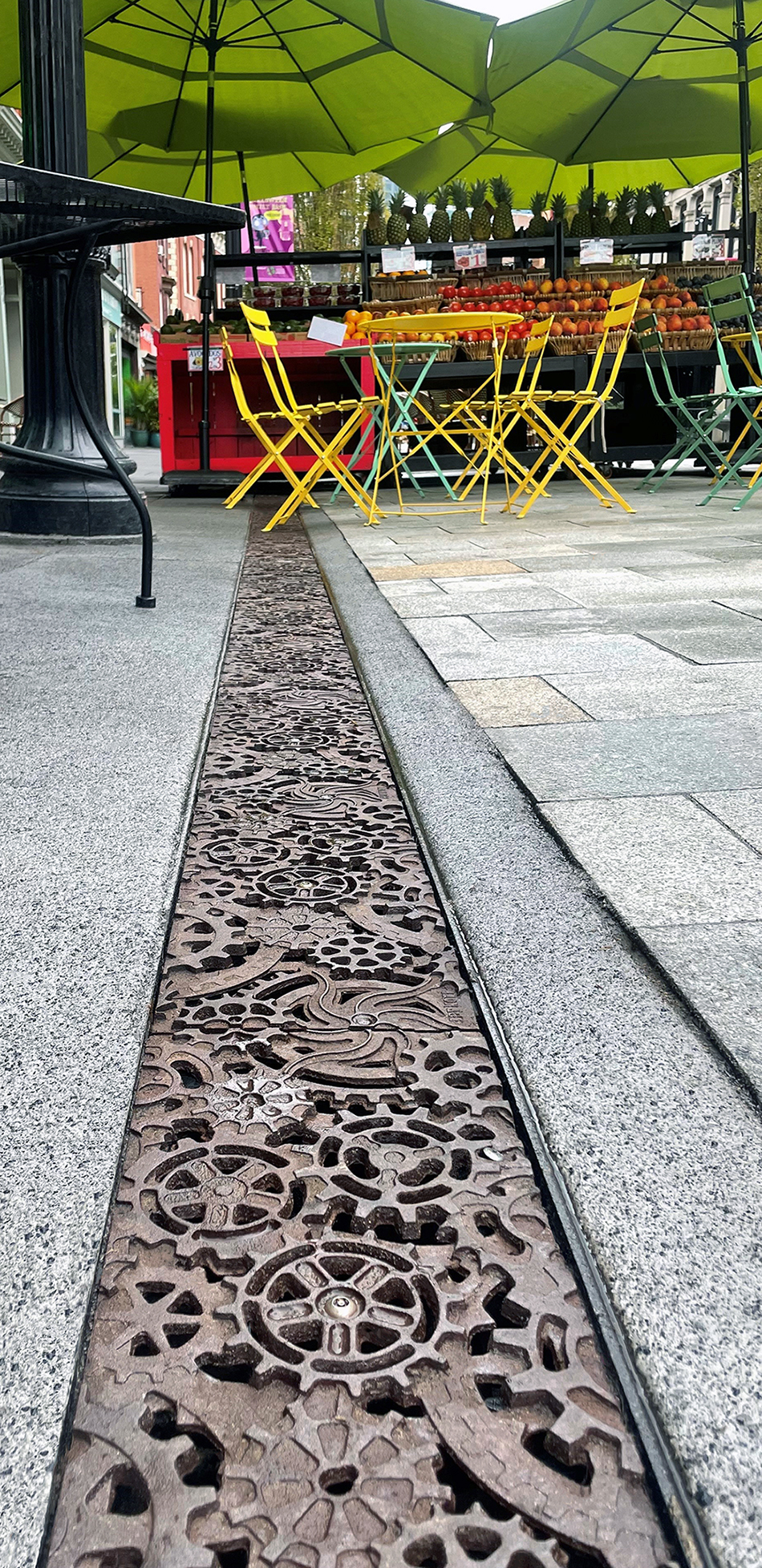

Dynamo 8″ x 20″ heavy-duty trench grates in raw cast ductile iron are installed next to a roadway converted to a pedestrian plaza. DESIGN: Colliers Engineering & Design. INSTALLER: JC Contracting, Inc. PROJECT: Newark Avenue Pedestrian Mall. LOCATION: Jersey City, NJ.
