Rain Radius Grates
Intermittent breaks in the linear surface not only evoke the precipitation our hometown of Seattle is famous for, but give our Rain grates a clean, sophisticated look and heel-proof design.
Select Size:
Detailed Specifications:
- Name / Design
- Rain 18" Wide Heel-Proof, 15'-9" CLR
- Product ID
- RNR18-23I99HP16
- Dimensions
- 17.81" x 23.78" x 1.50"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 46.41
- Free Drain Area
- 16.63%
- Gallons Per Minute (GPM)
- 88.20
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- Pending
Photo Gallery:
Click image for high-res file and description

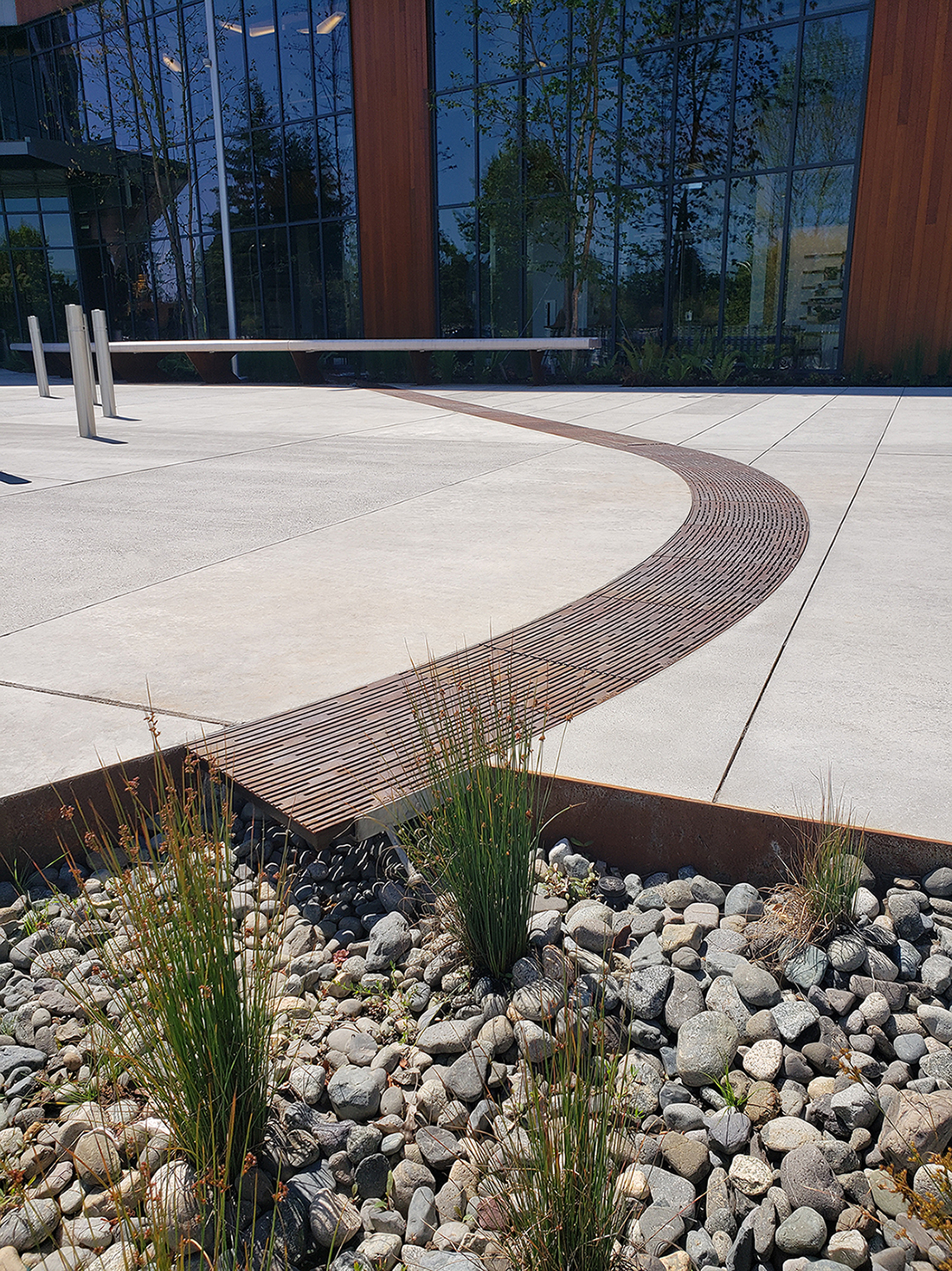

Rain 18″ heel-proof radius trench grate, cast iron with baked-on-oil finish. DESIGN: NBBJ. LANDSCAPE ARCHITECT: Berger Partnership. PROJECT: Alaska Airlines HQ Copper River Project. LOCATION: SeaTac, WA.
Similar Products:
View additional products featuring the Rain design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
