Catch Basin Grates
Que Catch Basin Grates
We took the ordinary vertical lines of a traditional slotted grate and turned them sideways, giving our Que pattern a long, lean look with eye-catching depth and dimension.
Select Size:
Detailed Specifications:
- Name / Design

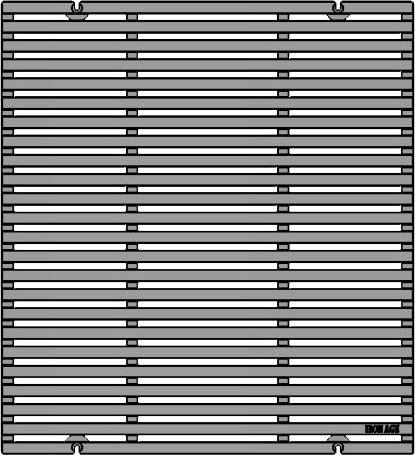

- Que 30" x 33"
- Product ID
- QUX30-33I99
- Dimensions
- 30.00" x 33.00" x 1.50"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 103.85
- Free Drain Area
- 28.94%
- Gallons Per Minute (GPM)
- 375.35
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
Photo Gallery:
Click image for high-res file and description

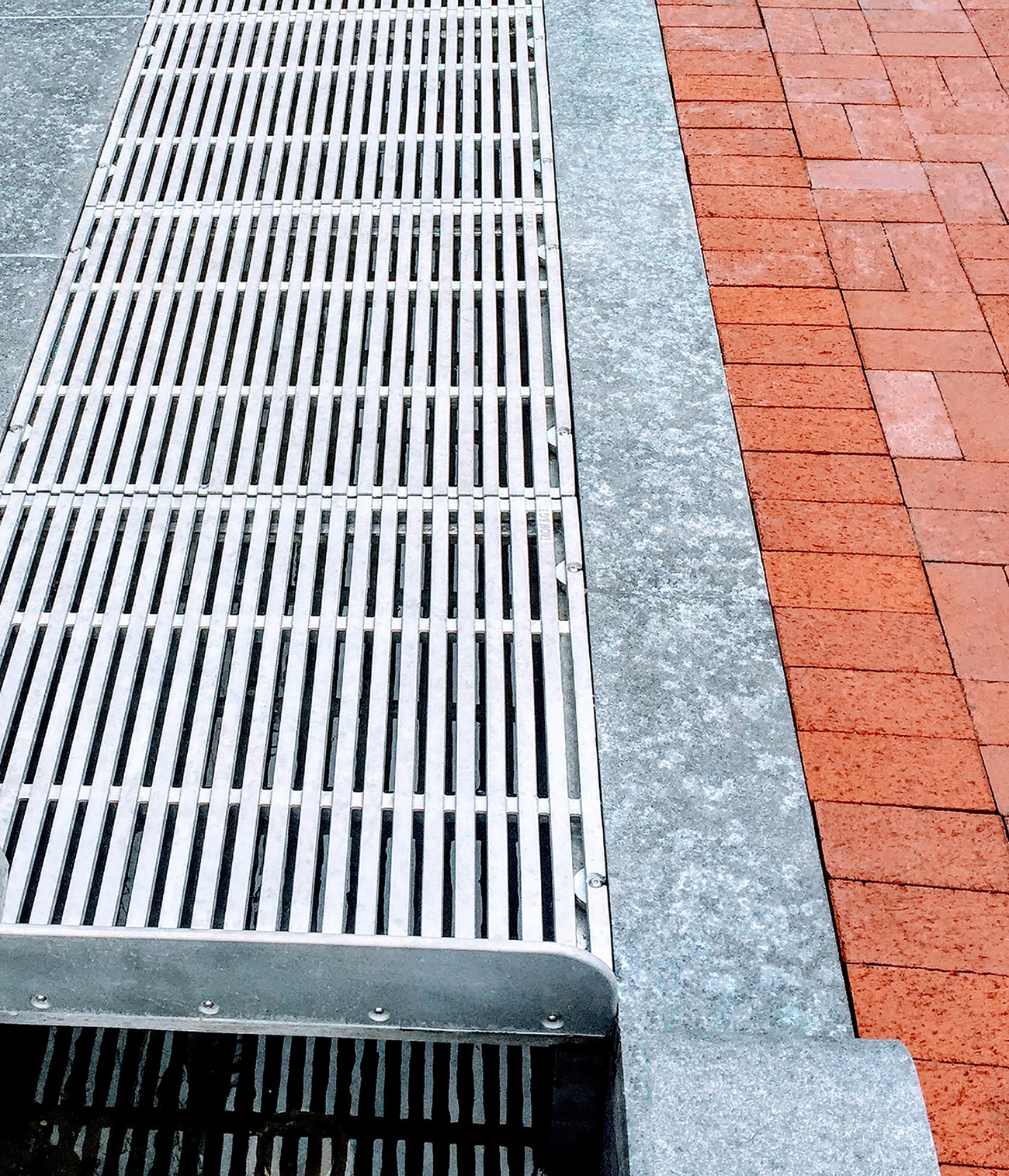

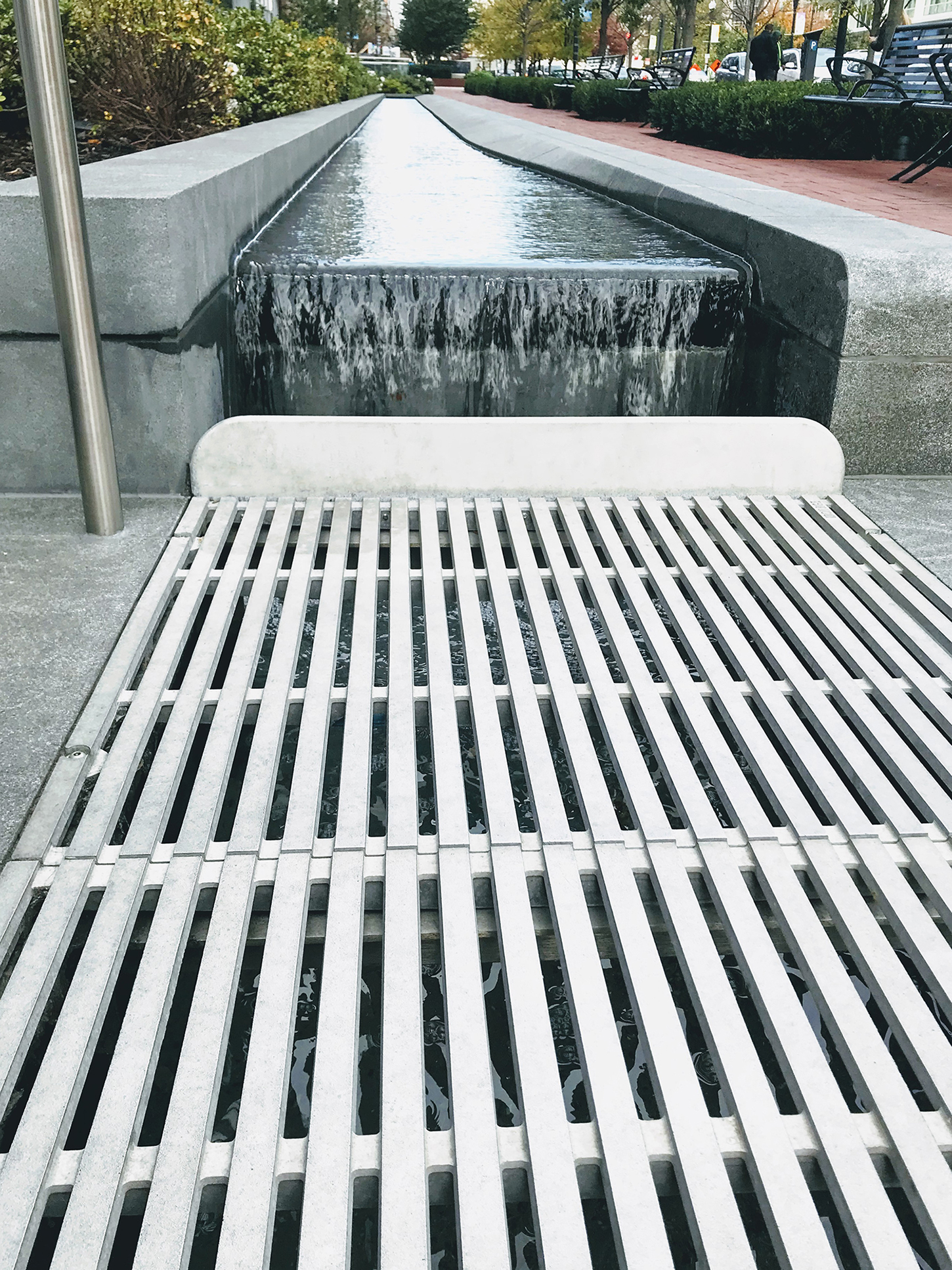

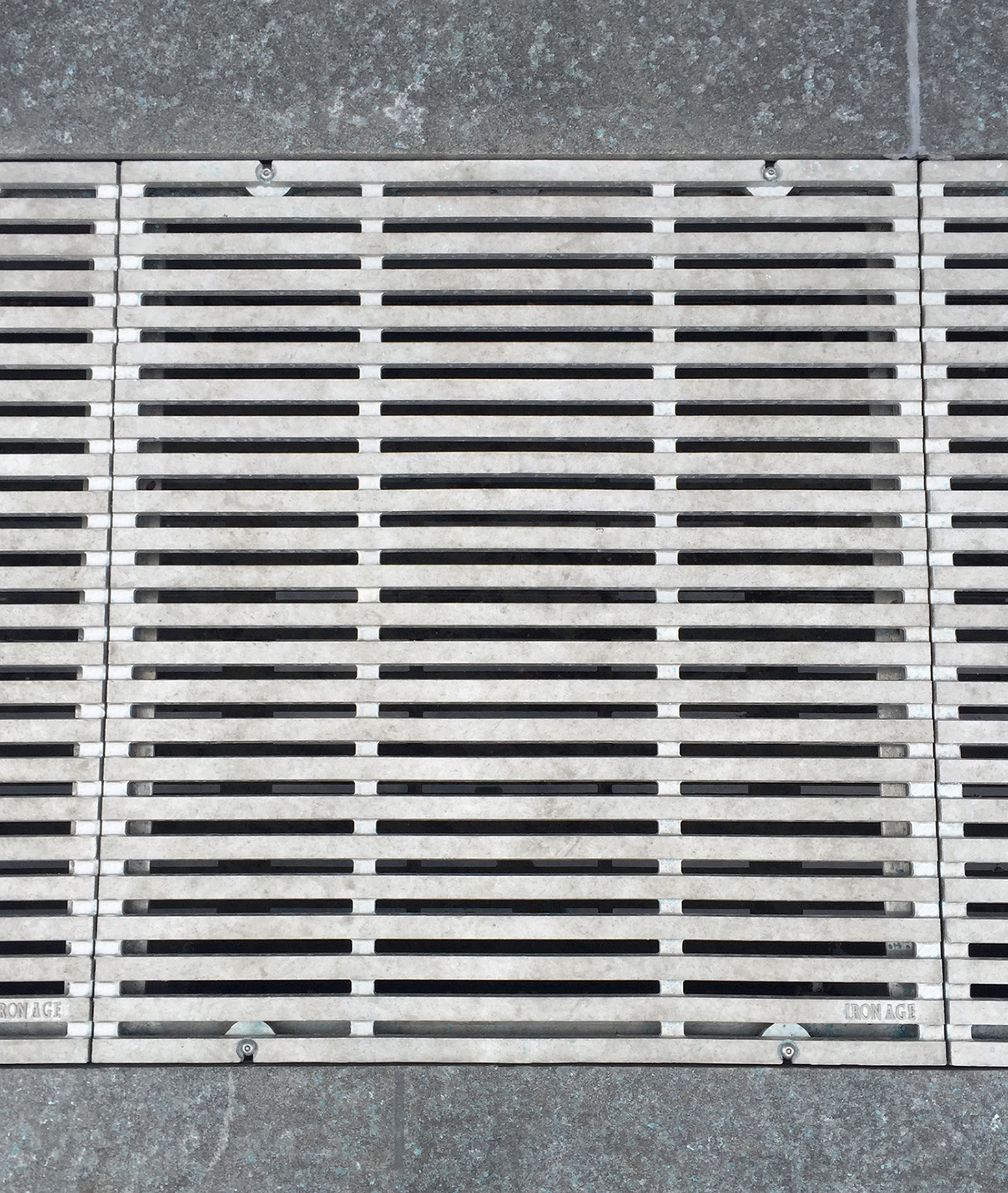

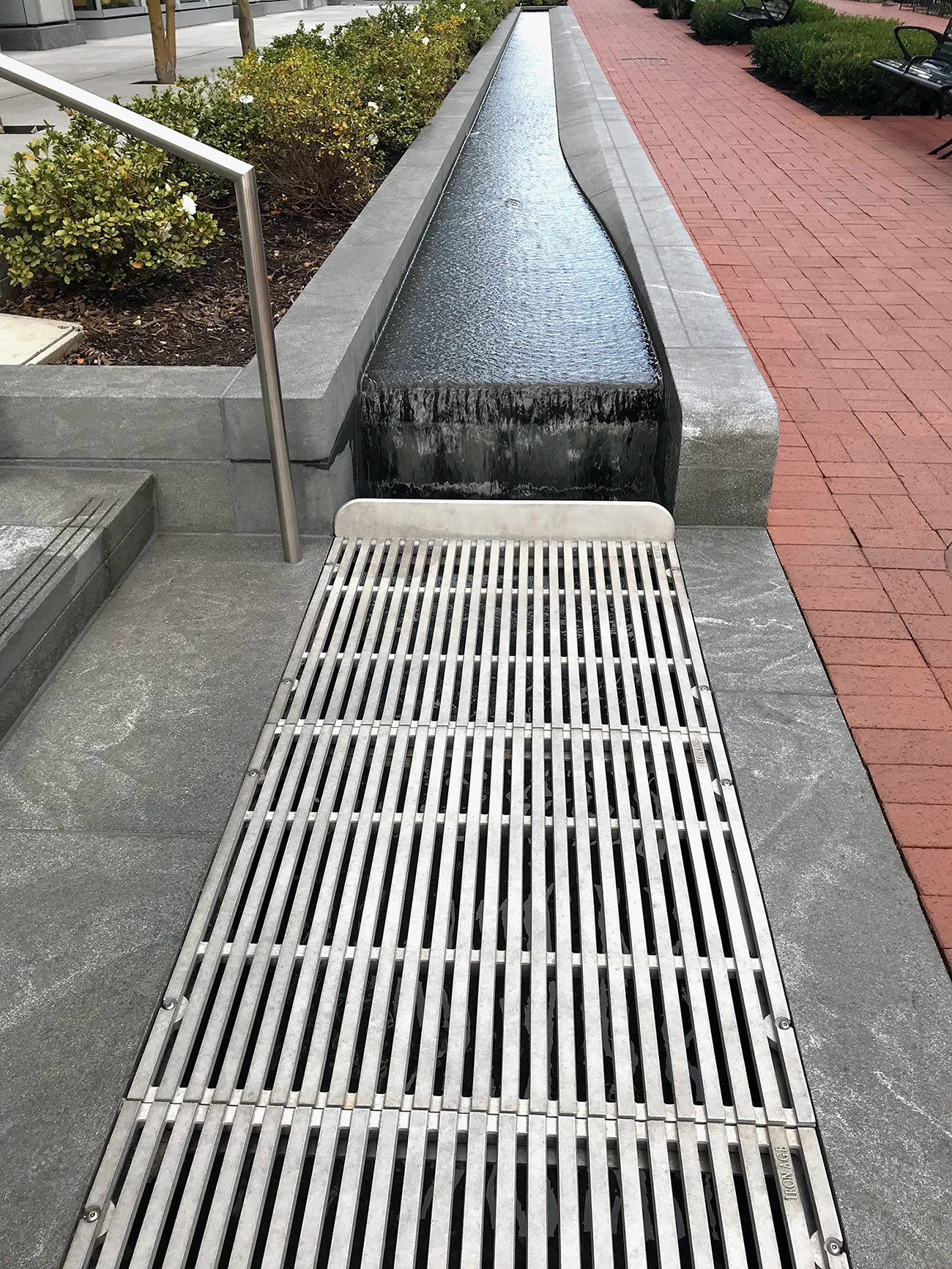

Que 30″ x 33″ trench grate, raw cast aluminum. DESIGN: GGN. PROJECT: 600 Massachusetts Avenue. LOCATION: Washington, DC.
Que 30″ x 33″ trench grate, raw cast aluminum. DESIGN: GGN. PROJECT: 600 Massachusetts Avenue. LOCATION: Washington, DC.
Que 30″ x 33″ trench grate, raw cast aluminum. DESIGN: GGN. PROJECT: 600 Massachusetts Avenue. LOCATION: Washington, DC.
Que 30″ x 33″ trench grate, raw cast aluminum. DESIGN: GGN. PROJECT: 600 Massachusetts Avenue. LOCATION: Washington, DC.
Que 30″ x 33″ trench grate, raw cast aluminum. DESIGN: GGN. PROJECT: 600 Massachusetts Avenue. LOCATION: Washington, DC.
Que 30″ x 33″ trench grate, raw cast aluminum. DESIGN: GGN. PROJECT: 600 Massachusetts Avenue. LOCATION: Washington, DC.
Similar Products:
View additional products featuring the Que design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
