Catch Basin Grates
Madras Catch Basin Grates
We’ve designed the Madras with staggered spacing and slight variations in surface depth, creating a unique, eye-catching take on your typical linear grate.
Select Size:
Detailed Specifications:
- Name / Design
- Madras 24" x 48" Heel-Proof, PEDESTRIAN LOAD ONLY
- Product ID
- MDX24-48I99HPFW
- Dimensions
- 23.92" x 47.88" x 1.00"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 116.88
- Free Drain Area
- 13.61%
- Gallons Per Minute (GPM)
- 204.35
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 2-330-164
Photo Gallery:
Click image for high-res file and description

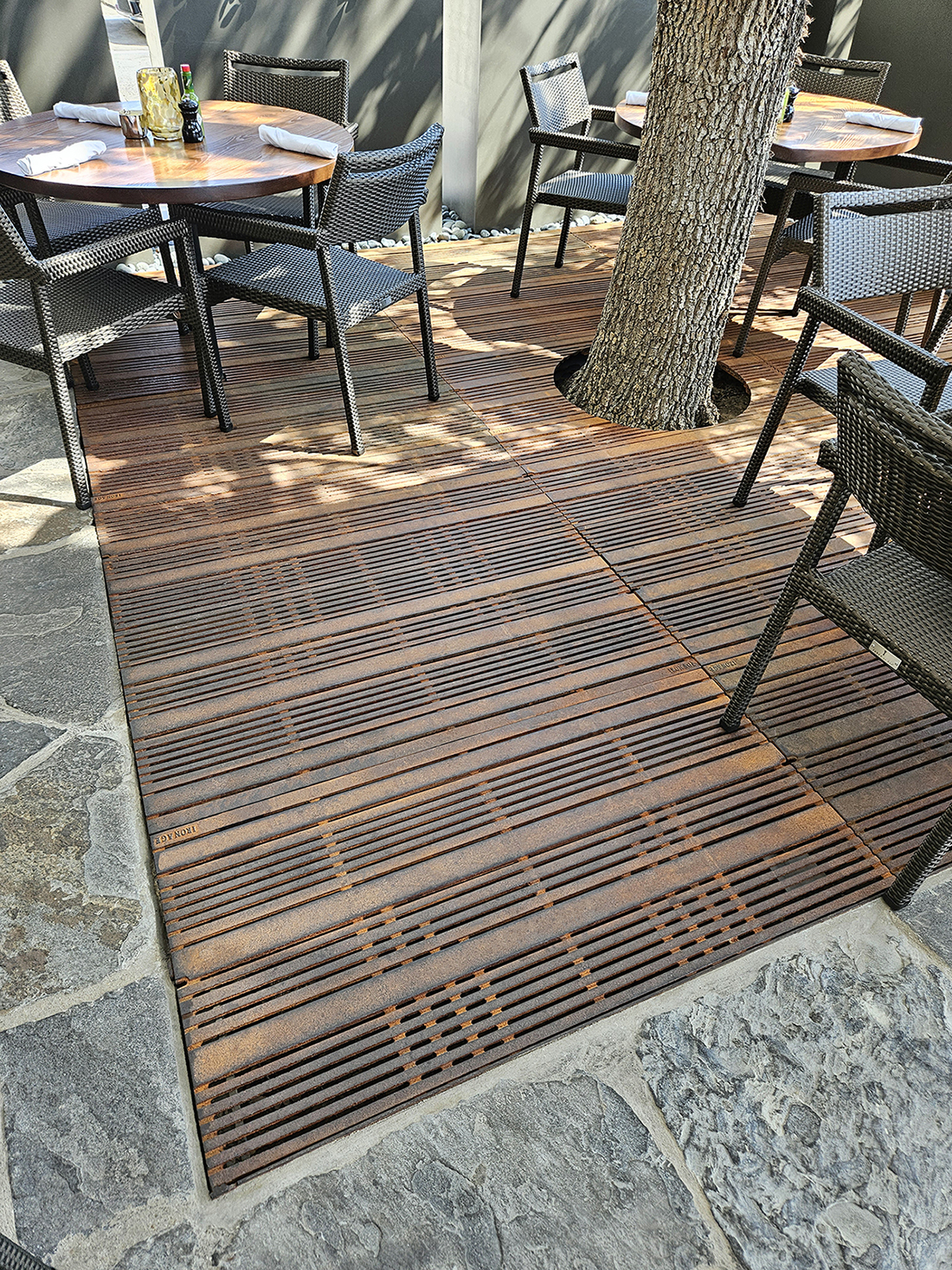

Madras 24″ x 48″ heel-proof grate panels in raw cast ductile iron, used to create a 12′ tree grate array. DESIGN: Michael Hsu Office of Architecture. PROJECT: Bobbie’s Airway Grill. LOCATION: Dallas, TX

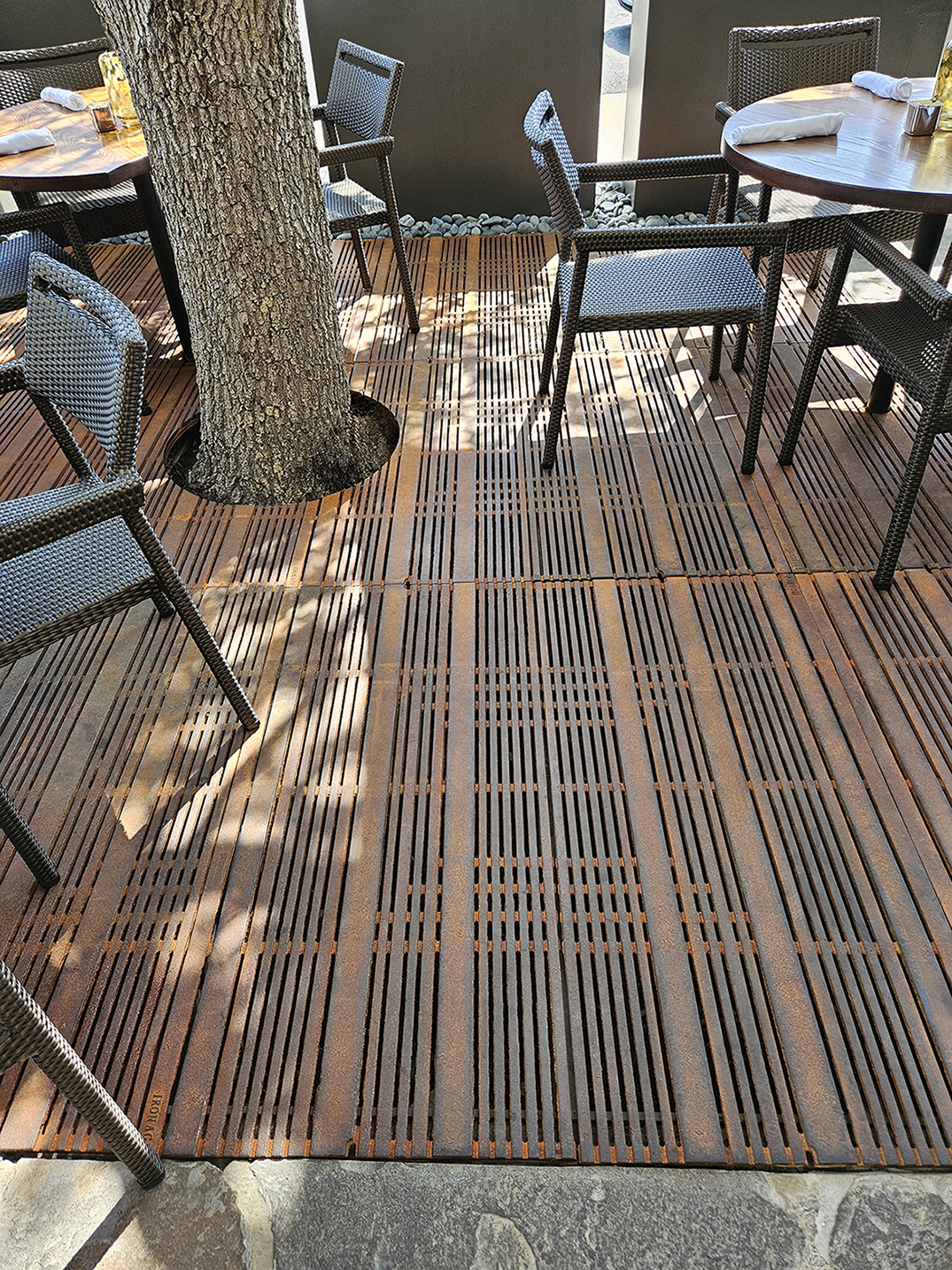

Madras 24″ x 48″ heel-proof grate panels in raw cast ductile iron, used to create a 12′ tree grate array. DESIGN: Michael Hsu Office of Architecture. PROJECT: Bobbie’s Airway Grill. LOCATION: Dallas, TX

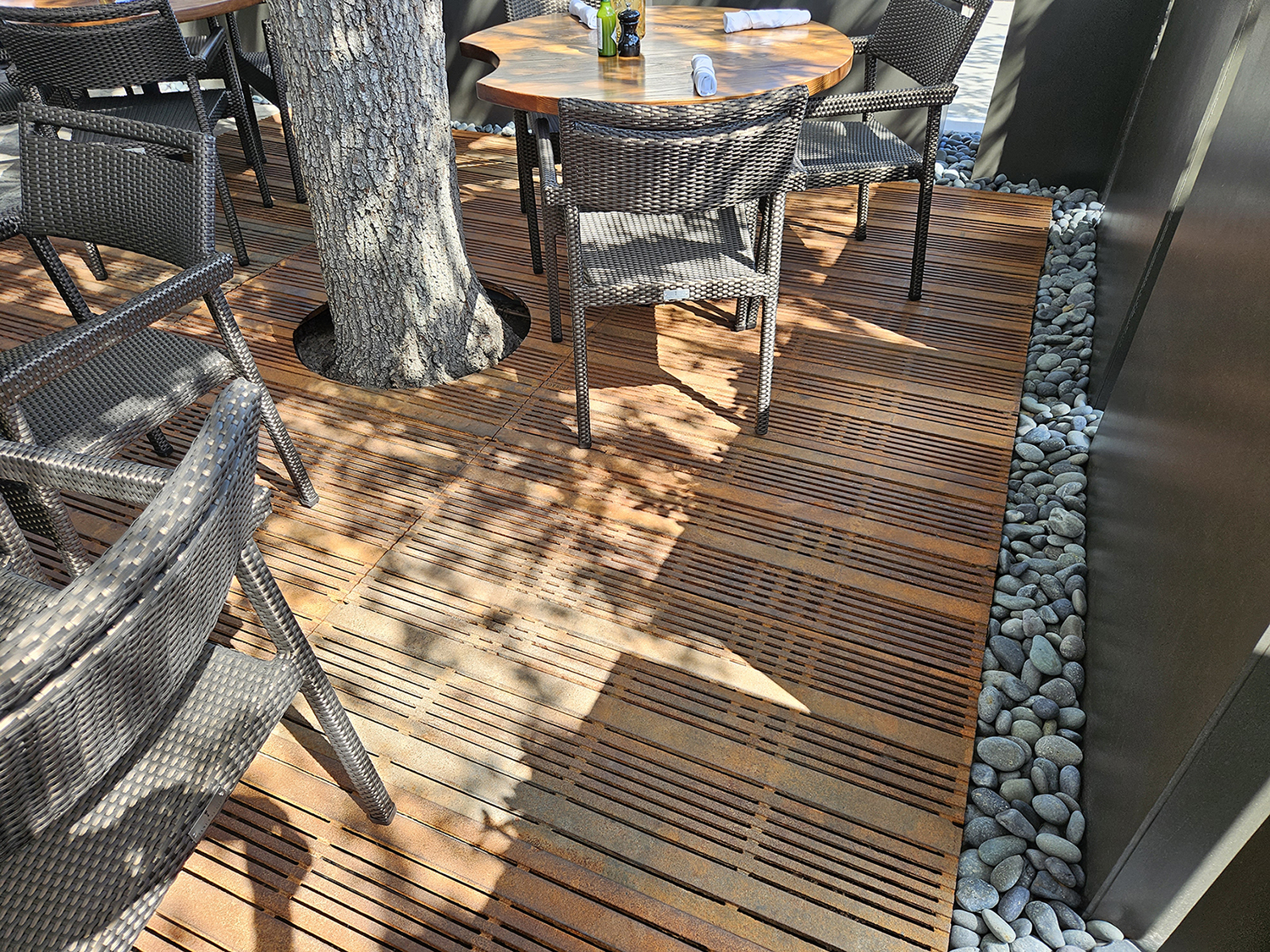

Madras 24″ x 48″ heel-proof grate panels in raw cast ductile iron, used to create a 12′ tree grate array. DESIGN: Michael Hsu Office of Architecture. PROJECT: Bobbie’s Airway Grill. LOCATION: Dallas, TX
Similar Products:

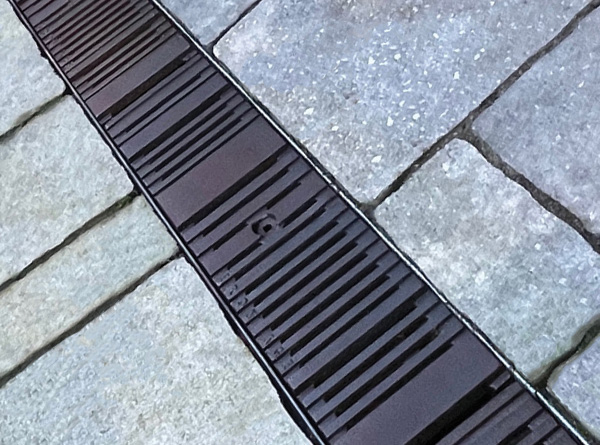

View additional products featuring the Madras design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
