Custom Grates
Custom Radius Trench Custom Grates
Iron Age collaborates with designers to translate complex geometries into buildable, long-lasting drainage solutions, with custom patterns and layouts that support broader placemaking strategies.
We also have 130+ existing patterns in a variety of designs, sizes, and radii. Visit Designing Radius Installations for a complete list.
Photo Gallery:
Click image for high-res file and description

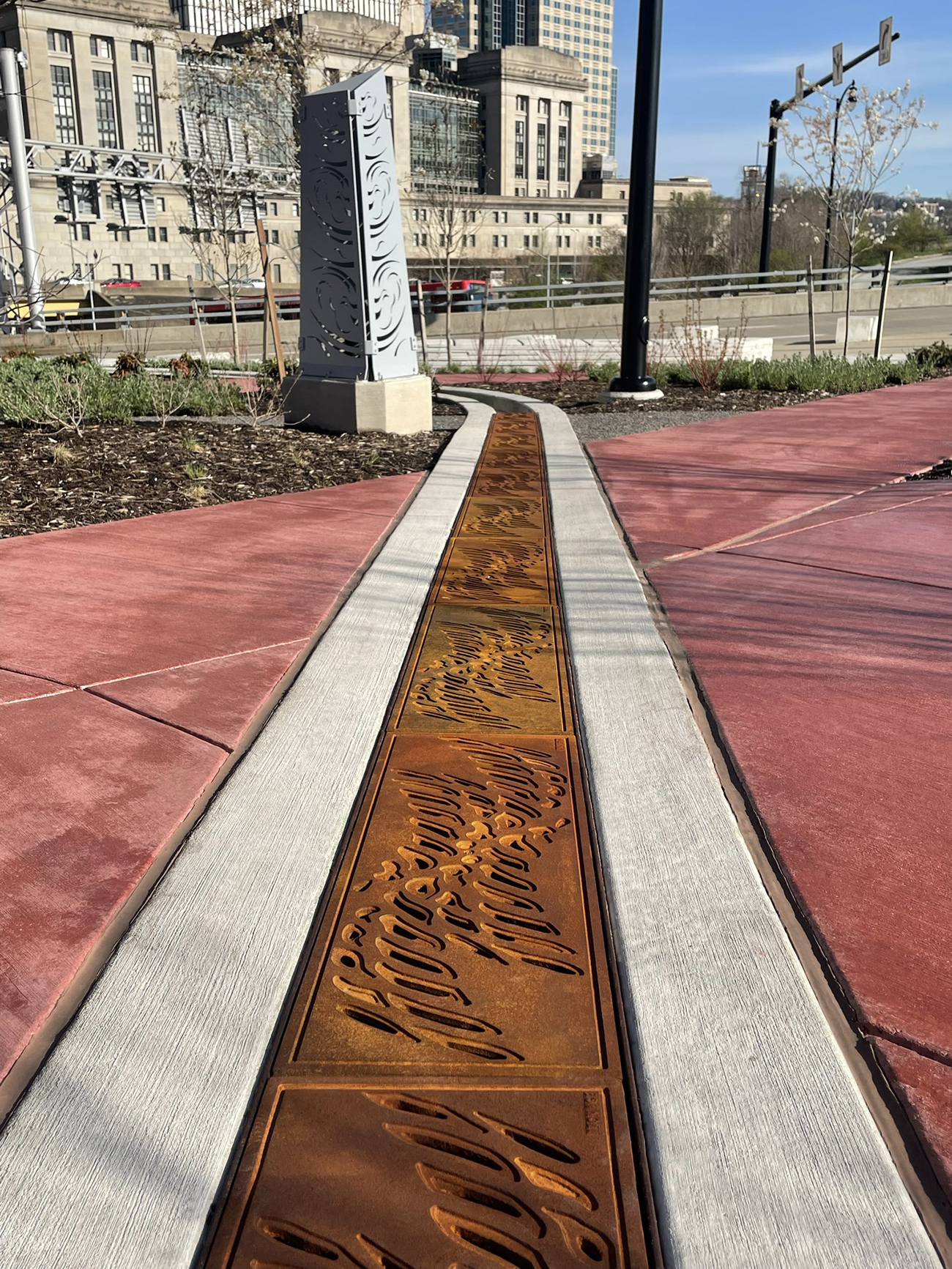

Custom 12″ wide radius trench grates with ‘braid’ pattern to match other elements of the project design. Raw cast ductile iron. DESIGN: LBA Landscape Architecture. PROJECT: Frankie Pace Park. LOCATION: Pittsburgh, PA.

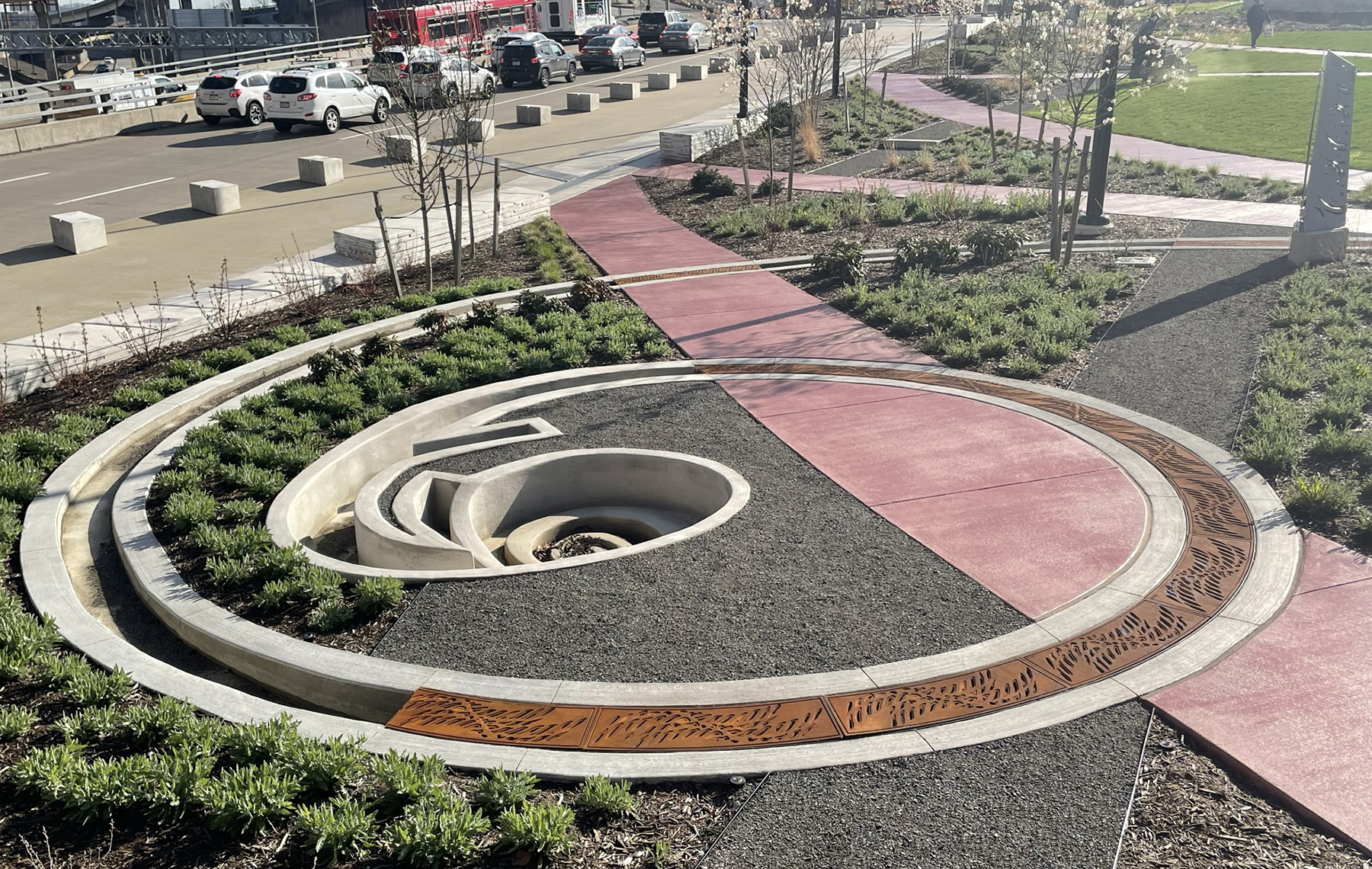

Custom 12″ wide radius trench grates with ‘braid’ pattern to match other elements of the project design. Raw cast ductile iron. DESIGN: LBA Landscape Architecture. PROJECT: Frankie Pace Park. LOCATION: Pittsburgh, PA.

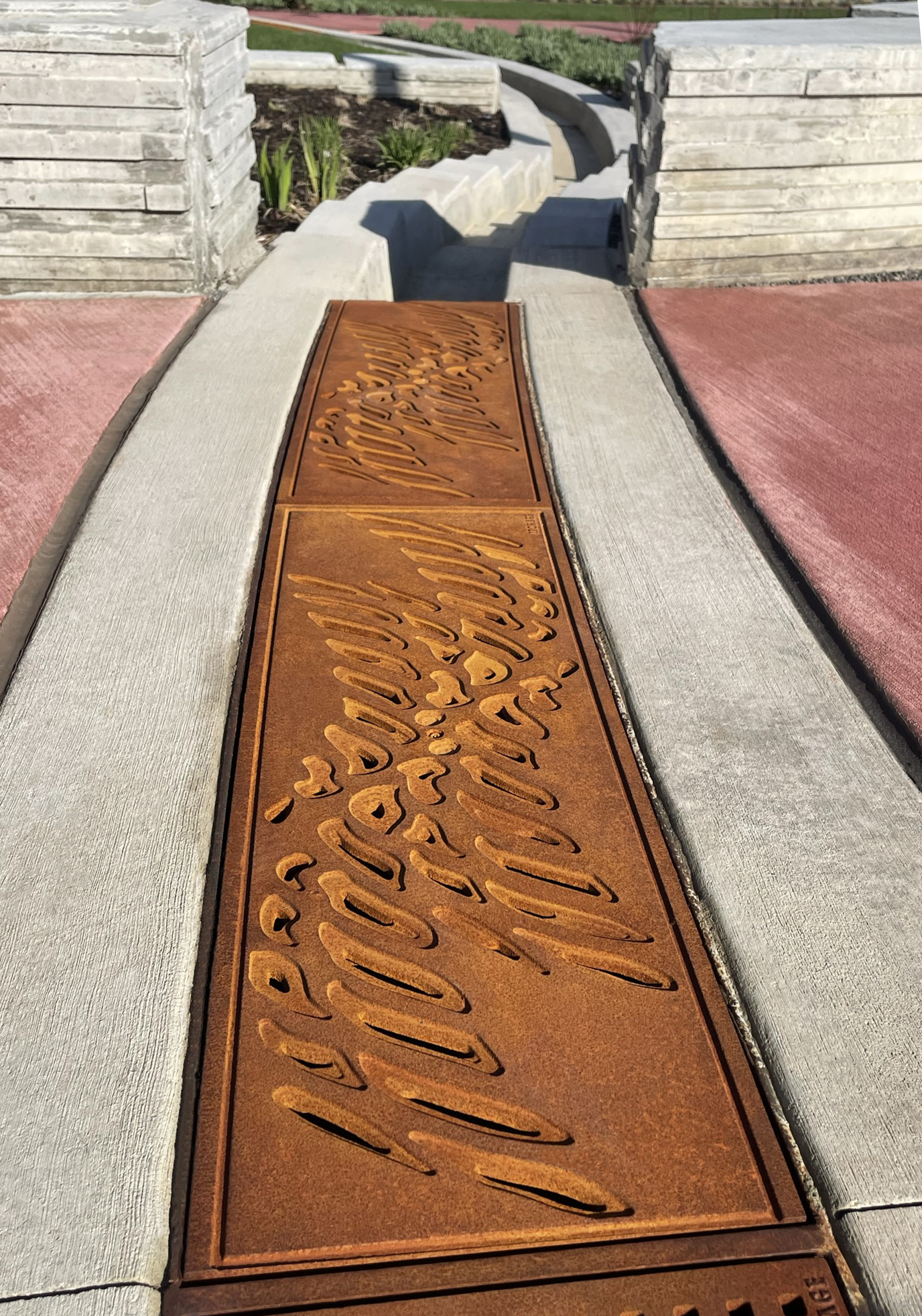

Custom 12″ wide radius trench grates with ‘braid’ pattern to match other elements of the project design. Raw cast ductile iron. DESIGN: LBA Landscape Architecture. PROJECT: Frankie Pace Park. LOCATION: Pittsburgh, PA.

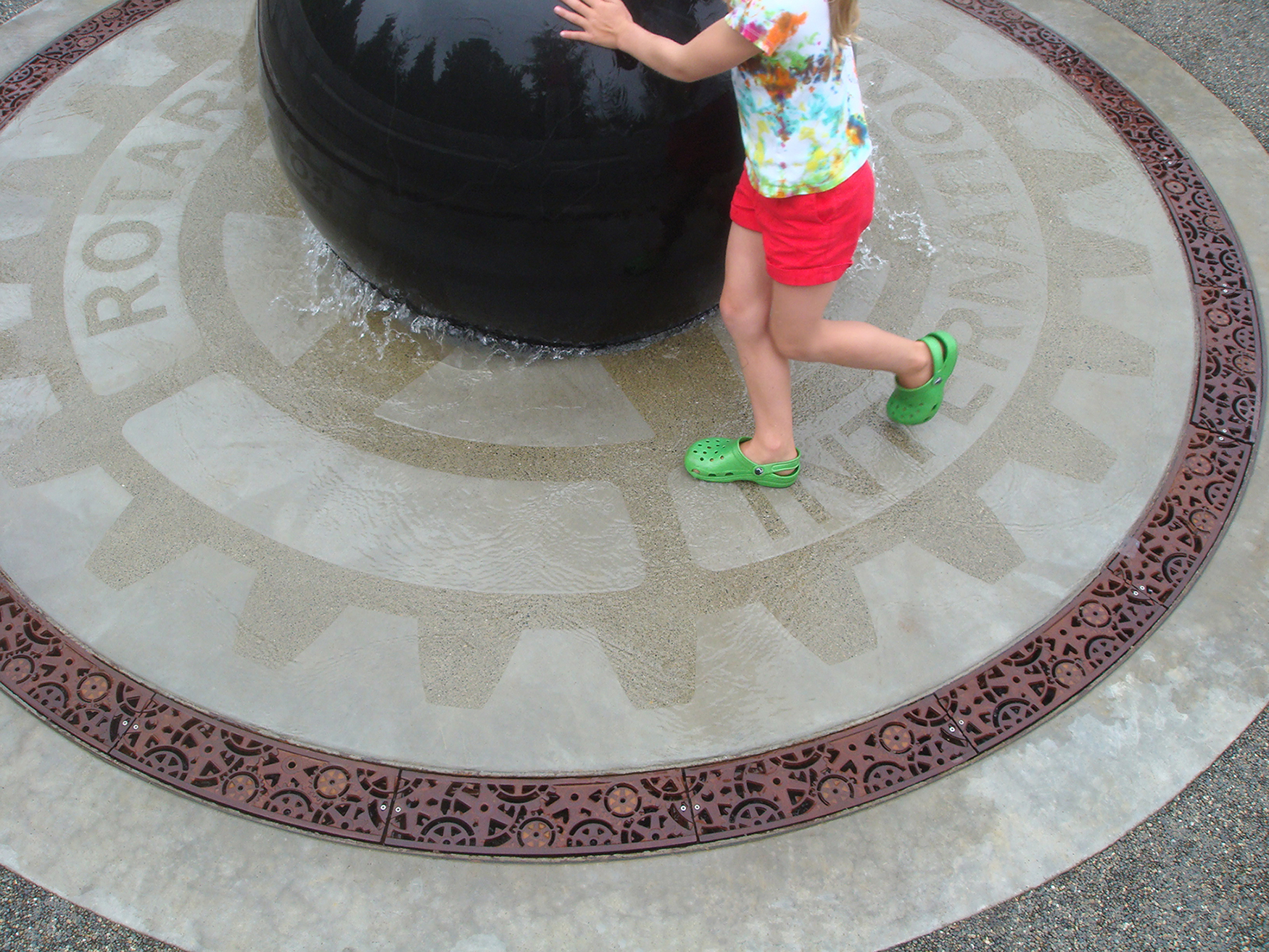

Custom “Rotary” radius trench grates with a design that later became our Dynamo pattern. Raw cast ductile iron. DESIGN: Richard VanDeMark Landscape Architect (funded by Bellevue Breakfast Rotary Club). PROJECT: Crossroads Water Spray Playground. LOCATION: Bellevue, WA.
Similar Products:
View additional products featuring the Custom Radius Trench design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
