Catch Basin Grates
Creole Catch Basin Grates
We paired the classic fleur-de-lis emblem with our elegant Flower Grid pattern to create Creole, an ornamental grate that adds a sophisticated flourish to any hardscape.
Select Size:
Detailed Specifications:
- Name / Design
- Creole 12" x 12"
- Product ID
- CRN12-12I12
- Dimensions
- 11.69" x 11.69" x 1.13"
- Drain Manufacturer
-
NDS®
- Fits
-
NDS® 1200 Series
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 15.27
- Free Drain Area
- 11.31%
- Gallons Per Minute (GPM)
- 20.24
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- Pending
Photo Gallery:
Click image for high-res file and description

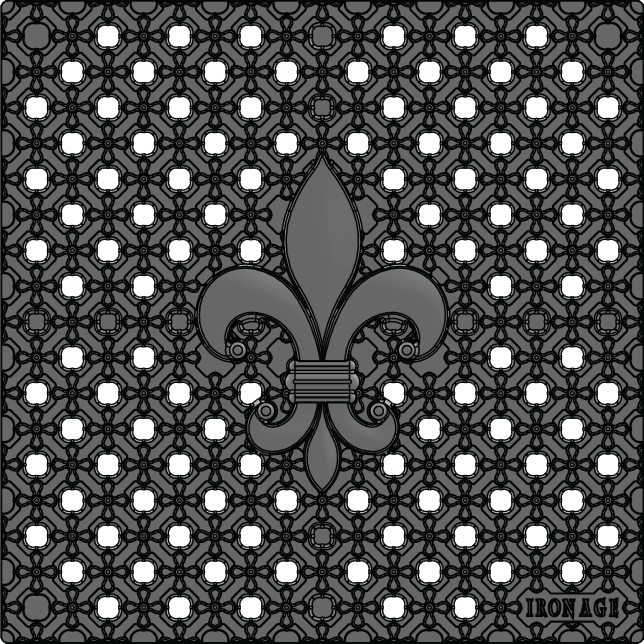

Creole 12″ x 12″ catch basin grate, cast iron with baked-on-oil finish. Shown installed in an NDS® 1200 Series drain body.
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
