Explora

Description:

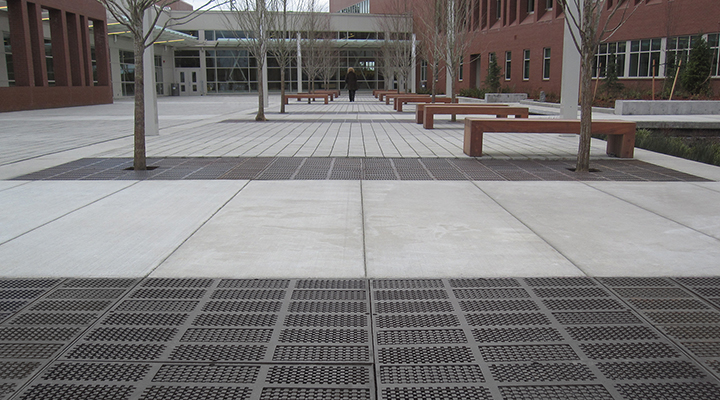

Our Explora pattern features a modular, industrial design motif that lends itself well to unique applications, such as grated walkways, large tree grate arrays and more.



Detailed Specifications:

Name / Design Explora 36" Sq. PEDESTRIAN LOAD ONLY
Product ID EXX36-36I99
Dimensions 35.94" x 35.94" x 1.25"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 127
Free Drain Area 8.98%
Gallons Per Minute (GPM) 151.97
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-007-107

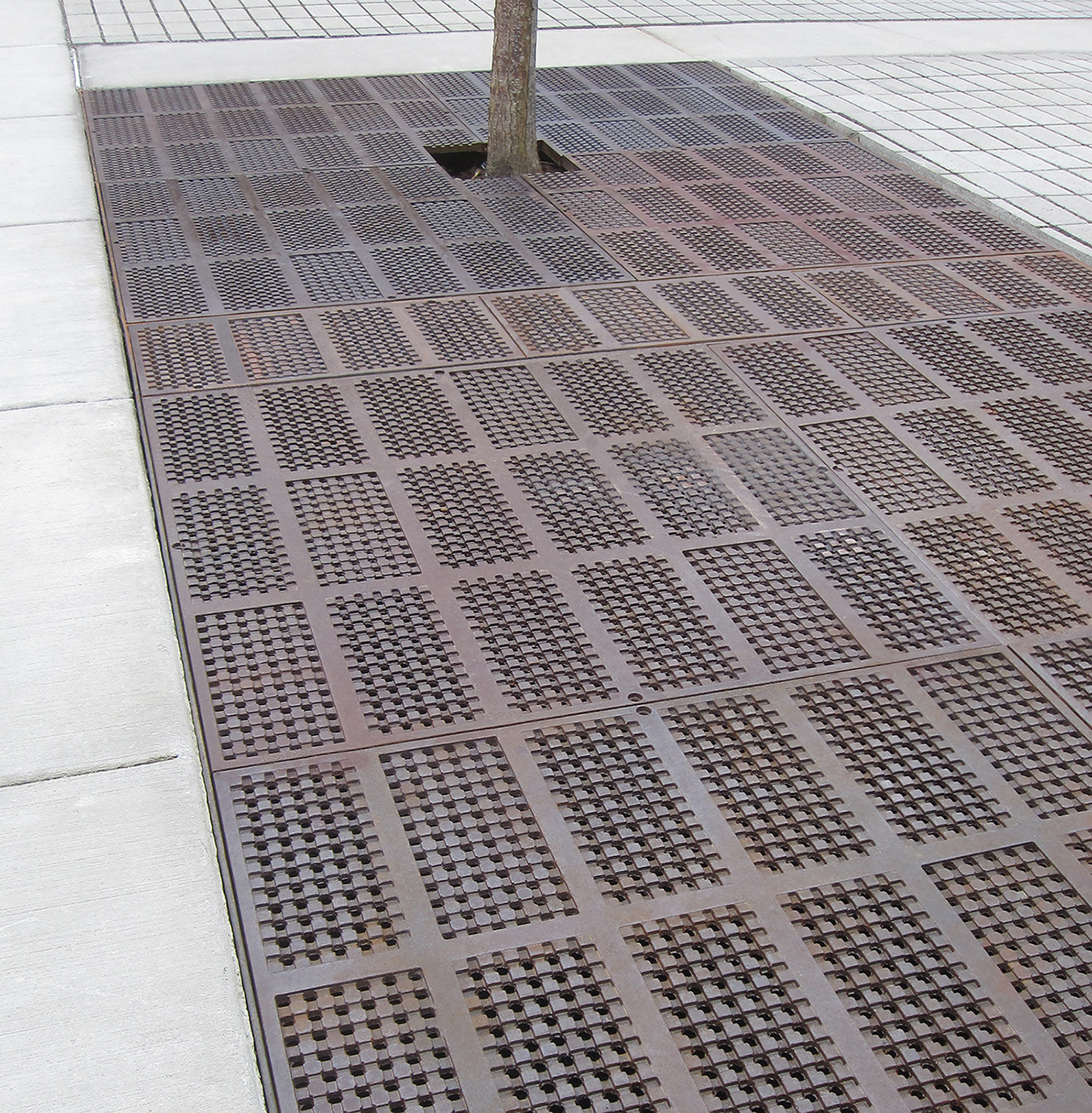

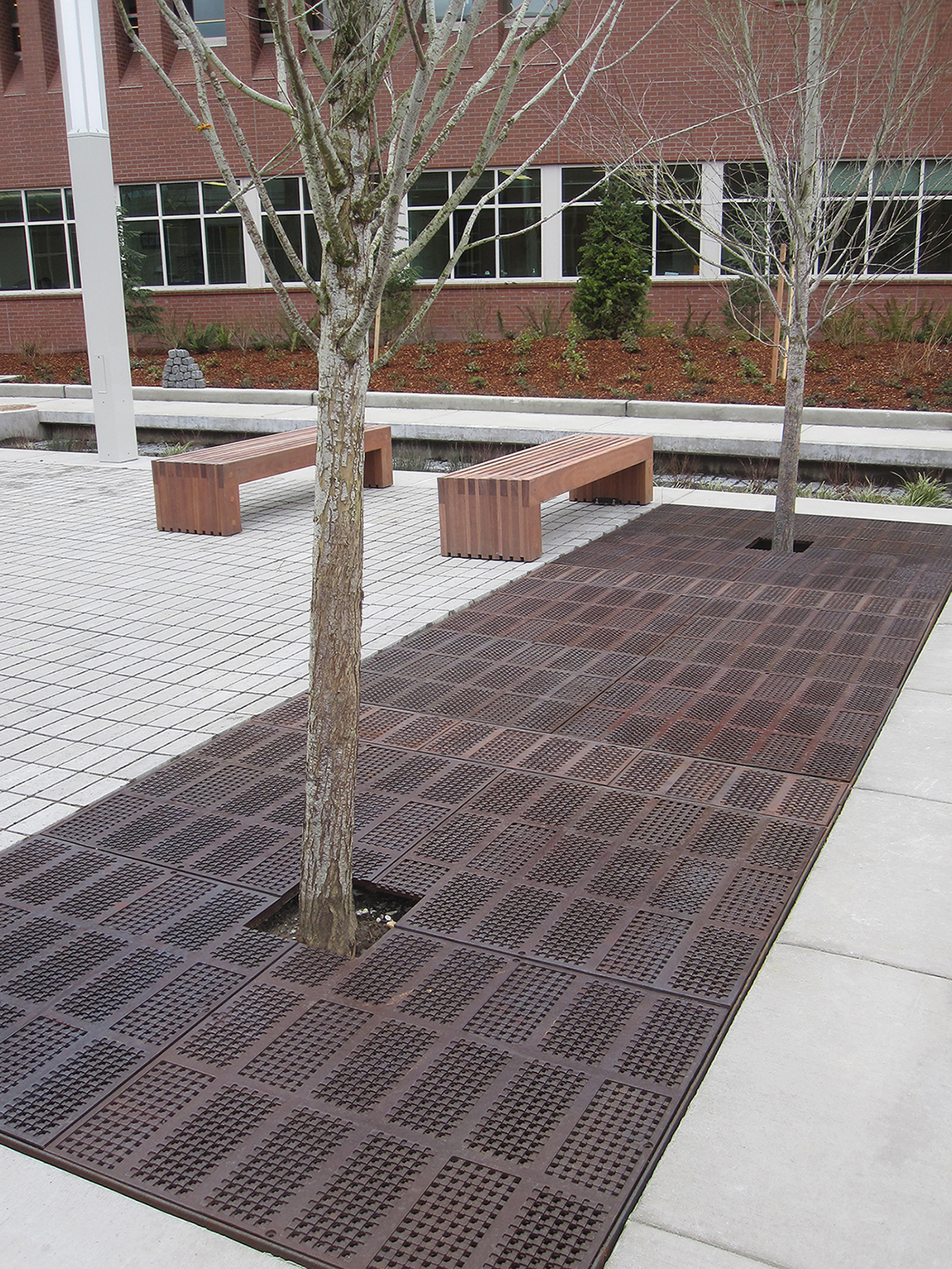

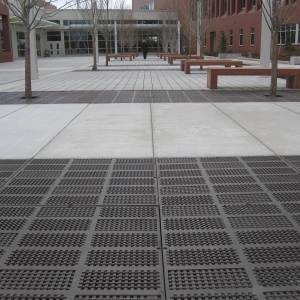

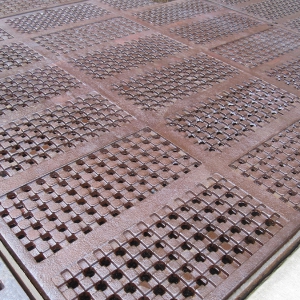

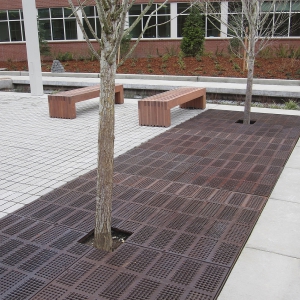

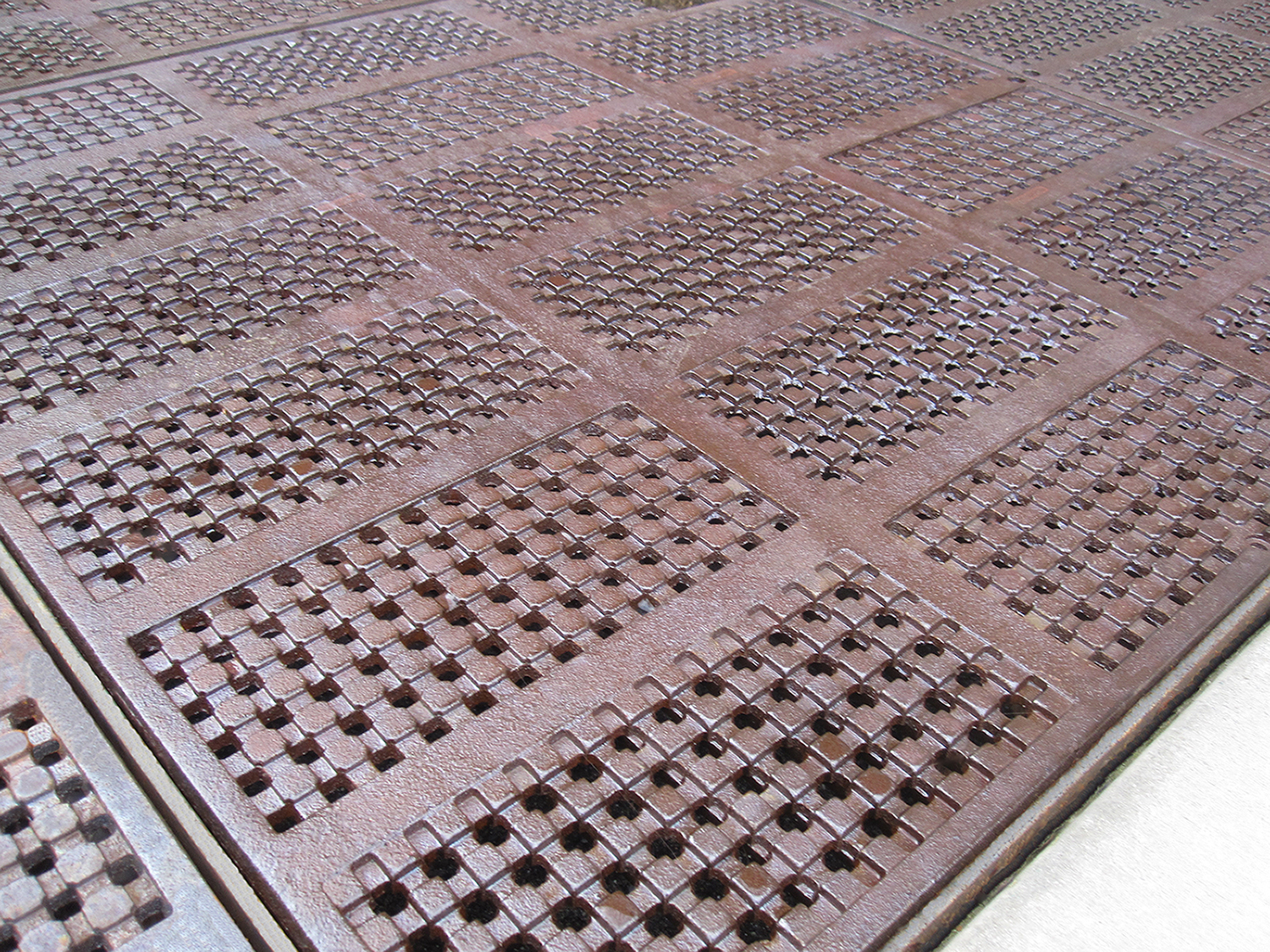

Photo Gallery:

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
