REGISTER COVER GUIDE

Register covers are often overlooked, but the right choice can elevate a space.

This resource provides an overview of Iron Age register covers, including design considerations, materials, measuring, installation guidance, and answers to common questions—so you can select and specify with confidence.

MATERIALS & LONGEVITY

Why Iron Age register covers look better—and last longer—than typical architectural registers

Most architectural register covers are fabricated from flat sheet metal—cut and welded into place—which results in a thin, utilitarian appearance with little surface detail.

Iron Age register covers are cast metal. Casting allows us to create a three-dimensional, sculptural piece with depth, texture, and visual interest that simply isn’t possible with fabricated products.

That added dimension gives our register covers a sense of weight and permanence—they feel intentional, not disposable. Cast metal also holds its shape over time, resisting bending or warping, and develops character rather than showing wear.

Whether installed in hardwood floors, tile, stone, or concrete, our register covers are designed to complement surrounding materials rather than compete with them.

Louvered Dampers
Louvered dampers—the adjustable slatted devices mounted behind a register cover to control airflow—are available on our website for the most common register sizes and are sold separately.

INSTALLING REGISTER COVERS

Simple steps for a clean, secure installation

Installing Iron Age register covers is straightforward and can typically be completed with basic tools. Louvered dampers—which control airflow—are available for the most common register sizes and are sold separately. They are installed behind the register cover as outlined below.

How to Install the Louver and Register Cover

Step 1: Select the correct louver

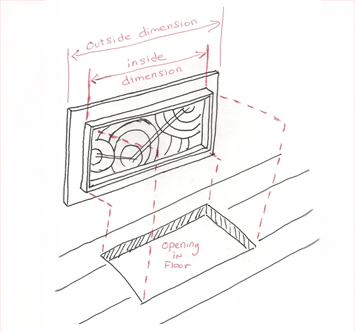

Choose a louvered damper that matches the inside dimensions of your opening.

Step 2: Set the louver depth
Place the louver deep enough in the duct so the register cover can sit flush on the surface above without interfering with the louver’s movement.

Step 3: Secure the louver
Attach the louver to the perimeter of the opening using coarse-thread drywall screws. This keeps the louver stable while allowing airflow to be adjusted as needed.

Step 4: Install the register cover
Set the Iron Age register cover over the opening. All register covers include drill points on the underside that can be drilled out if a screw-down installation is required, such as for wall or ceiling applications.

Step 5: Send us a picture!
Take a photo of your beautiful register cover in its new surroundings and send it to us at [email protected]. If we select your photo to use on our website, we’ll send you a register cover of your choice.

CUSTOM SIZES & SPECIAL APPLICATIONS

Understanding your options—and the tradeoffs involved

While Iron Age register covers are available in a range of standard sizes, some projects call for something outside the norm. Custom solutions are possible, but the approach—and cost—will depend on how far the request departs from standard sizing and geometry.

Option 1: Fully Custom Cast Register Covers
We can create entirely custom cast register covers, including new sizes or patterns developed specifically for a project. Because casting requires a dedicated pattern or mold, this option entails upfront tooling costs that typically run into the thousands. For this reason, fully custom casting is usually best suited for projects where design intent clearly outweighs tooling cost considerations.

Option 2: Cut or Fabricated Register Covers
For custom sizes where sculptural relief is less critical, register covers can be laser- or water-jet cut from flat metal. This approach is more cost-effective than creating a new casting pattern, but results in a flatter appearance compared to our cast designs.

Option 3: Adapting Existing Iron Age Products
In some cases, larger or non-standard openings can be accommodated by adapting one of our existing drainage grates for use as a register cover. This is often the most cost-effective solution and allows projects to achieve a custom result while leveraging proven patterns and materials.
