Products
Trench Grates
Sunset Trench Grates
A modern, geometric interpretation of a stepping-stone path, our Sunset pattern adds a unique decorative flair to any outdoor space.
Select Size:
Detailed Specifications:
- Name / Design
- Sunset 5" x 20"
- Product ID
- SA5-20I21
- Dimensions
- 4.81" x 19.44" x .81"
- Drain Manufacturer
-
ABT®ACO™Anrin™MEA®
- Fits
-
ABT® PolyDrain®
ACO™ K100, K100S, KS100
Anrin™ KE-100 Series
MEA® 1000 Series
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 10
- Free Drain Area
- 23%
- Gallons Per Minute (GPM)
- 30.13
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 2-159-691
Photo Gallery:
Click image for high-res file and description

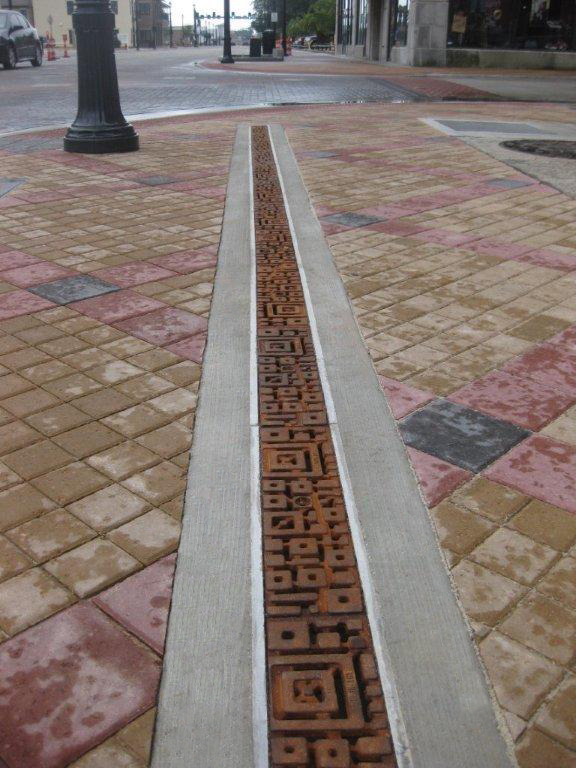

Sunset 5″ x 20″ trench grate, raw cast ductile iron. PROJECT: Ryan Street. LOCATION: Lake Charles, LA.

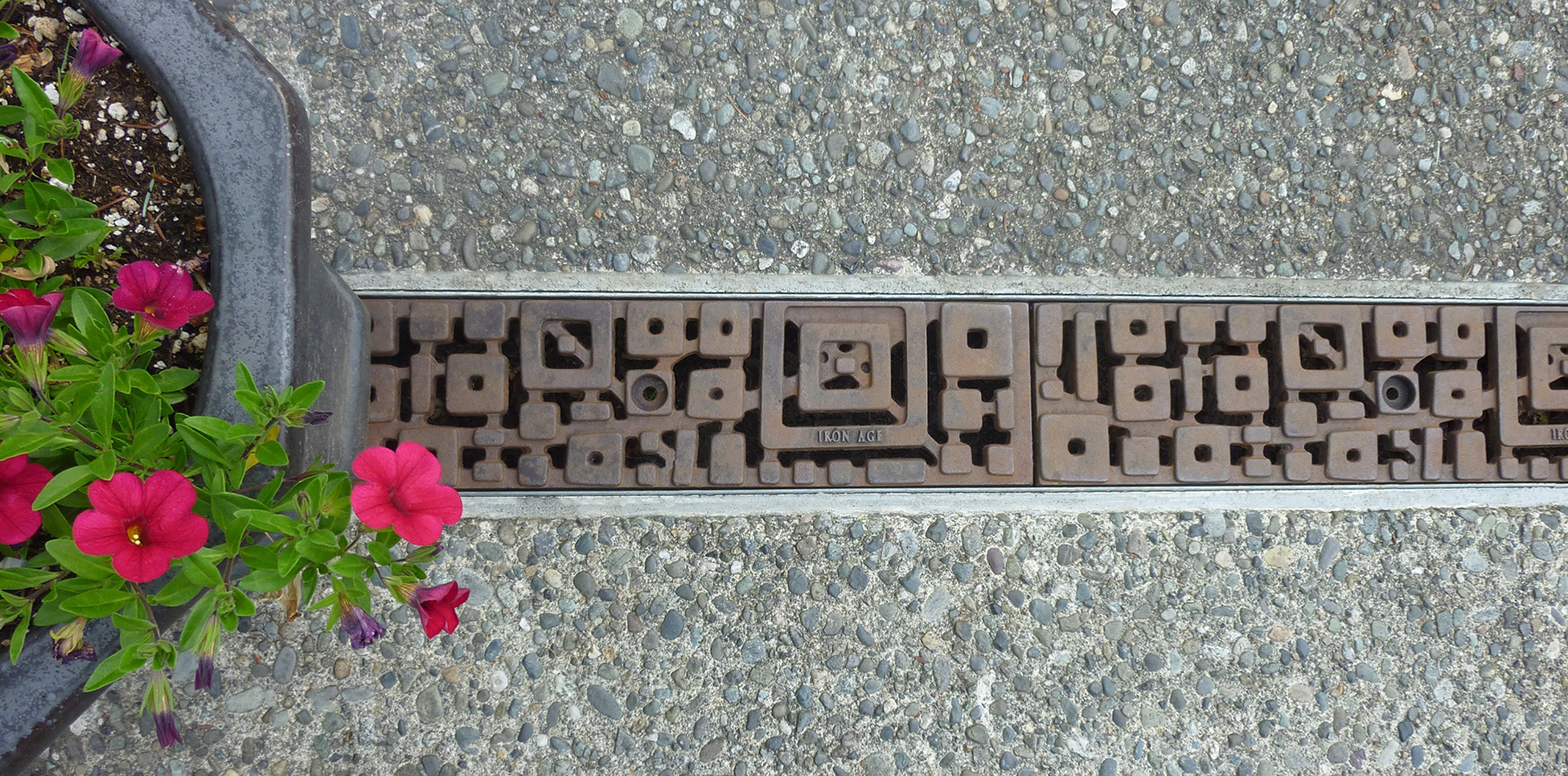

Sunset 5″ x 20″ trench grate, raw cast ductile iron. LOCATION: Seattle WA.
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
