Mission Bay

Description:

Squared-off perforations in a simple grid give our Mission Bay pattern a modern, clean look and heel-proof protection, ideal for contemporary outdoor spaces.





Detailed Specifications:

Name / Design Mission Bay 5' x 20" Heel Proof
Product ID MBA5-20I21HP
Dimensions 4.81" x 19.56" x .81"
Drain Manufacturer
ABT®
ACO™
MEA®
Fits ABT® PolyDrain®
ACO™ K100, K100S, KS100
MEA® 1000 Series
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 8.5
Free Drain Area 15%
Gallons Per Minute (GPM) 18.78
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-159-648
Name / Design Mission Bay 12" x 18" Heel Proof
Product ID MBX12-18I99HP
Dimensions 11.87" x 17.87" .75"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight 23
Free Drain Area 20%
Gallons Per Minute (GPM) 56.6
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

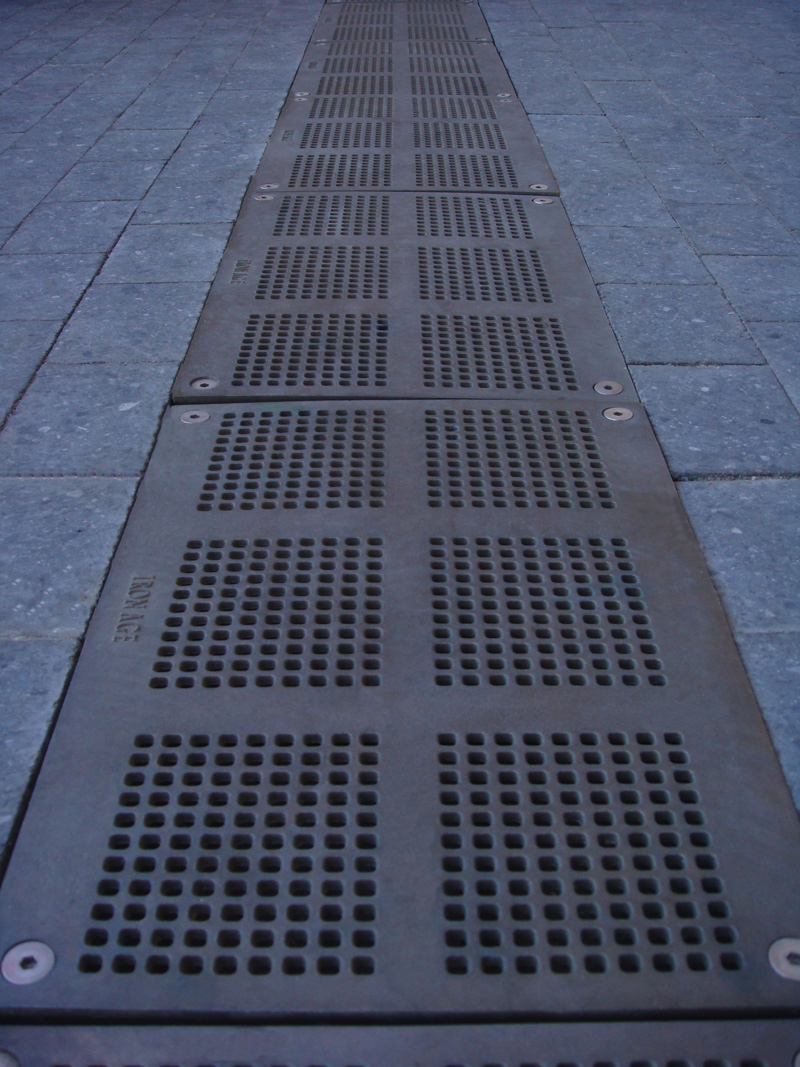

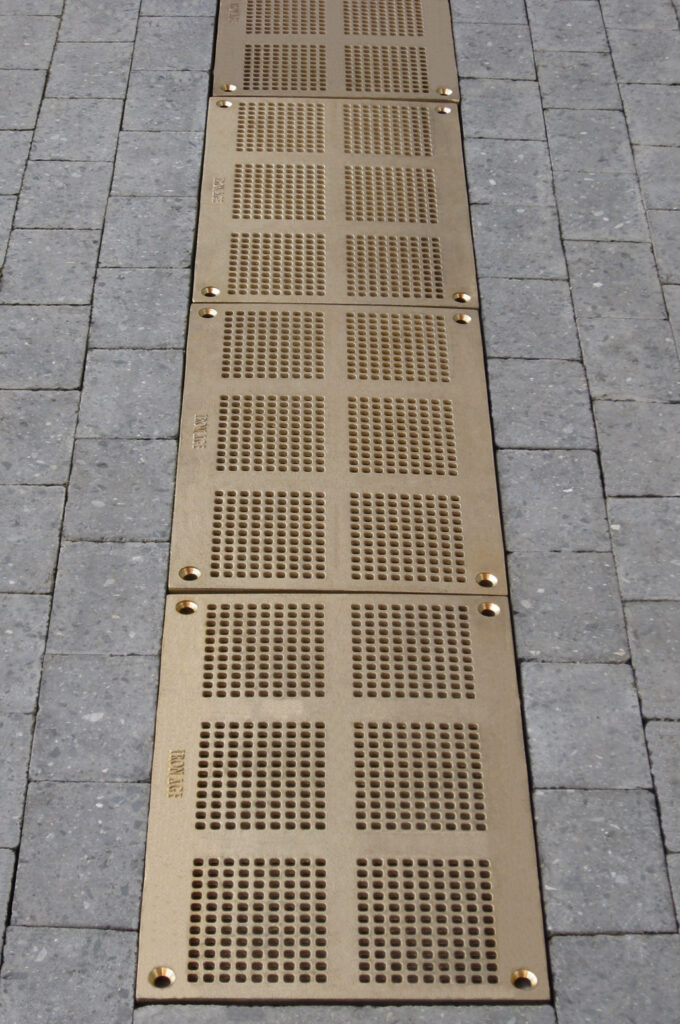

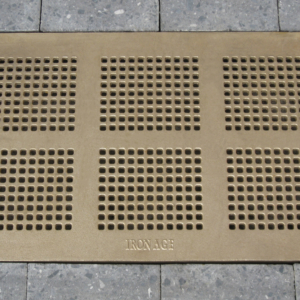

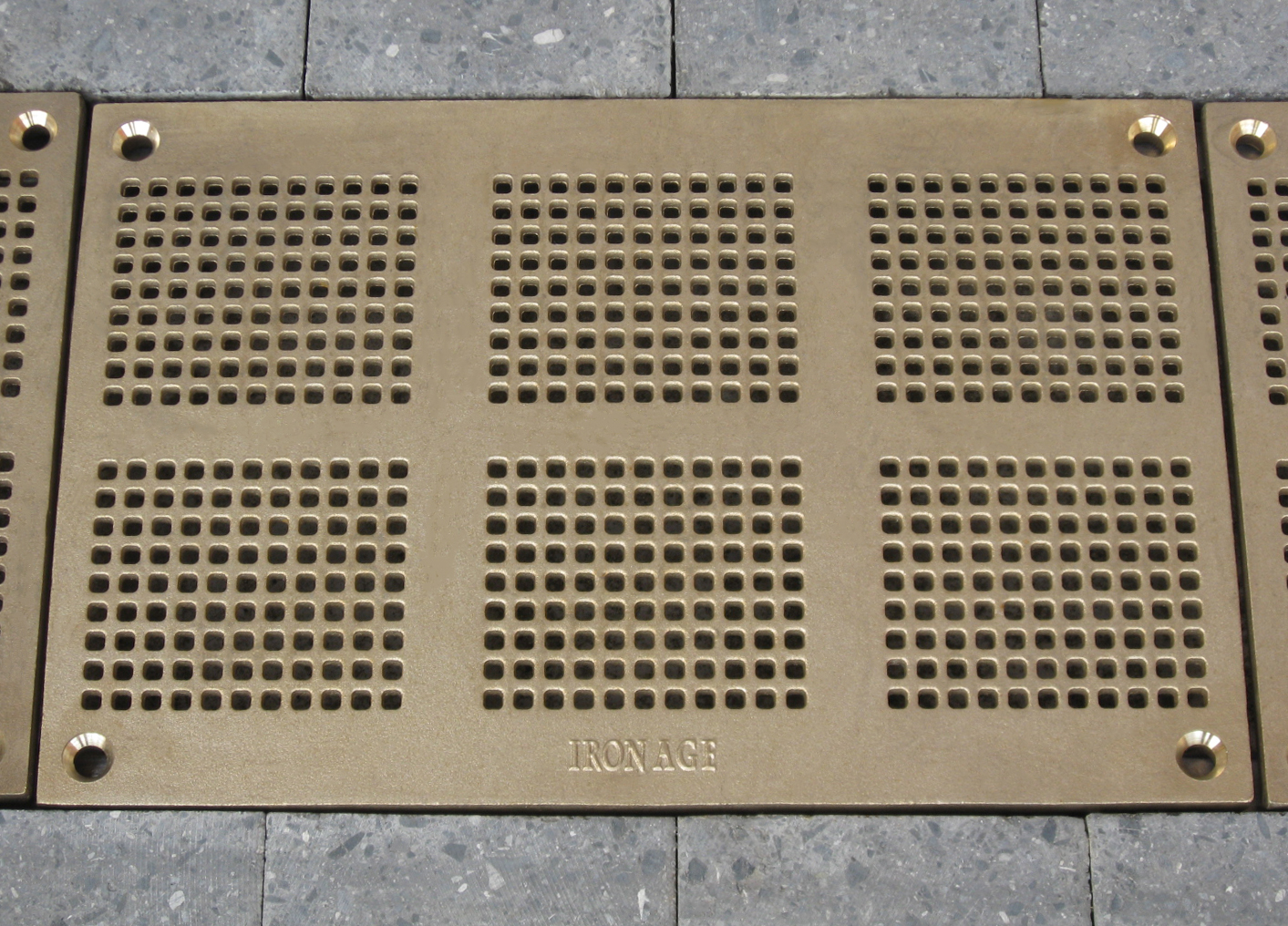

Photo Gallery:

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
