Catch Basin Grates
Sonoma Catch Basin Grates
The trademark refinement and surface detail inherent in our designs allows the Sonoma Catch Basin Grate to transcend its utilitarian roots and become something decidedly more appealing.
Select Size:
Detailed Specifications:
- Name / Design
- Sonoma 30" Dia. Heel-Proof, Heavy-Duty
- Product ID
- SOX30DiaI99HPHD
- Dimensions
- 30.00" Dia. x 1.50"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 142
- Free Drain Area
- 9.46%
- Gallons Per Minute (GPM)
- 87.66
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
Photo Gallery:
Click image for high-res file and description

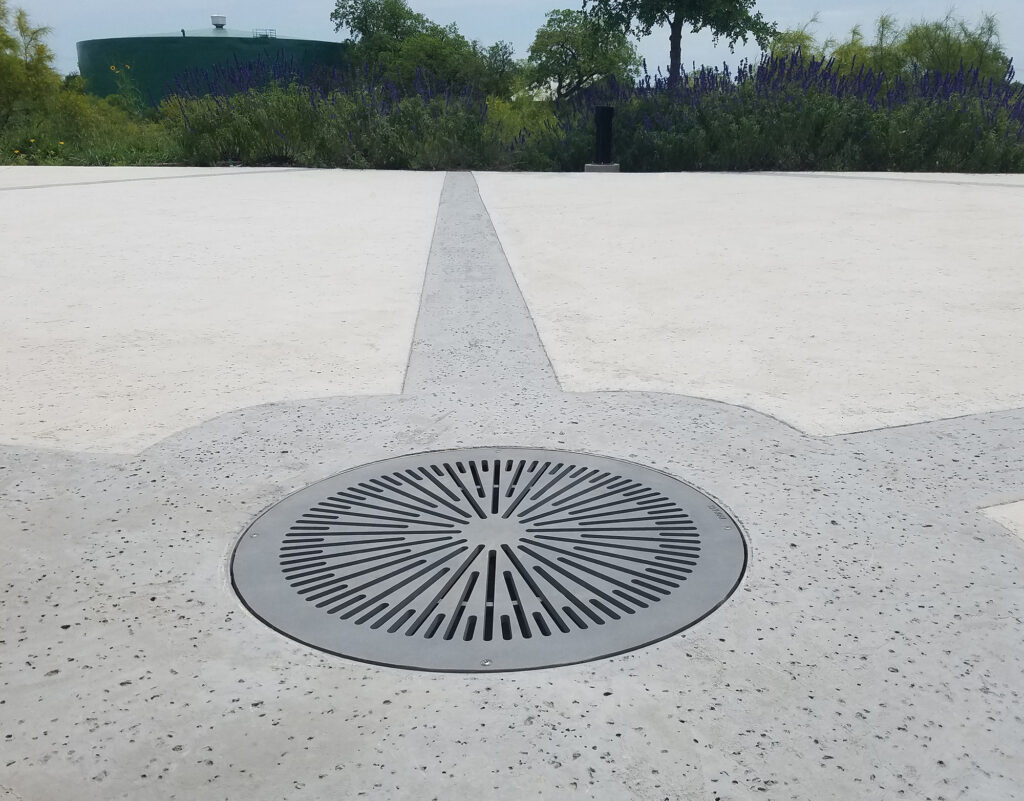

Sonoma 30″ dia. heel-proof, heavy-duty catch basin grate, cast aluminum with clear anodized finish. DESIGN:Â Rialto Studio, Inc./Jim Gray & Bobby Eichholz. INSTALLATION: SpawGlass Contractors, Inc.PROJECT: Confluence Park. LOCATION: San Antonio, TX.

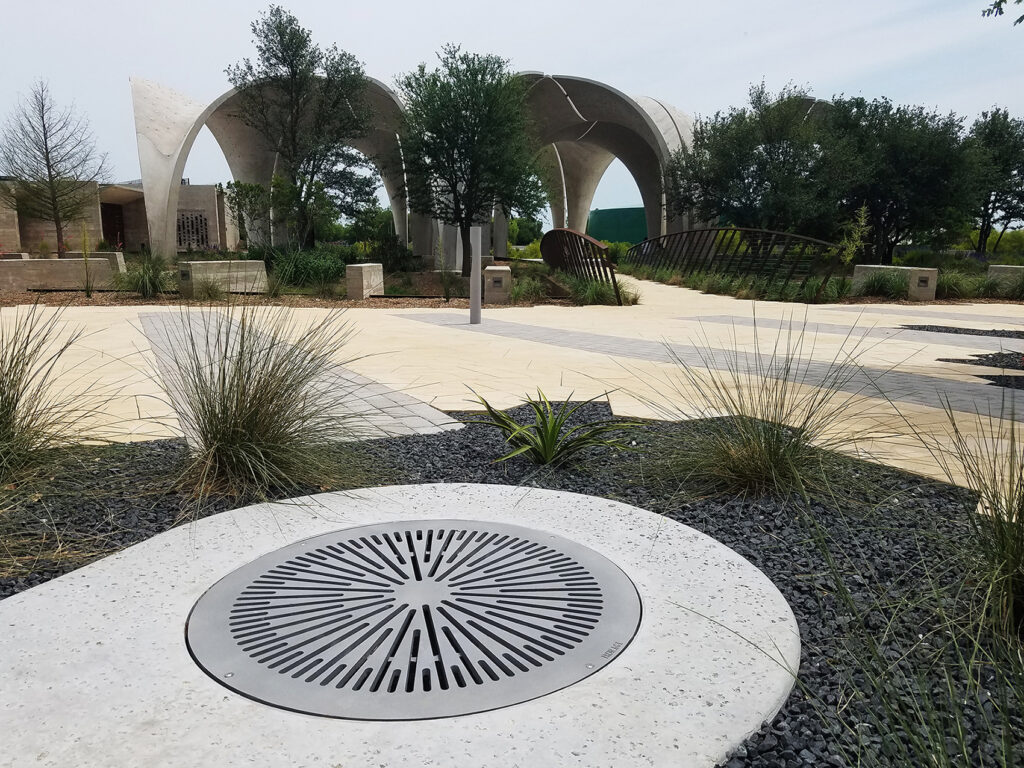

Sonoma 30″ dia. heel-proof, heavy-duty catch basin grate, cast aluminum with clear anodized finish. DESIGN:Â Rialto Studio, Inc./Jim Gray & Bobby Eichholz. INSTALLATION: SpawGlass Contractors, Inc.PROJECT: Confluence Park. LOCATION: San Antonio, TX.
Sonoma 30″ dia. heel-proof, heavy-duty catch basin grate, cast aluminum with clear anodized finish. DESIGN:Â Rialto Studio, Inc./Jim Gray & Bobby Eichholz. INSTALLATION: SpawGlass Contractors, Inc.PROJECT: Confluence Park. LOCATION: San Antonio, TX.
Similar Products:
View additional products featuring the Sonoma design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
