Sonoma

Description:

The trademark refinement and surface detail inherent in our designs allows the Sonoma Catch Basin Grate to transcend its utilitarian roots and become something decidedly more appealing.



Size Options:
Similar Products:

Detailed Specifications:

Name / Design Sonoma 30" Dia. Heel Proof, Heavy Duty
Product ID SOX30DiaI99HPHD
Dimensions 30.00" Dia. x 1.50"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finishes
  • Baked On Oil Finish
  • Powder Coat
Weight lb(s) 142
Free Drain Area 9.46%
Gallons Per Minute (GPM) 87.66
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze

Photo Gallery:

?????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

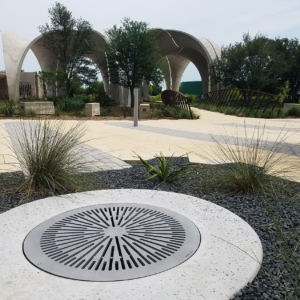

Sonoma 30″ Dia. catch basin grate, cast aluminum with clear anodized finish. Project: Confluence Park, San Antonio, TX. Landscape Architect: Rialto Studio, Inc./Jim Gray & Bobby Eichholz. Installation: SpawGlass Contractors, Inc.


Download photo
?????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

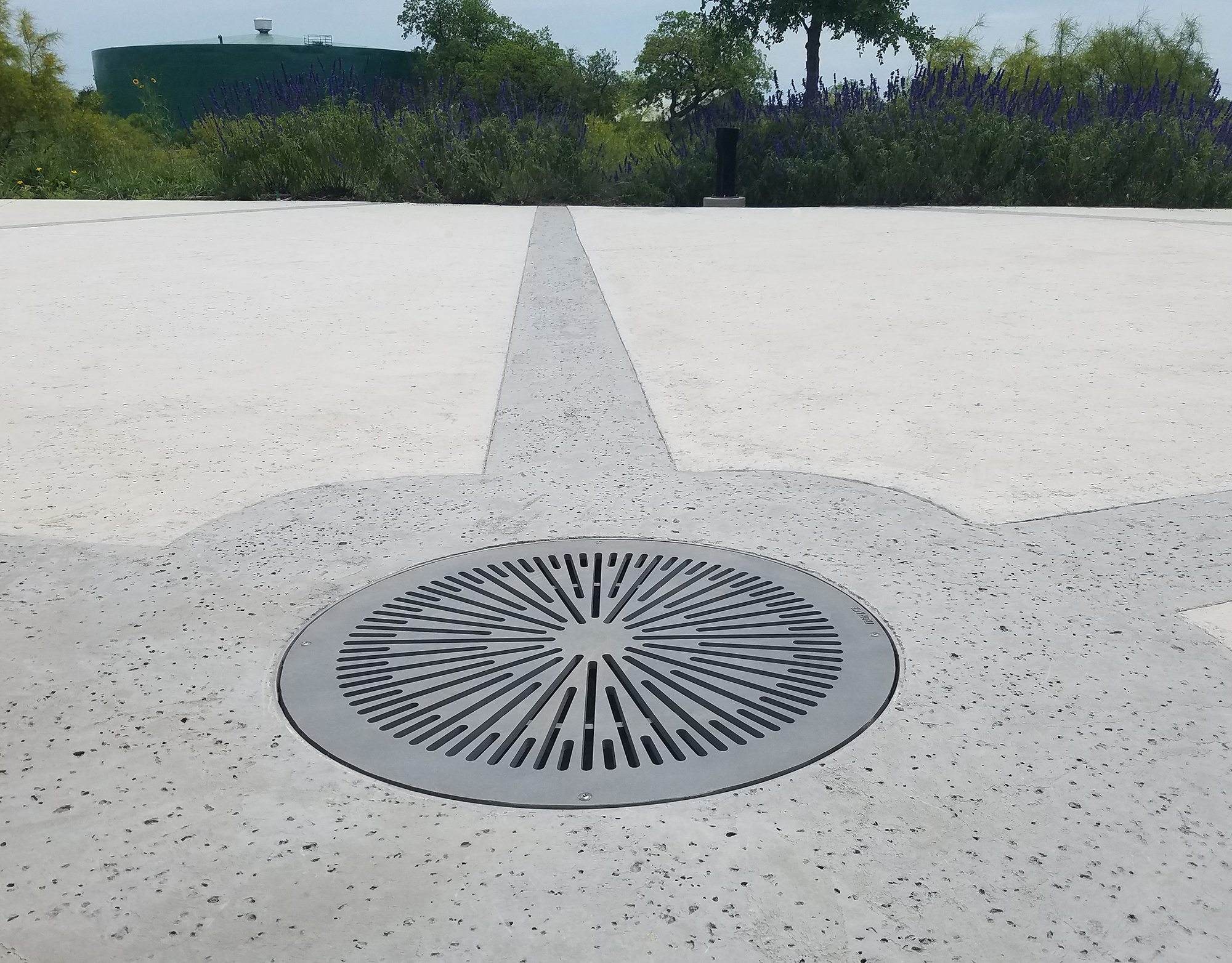

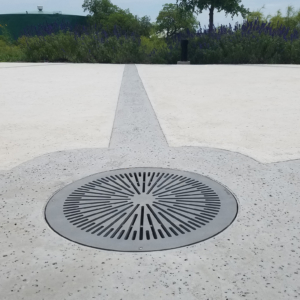

Sonoma 30″ Dia. catch basin grate, cast aluminum with clear anodized finish. Project: Confluence Park, San Antonio, TX. Landscape Architect: Rialto Studio, Inc./Jim Gray & Bobby Eichholz. Installation: SpawGlass Contractors, Inc.


Download photo
?????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

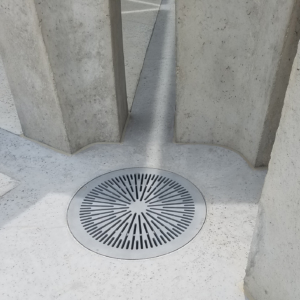

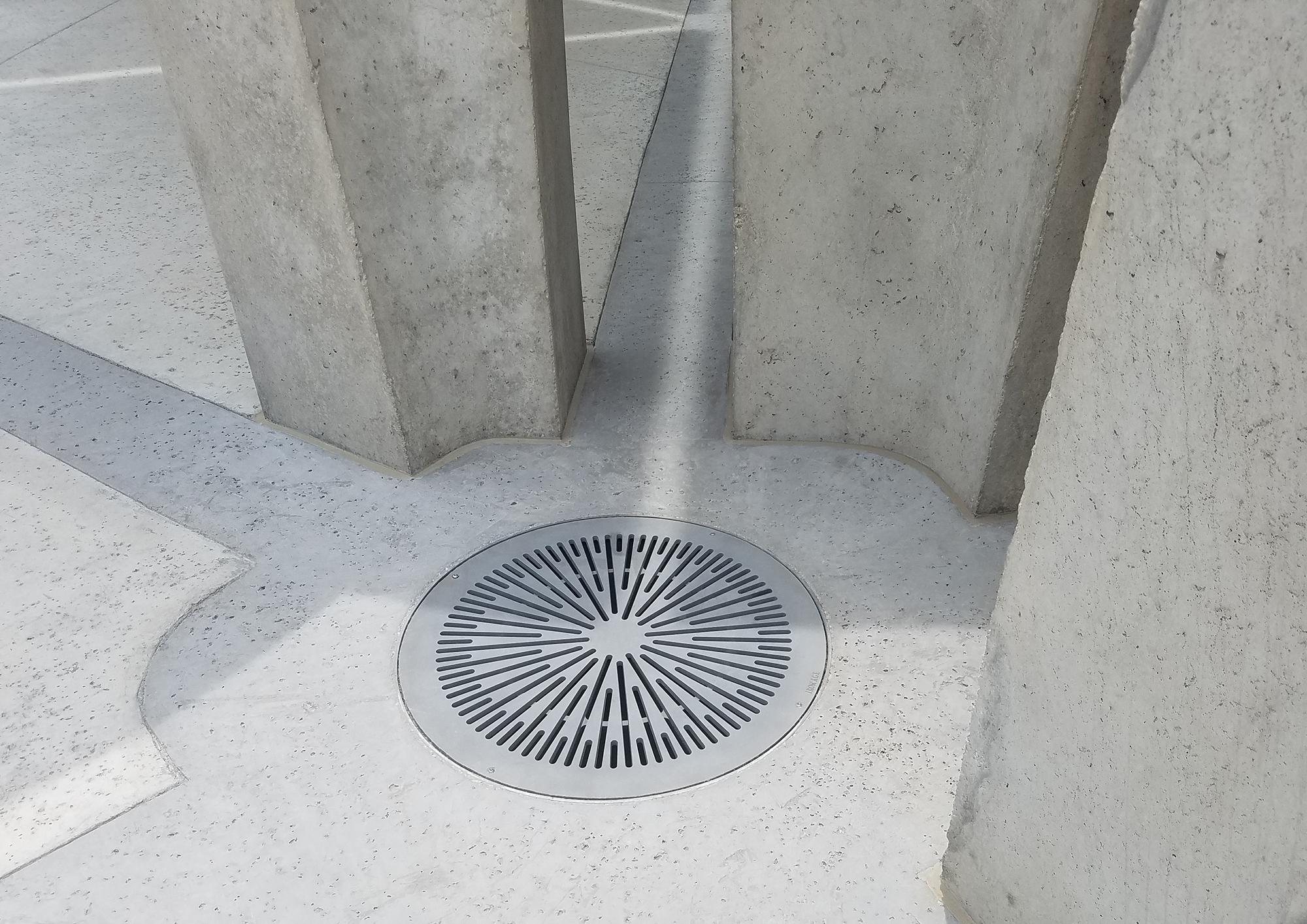

Sonoma 30″ Dia. catch basin grate, cast aluminum with clear anodized finish. Project: Confluence Park, San Antonio, TX. Landscape Architect: Rialto Studio, Inc./Jim Gray & Bobby Eichholz. Installation: SpawGlass Contractors, Inc.


Download photo
Filter Products
  • By Category
  • By Design
  • By Size
  • By Drain System
Reset Filters

Contact Us Or, Find a Rep Near You

We Do Custom Learn more

Questions about pricing? See Our FAQ

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
