Acanthus Trench Grates
A staple of art and architecture since ancient times, the acanthus plant symbolizes enduring life, making it a perfect motif for this classic, ageless design.
Select Size:
Detailed Specifications:
- Name / Design
- Acanthus 3" x 12"
- Product ID
- ACN3-12I01
- Dimensions
- 2.77" x 11.94" x .31"
- Drain Manufacturer
-
NDS®
- Fits
-
NDS® Mini-Channel
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 1.88
- Free Drain Area
- 14.96%
- Gallons Per Minute (GPM)
- 6.46
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 1-970-746
Photo Gallery:
Click image for high-res file and description

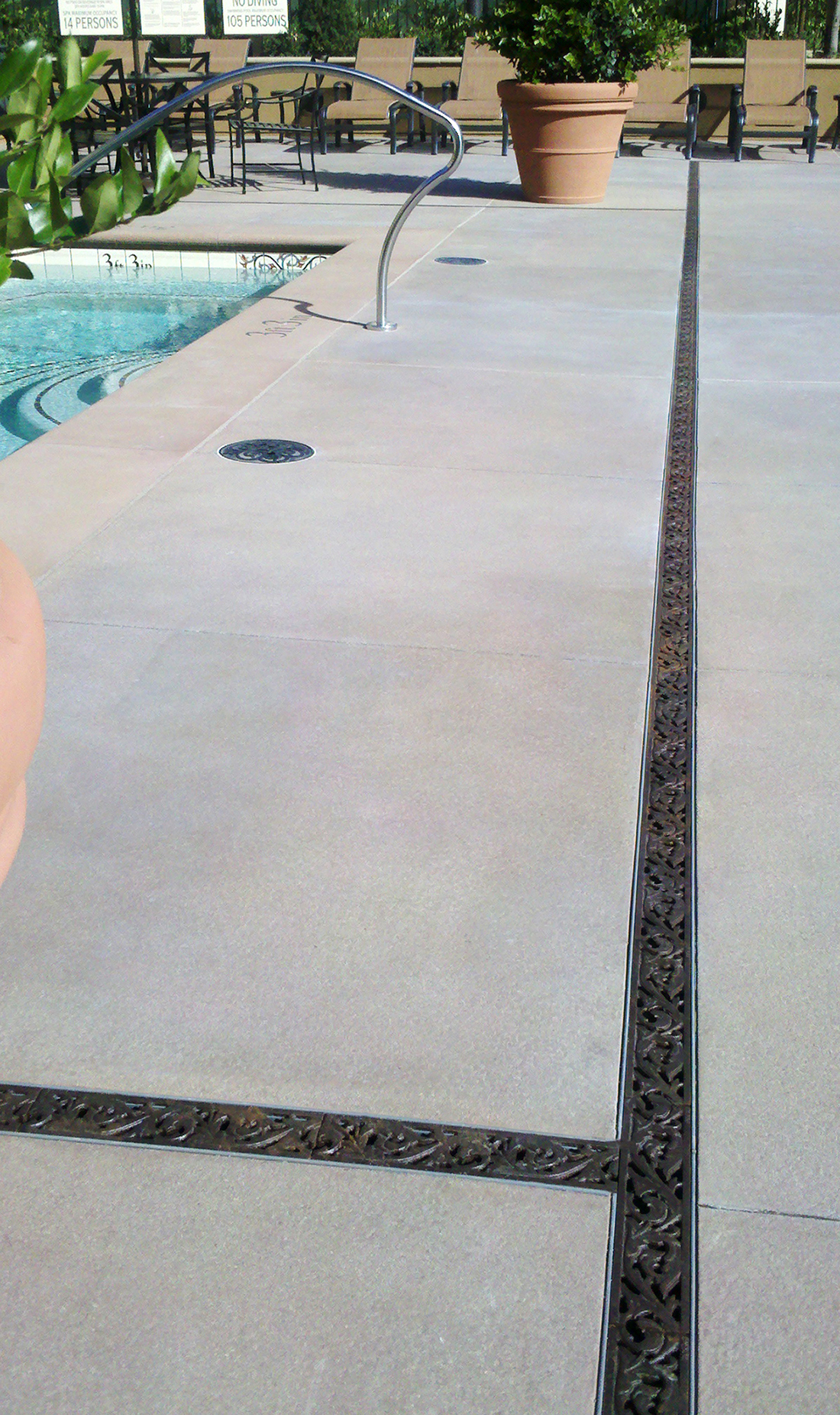

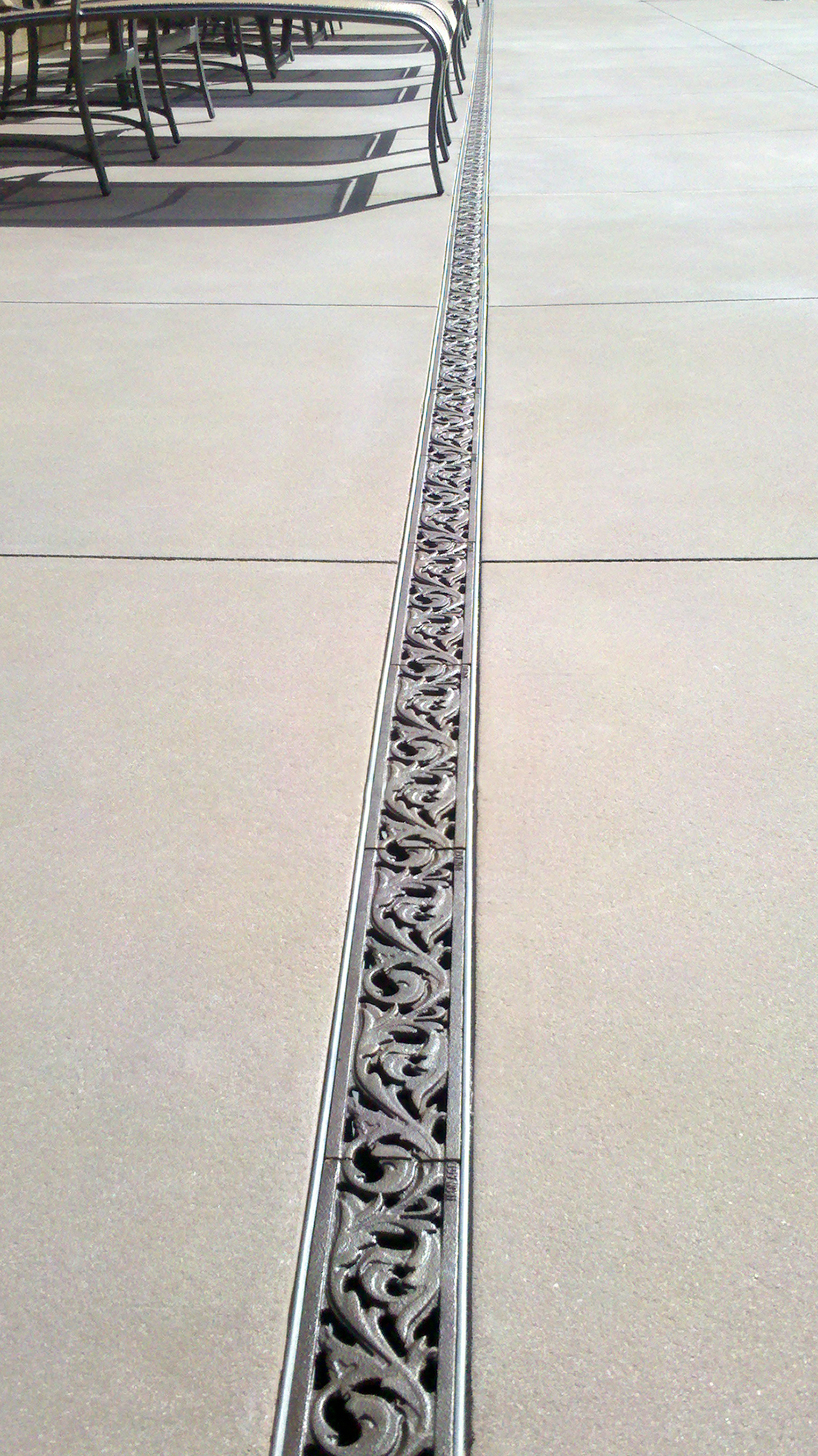

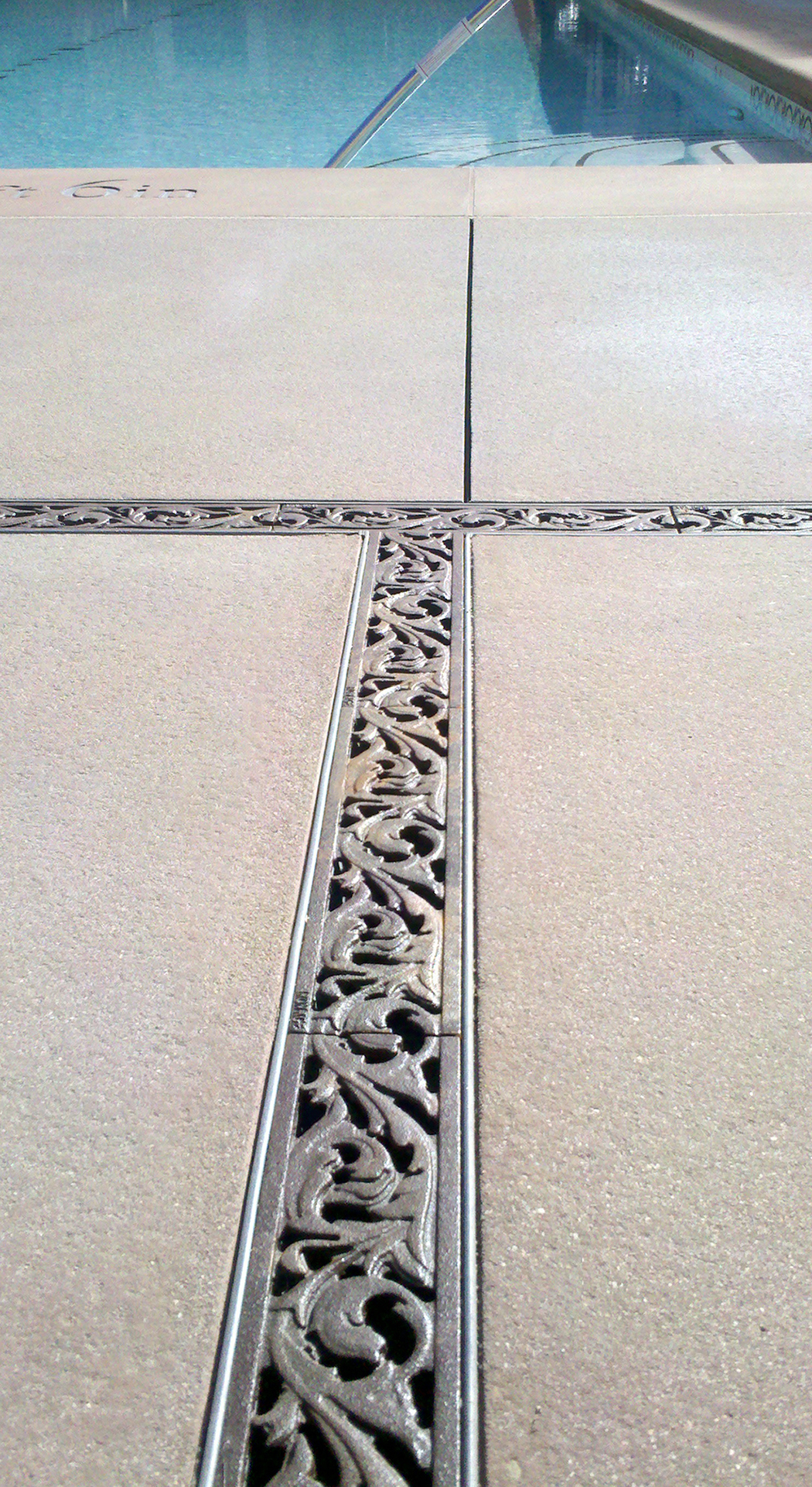

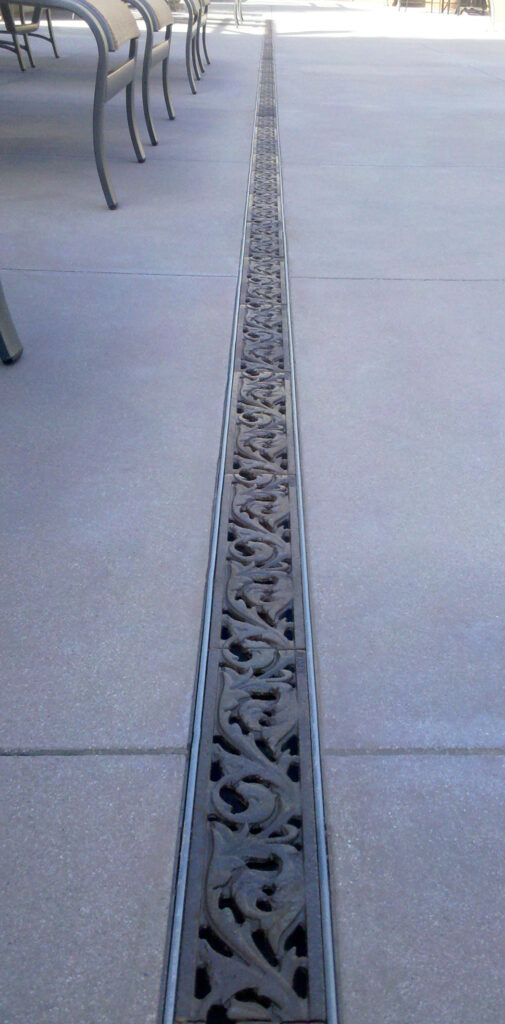

Acanthus 3″ x 12″ trench grate, raw cast ductile iron. Project Location: San Jose, CA.
Acanthus 3″ x 12″ trench grate, raw cast ductile iron. Project Location: San Jose, CA.
Acanthus 3″ x 12″ trench grate, raw cast ductile iron. Project Location: San Jose, CA.
Acanthus 3″ x 12″ trench grate, raw cast ductile iron. Project Location: San Jose, CA.

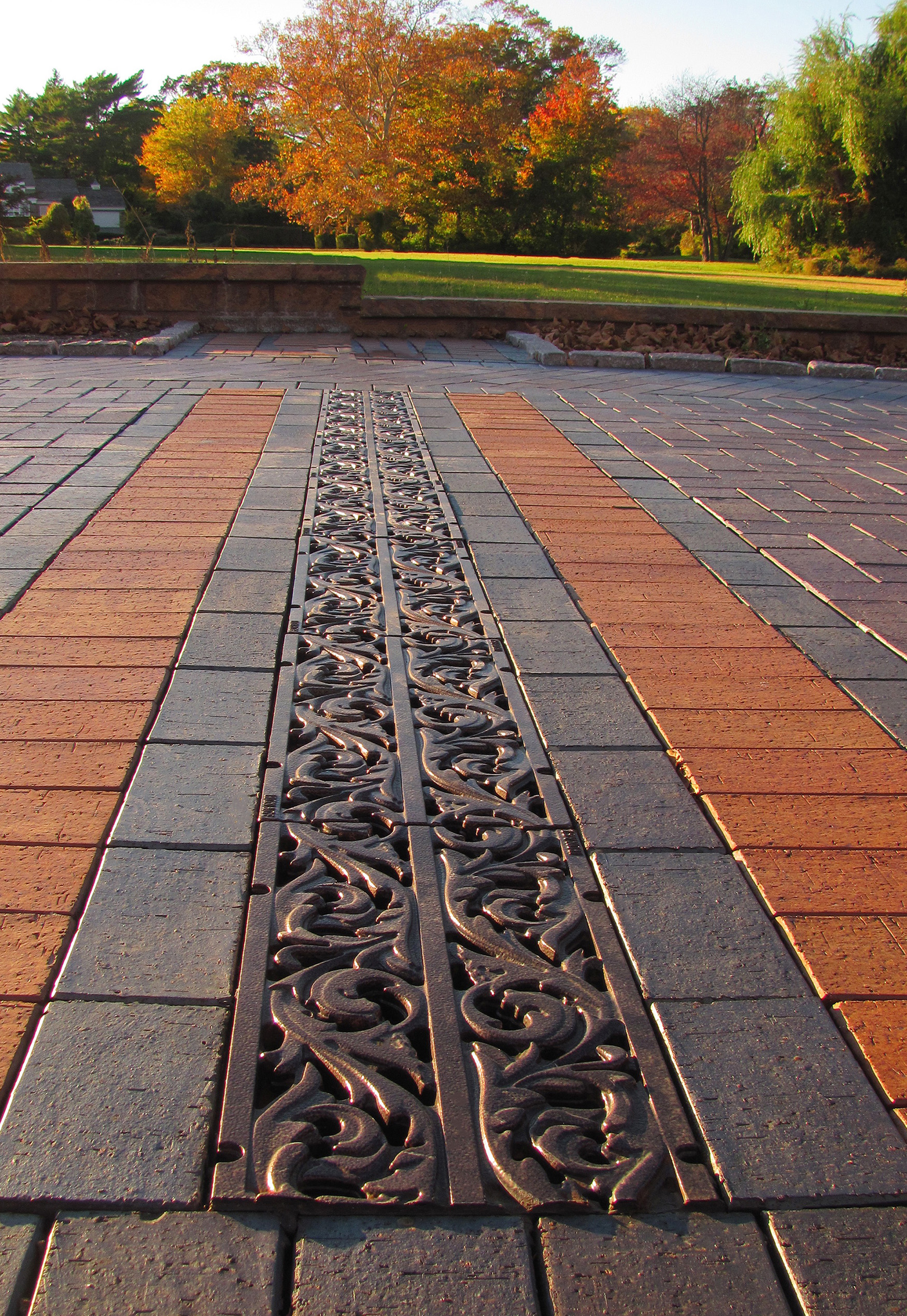

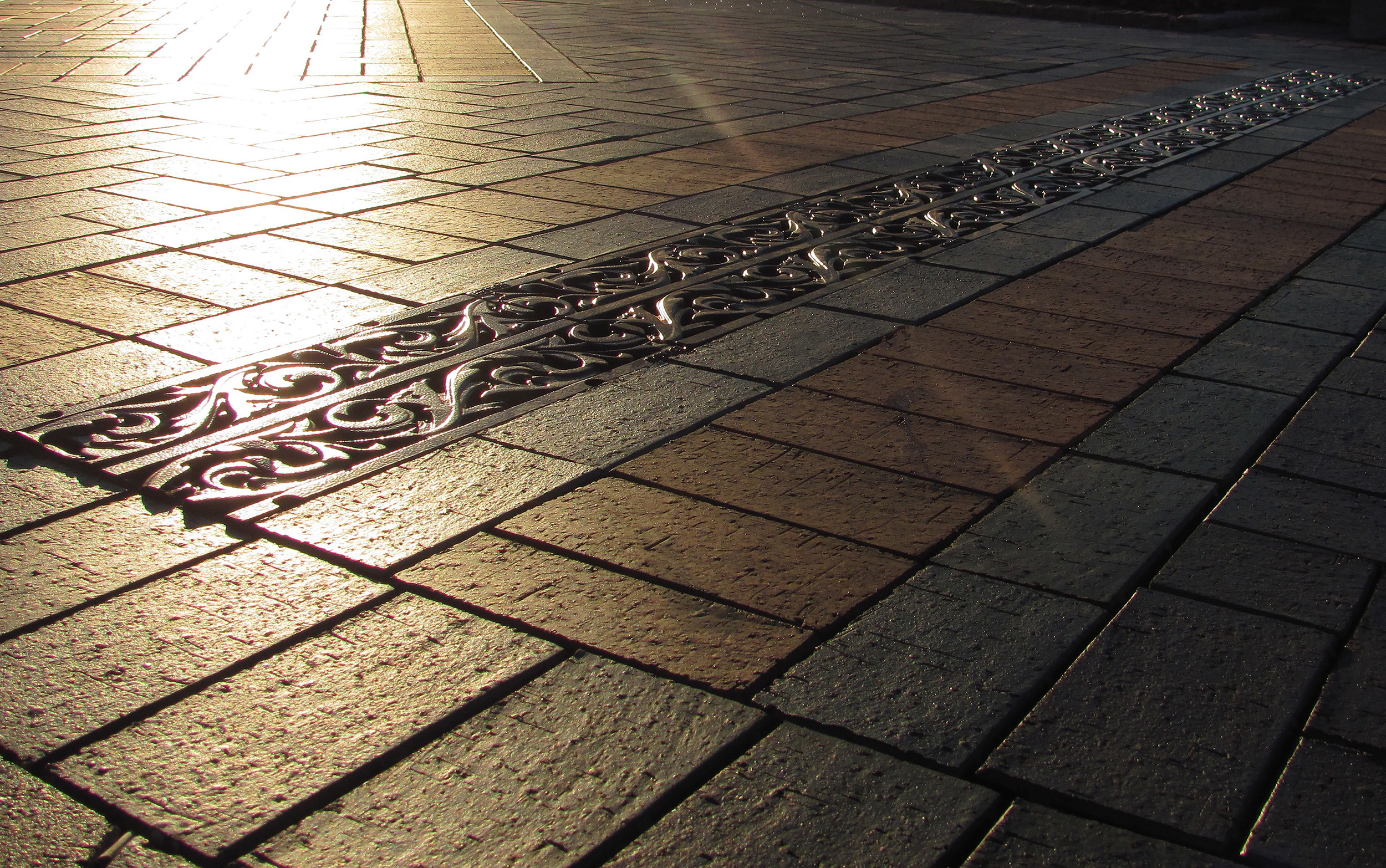

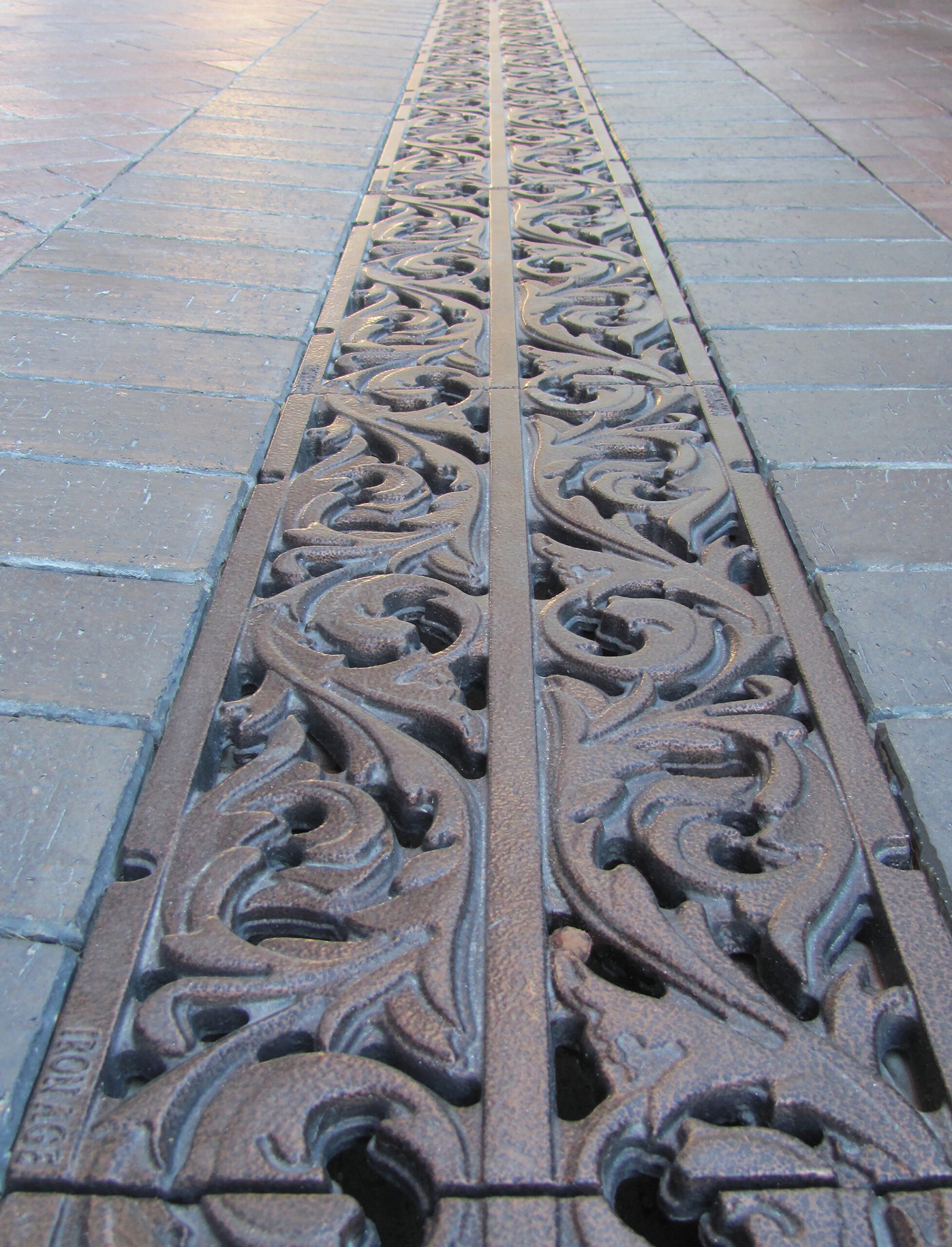

Acanthus trench 9″ x 20″ trench grate, cast ductile iron with powdercoat finish. Project Location: Hewlett, NY
Acanthus trench 9″ x 20″ trench grate, cast ductile iron with powdercoat finish. Project Location: Hewlett, NY
Acanthus trench 9″ x 20″ trench grate, cast ductile iron with powdercoat finish. Project Location: Hewlett, NY
Acanthus trench 9″ x 20″ trench grate, cast ductile iron with powdercoat finish. Project Location: Hewlett, NY
Similar Products:
View additional products featuring the Acanthus design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
