Large Grate Array Panels
Kelp Large Grate Array Panels
Conjuring images of bulbs and blades waving gently in the sea, our Kelp pattern makes a graceful yet dramatic statement. The life-like quality of this design showcases the rare dimension and depth inherent in all our cast metal products.
Select Size:
Detailed Specifications:
- Name / Design
- Kelp 24" x 48" PEDESTRIAN LOAD ONLY
- Product ID
- KEX24-48I99FW
- Dimensions
- 23.94" x 47.88" x 1.00"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 153.28
- Free Drain Area
- 5.62%
- Gallons Per Minute (GPM)
- 84.33
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
Photo Gallery:
Click image for high-res file and description

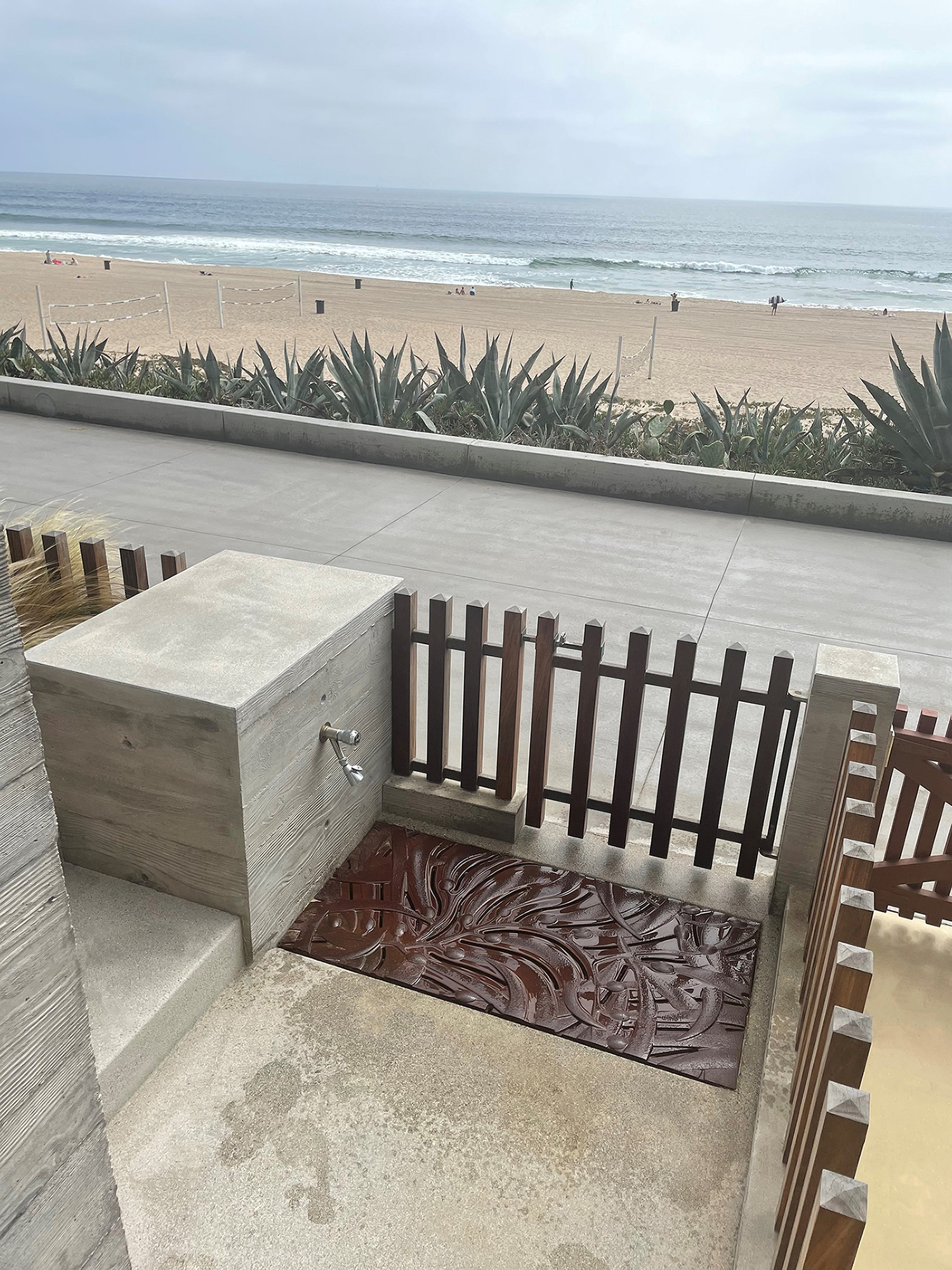

Kelp 24″ x 48″ grate, cast iron with baked-on-oil finish. Installed at the base of a beachfront residence foot bath.
Similar Products:
View additional products featuring the Kelp design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
