Trench Grates
Grid Trench Grates
When less is more, but architectural refinement and craftsmanship still matter, you can never go wrong with our classic Grid pattern. Evenly spaced, squared-off perforations create a simple, clean look that complements a wide variety of design aesthetics.
Select Size:
Detailed Specifications:
- Name / Design

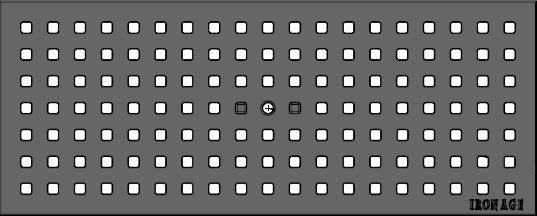

- Grid 8" x 20"
- Product ID
- GRN8-20I04
- Dimensions
- 8.00" x 20.00" x .75"
- Drain Manufacturer
-
NDS®
- Fits
-
NDS® 8" Pro Series
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 15.19
- Free Drain Area
- 11.08%
- Gallons Per Minute (GPM)
- 23.23
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
Photo Gallery:
Click image for high-res file and description

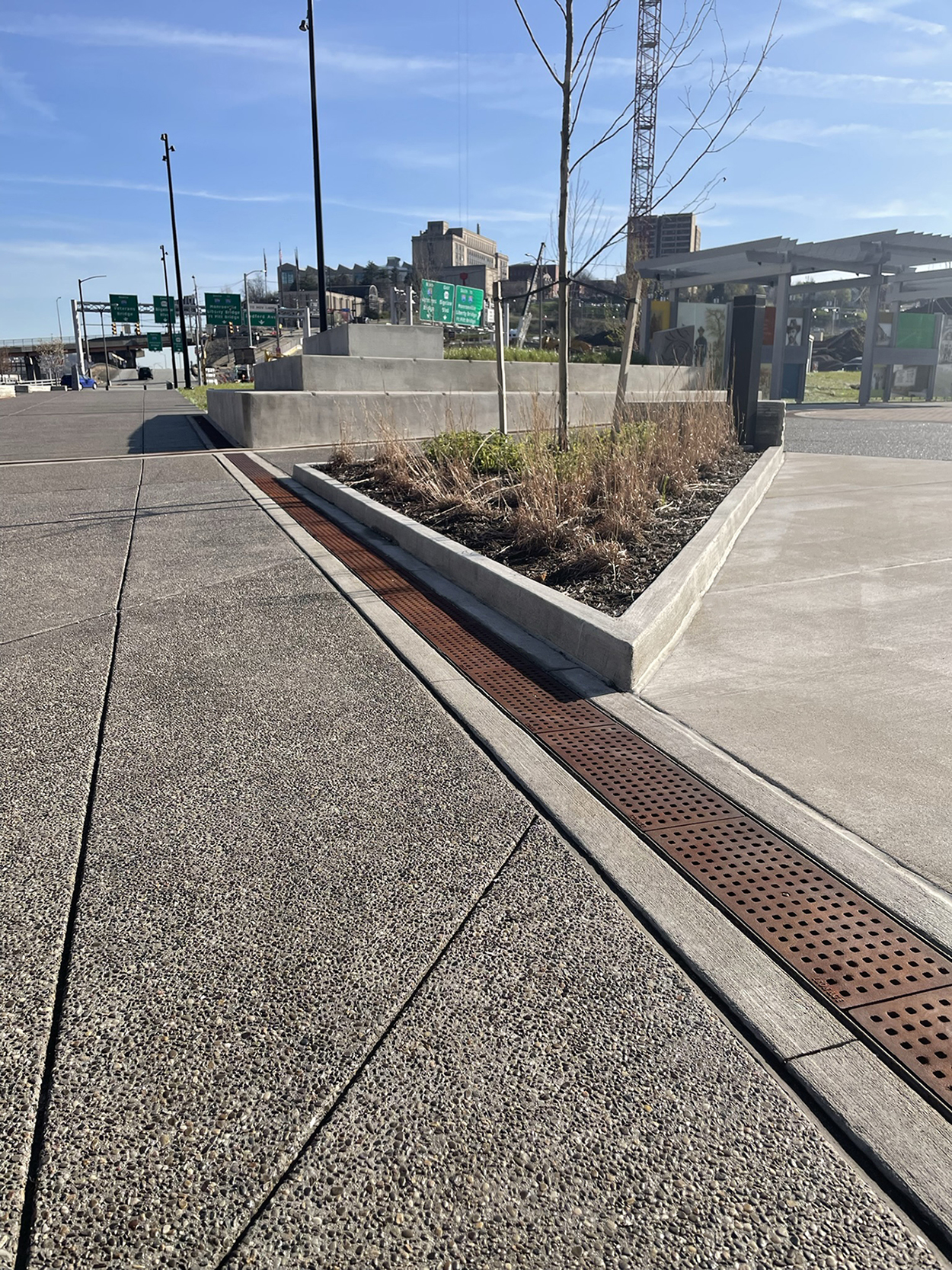

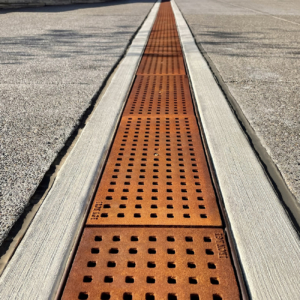

Grid 8″ x 20″ trench grate, raw cast ductile iron. DESIGN: LBA Landscape Architecture. PROJECT: Frankie Pace Park. LOCATION: Pittsburgh, PA.

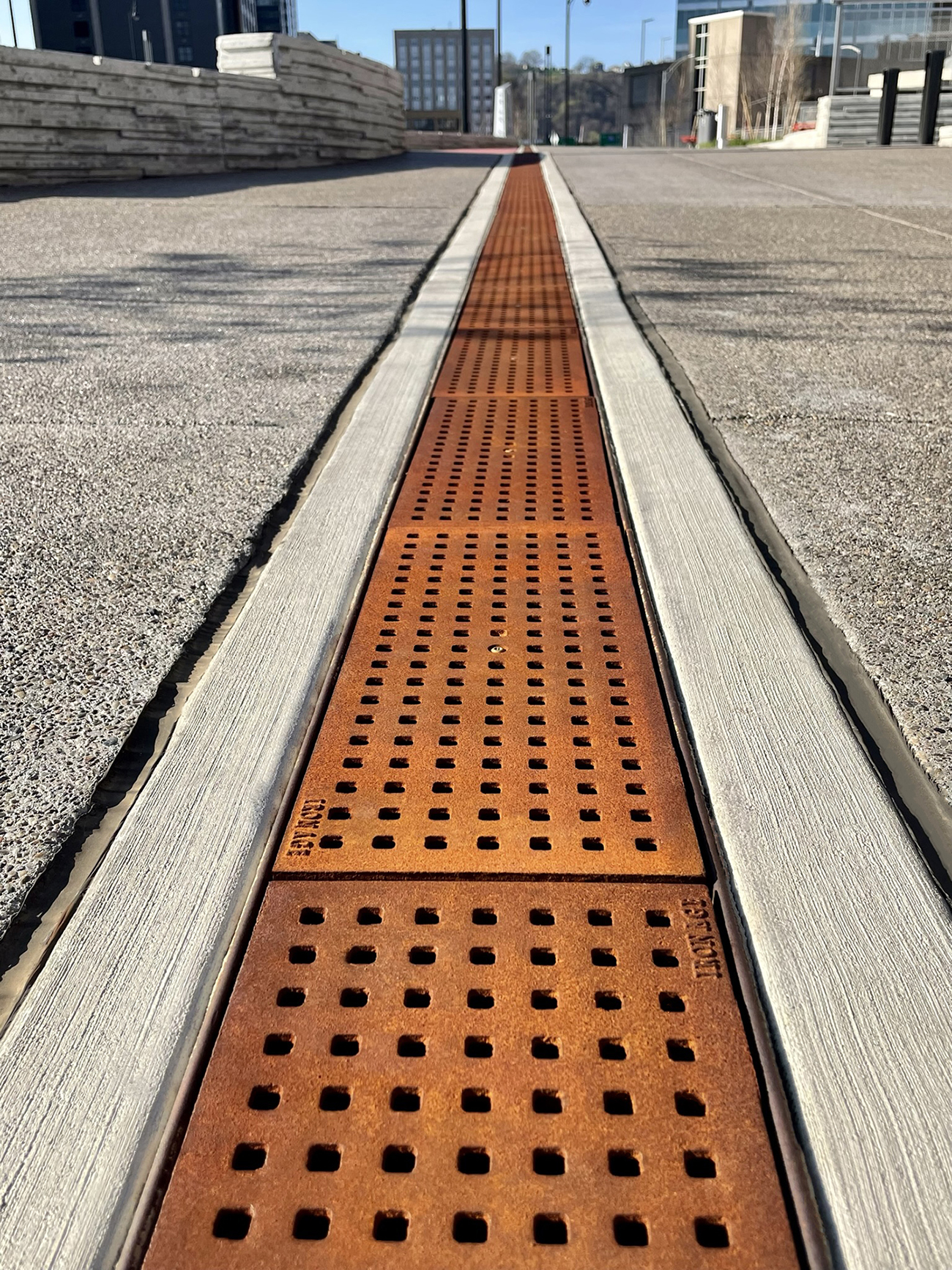

Grid 8″ x 20″ trench grate, raw cast ductile iron. DESIGN: LBA Landscape Architecture. PROJECT: Frankie Pace Park. LOCATION: Pittsburgh, PA.

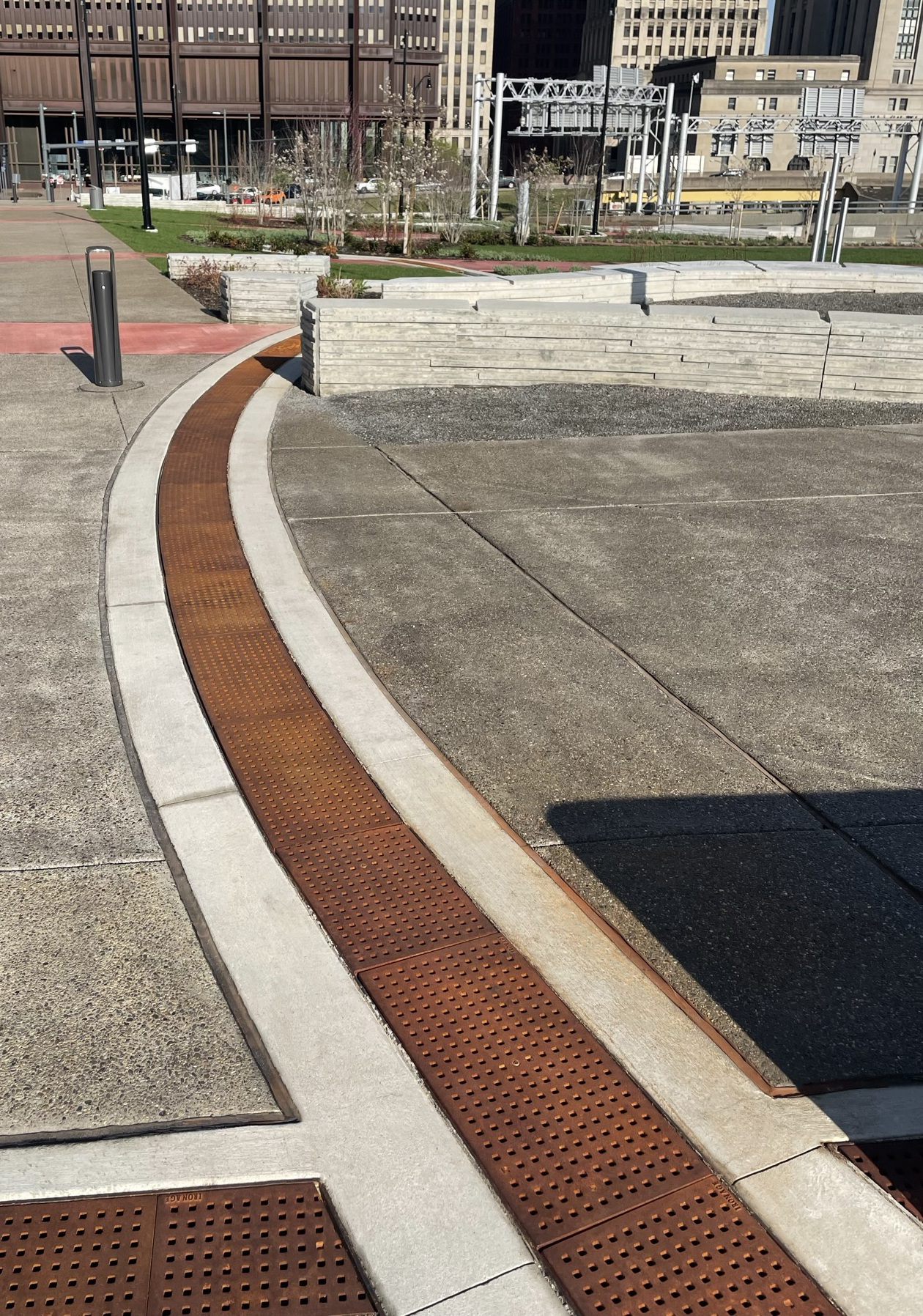

Grid 12″ x 24″ trench grate (shown adjacent to 12″ wide Grid radius trench grates), raw cast ductile iron. DESIGN: LBA Landscape Architecture. PROJECT: Frankie Pace Park. LOCATION: Pittsburgh, PA.

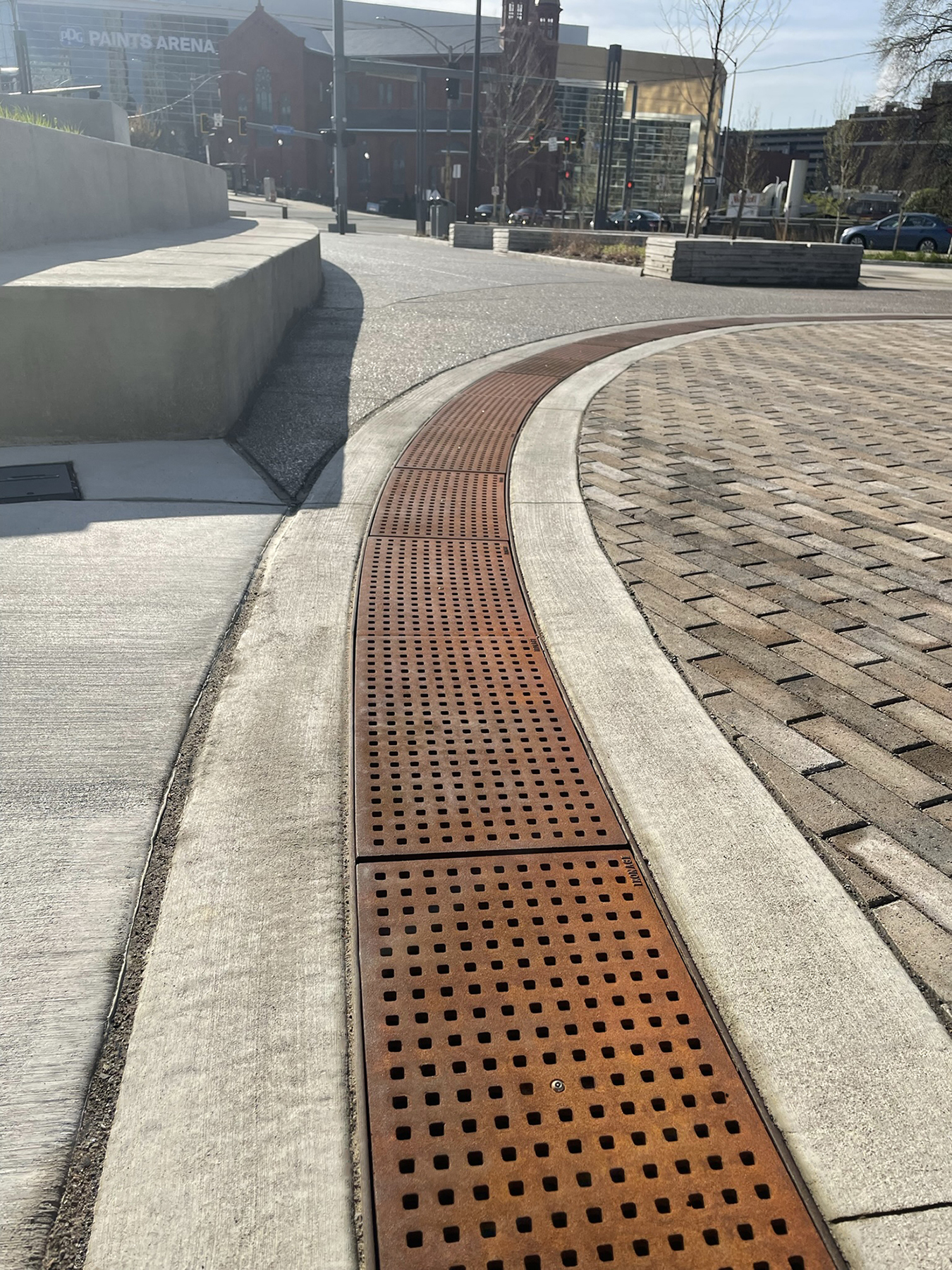

Grid 12″ x 24″ trench grate (shown adjacent to 12″ wide Grid radius trench grates), raw cast ductile iron. DESIGN: LBA Landscape Architecture. PROJECT: Frankie Pace Park. LOCATION: Pittsburgh, PA.
Similar Products:
View additional products featuring the Grid design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
