Large Grate Array Panels
Divisadero Large Grate Array Panels
With concentric circles in the center radiating outward to increasingly squared-off versions of themselves, our Divisadero pattern is a modernist take on traditional design.
Select Size:
Detailed Specifications:
- Name / Design
- Divisadero 24" x 24" Heel-Proof, PEDESTRIAN LOAD ONLY
- Product ID
- DIX24-24I99HP
- Dimensions
- 23.81" x 23.81" x 1.0"
- Fits
-
Iron Age Custom Frame
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 62.88
- Free Drain Area
- 21.03%
- Gallons Per Minute (GPM)
- 156.27
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 2-007-104
Photo Gallery:
Click image for high-res file and description

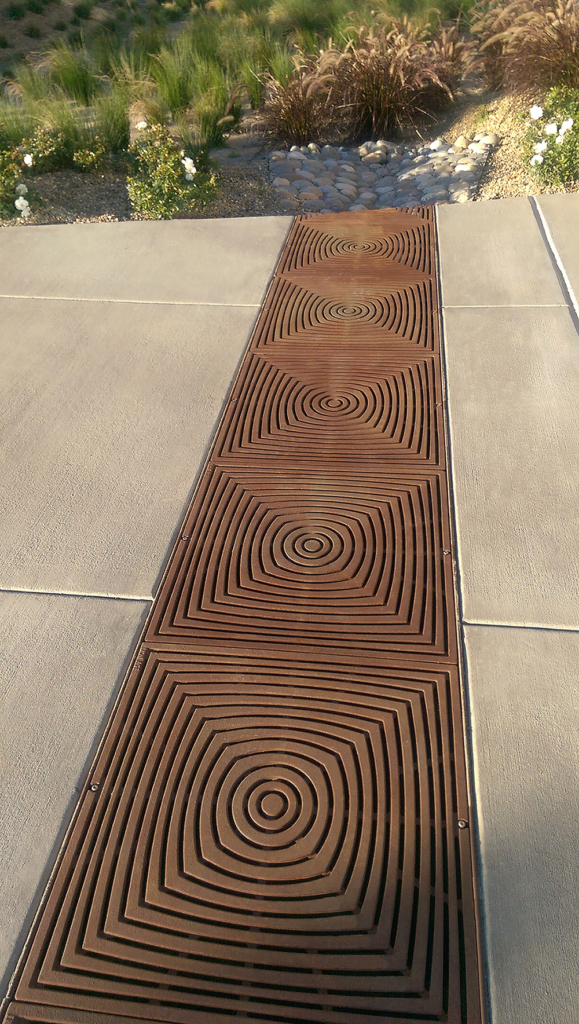

Divisadero 24″ x 24″ heel-proof grate panel, cast iron with baked-on-oil finish. Shown arrayed as trench/bioswale inlet grates. PROJECT: Britannia Cove. LOCATION: South San Francisco, CA.
Divisadero 24″ x 24″ heel-proof grate panel, cast iron with baked-on-oil finish. Shown arrayed as trench/bioswale inlet grates. PROJECT: Britannia Cove. LOCATION: South San Francisco, CA.
Divisadero 24″ x 24″ heel-proof grate panel, cast iron with baked-on-oil finish. Shown arrayed as trench/bioswale inlet grates. PROJECT: Britannia Cove. LOCATION: South San Francisco, CA.
Divisadero 24″ x 24″ heel-proof grate panel, cast iron with baked-on-oil finish. Shown arrayed as trench/bioswale inlet grates. PROJECT: Britannia Cove. LOCATION: South San Francisco, CA.
Similar Products:
View additional products featuring the Divisadero design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
