Trench Grates
Anise Trench Grates
Inspired by the lovely shape of the Star Anise spice, our new Anise pattern transforms typically boring drainage grates into something infinitely more appealing.
Select Size:
Detailed Specifications:
- Name / Design
- Anise 5" x 20" Heel-Proof
- Product ID
- ANA5-20I21HP
- Dimensions
- 4.81" x 19.56" x .81"
- Drain Manufacturer
-
ABT®ACO™Anrin™MEA®
- Fits
-
ABT® PolyDrain®
ACO™ K100, K100S, KS100
Anrin™ KE-100 Series
MEA® 1000 Series
- Material
- Cast Ductile Iron
- Standard Finish
- Raw
- Optional Finishes
-
- Baked On Oil Finish
- Powder Coat
- Weight lb(s)
- 8.60
- Free Drain Area
- 10.33%
- Gallons Per Minute (GPM)
- 12.74
- Recycled Content
- 80%
- ADA Compliant
- Yes
- Optional Material Upgrades
-
- Cast Aluminum
- Cast Bronze
- Copyright Registration No.
- VA 2-246-556
Photo Gallery:
Click image for high-res file and description

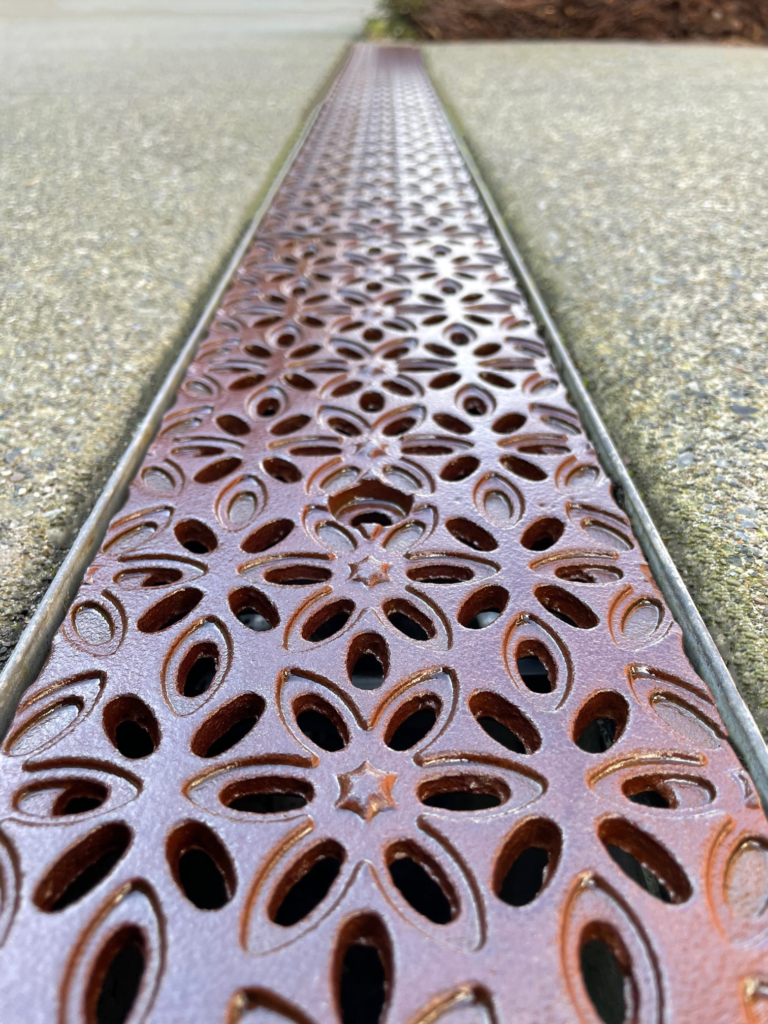

Anise 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish.

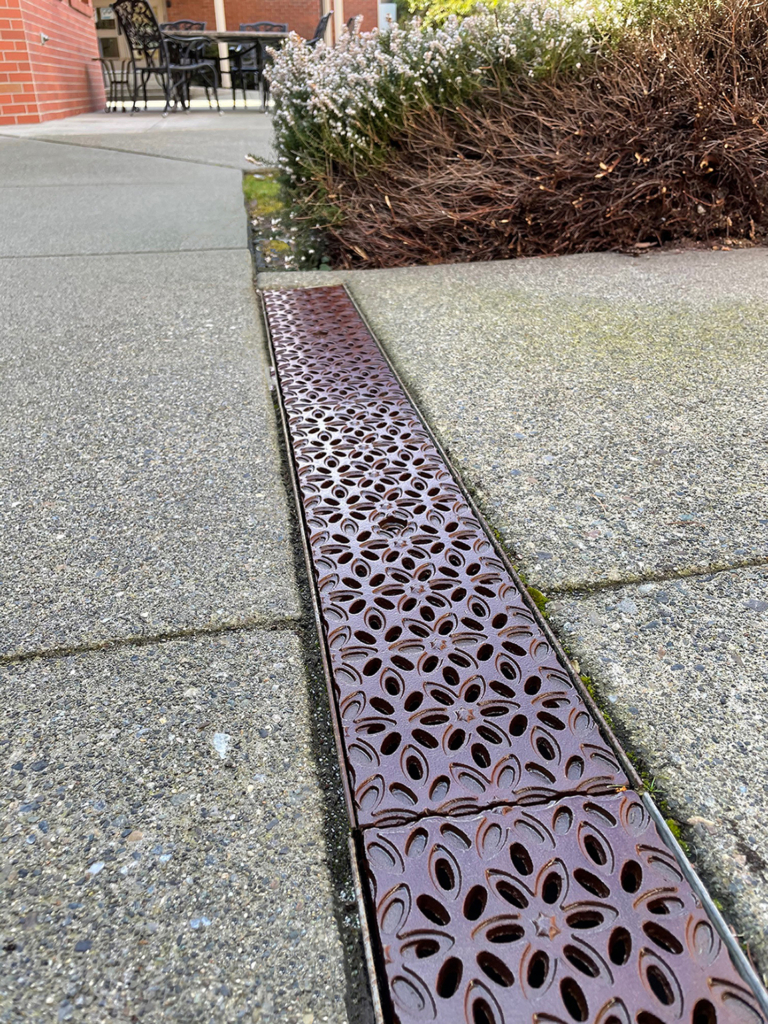

Anise 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish.
Anise 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish.
Similar Products:
View additional products featuring the Anise design
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
