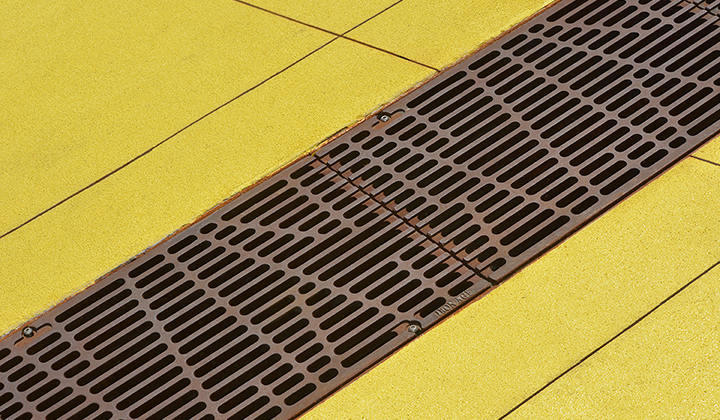

Angle Joe

Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Angle Joe 13" x 20"
Product ID	AJX13-20I99
Dimensions	13.25" x 20" x 1"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finishes	Baked On Oil Finish Powder Coat
Weight lb(s)	31.12
Free Drain Area	36.2%
Gallons Per Minute (GPM)	125.67
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-329-955

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

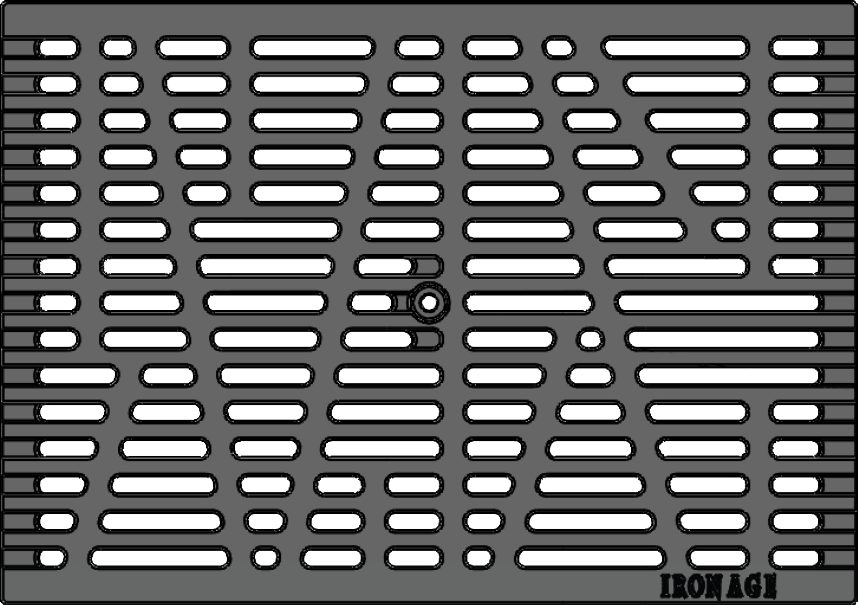

Name / Design	Angle Joe 14' x 20" Heavy Duty
Product ID	AJX14-20I99HD
Dimensions	13.75" x 19.53" x 1.5"
Drain Manufacturer	ABT®
Fits	ABT® TrenchFormer® TFX-12
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finishes	Baked On Oil Finish Powder Coat
Weight lb(s)	51.00
Free Drain Area	26.48%
Gallons Per Minute (GPM)	93.17
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Angle Joe 23" x 20" Heel Proof
Product ID	AJX23-20I99HP
Dimensions	23.47" x 19.82" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finishes	Baked On Oil Finish Powder Coat
Weight lb(s)	41.52
Free Drain Area	18.12%
Gallons Per Minute (GPM)	110.48
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Ductile Iron

Photo Gallery:

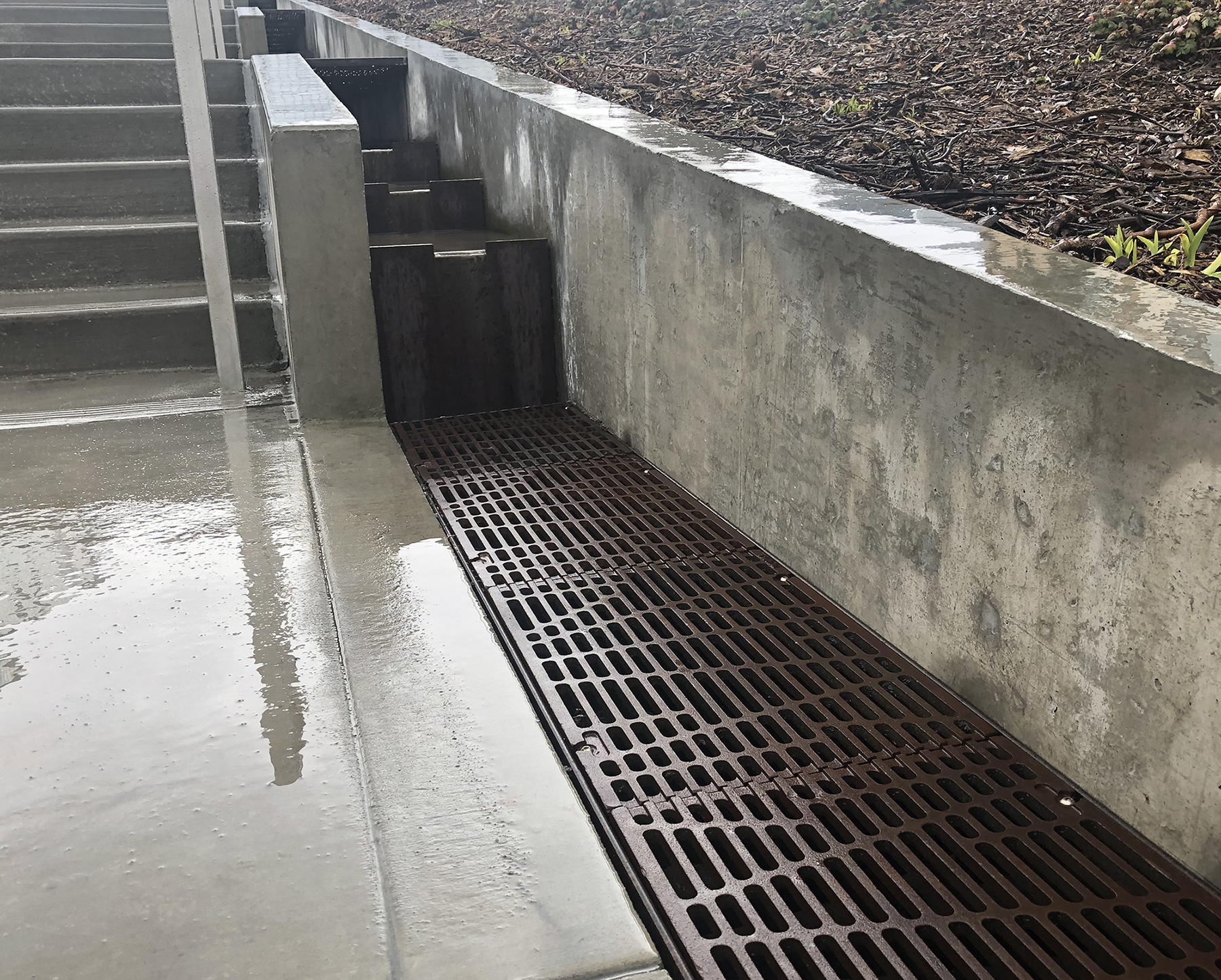

Angle Joe 13″ x 20″ trench grate, raw cast ductile iron. Landscape architect: HBB Seattle. Project: Denny Substation. LOCATION: Seattle, WA.

Download photo

Angle Joe 13″ x 20″ trench grate, raw cast ductile iron. Landscape architect: HBB Seattle. Project: Denny Substation. LOCATION: Seattle, WA.

Download photo
